GC-VRII (06374) - Scag Grass Catcher for SVRII Mower (SN: S9800001 - S9899999) GC-VRII HOOD COMPONENTS Parts Diagram

Grass Catcher for SVRII Mower

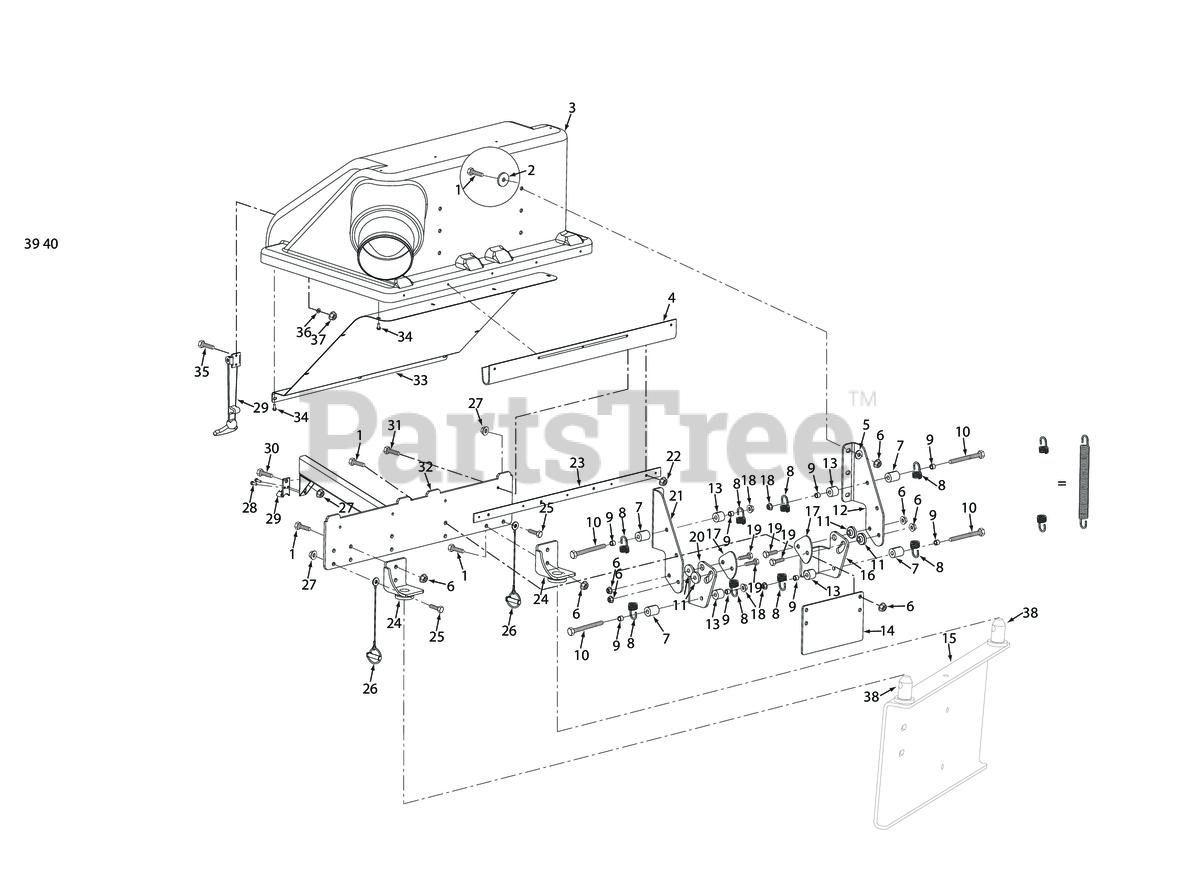

GC-VRII HOOD COMPONENTS Parts Diagram

  • Title

1

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

2

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 4 left!

0

3

Scag 462932

Hood Assembly

Note: (INCL. 485840,4,23,33,34,36)

$724.99

$

Usually ships in 2-12 days

0

4

Scag 483589

Diode (part of wire harness)

$40.99

$

Usually ships in 2-12 days

0

5

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

6

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 43886

Spacer

$7.49

$

In Stock, only 3 left!

0

8

Scag 482304

Spring, Hood Hinge

$52.99

$

In Stock, only 2 left!

0

9

Scag 43212

Spacer, Deck Assist

$4.49

$

In Stock, Qty 5

0

10

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

11

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

12

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

13

Scag 43277

SPACER, J-PULL ROD

$6.49

$

In Stock, only 1 left!

0

14

Scag 427840

Plate, Support

$11.99

$

Usually ships in 2-12 days

0

15

Scag 427790

Bag Support Plate

$77.99

$

Usually ships in 2-12 days

0

16

Scag 425875

Hinge, Lower LH

$24.99

$

Usually ships in 2-12 days

0

17

Scag 425832

Guard, GC Hinge

$6.49

$

Usually ships in 2-12 days

0

18

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

20

Scag 425876

Hinge, Lower RH

$24.99

$

Usually ships in 2-12 days

0

21

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

22

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 5

0

23

Scag 424753

Retainer, Seal

$16.99

$

Usually ships in 2-12 days

0

24

Scag 453016

Receiver, Weldment

$50.99

$

Usually ships in 2-12 days

0

25

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

26

Scag 483596

Quick Pin Assembly

$11.99

$

Usually ships in 2-12 days

0

27

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

28

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

29

Scag 482409

Latch, Hopper

Note: (Hook and Strap)

$74.99

$

In Stock, only 2 left!

0

30

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

32

Scag 452675

Frame Weldment, Bag Support

$156.99

$

Usually ships in 2-12 days

0

33

Scag 424731

Screen, GC Hood

$192.99

$

Usually ships in 2-12 days

0

34

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

35

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

36

Scag 04041-19

Flatwasher, 3/16 (.196 x .469 x .048)

$0.99

$

In Stock, Qty 5

0

37

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

38

Scag 43884

Pin, GC Locator

$30.99

$

Usually ships in 2-12 days

0

39

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0
