GC-VRII (06374) - Scag Grass Catcher for SVRII Mower (SN: S9800001 - S9899999) GC-VRII BLOWER MOUNTING COMPONENTS Parts Diagram

Grass Catcher for SVRII Mower

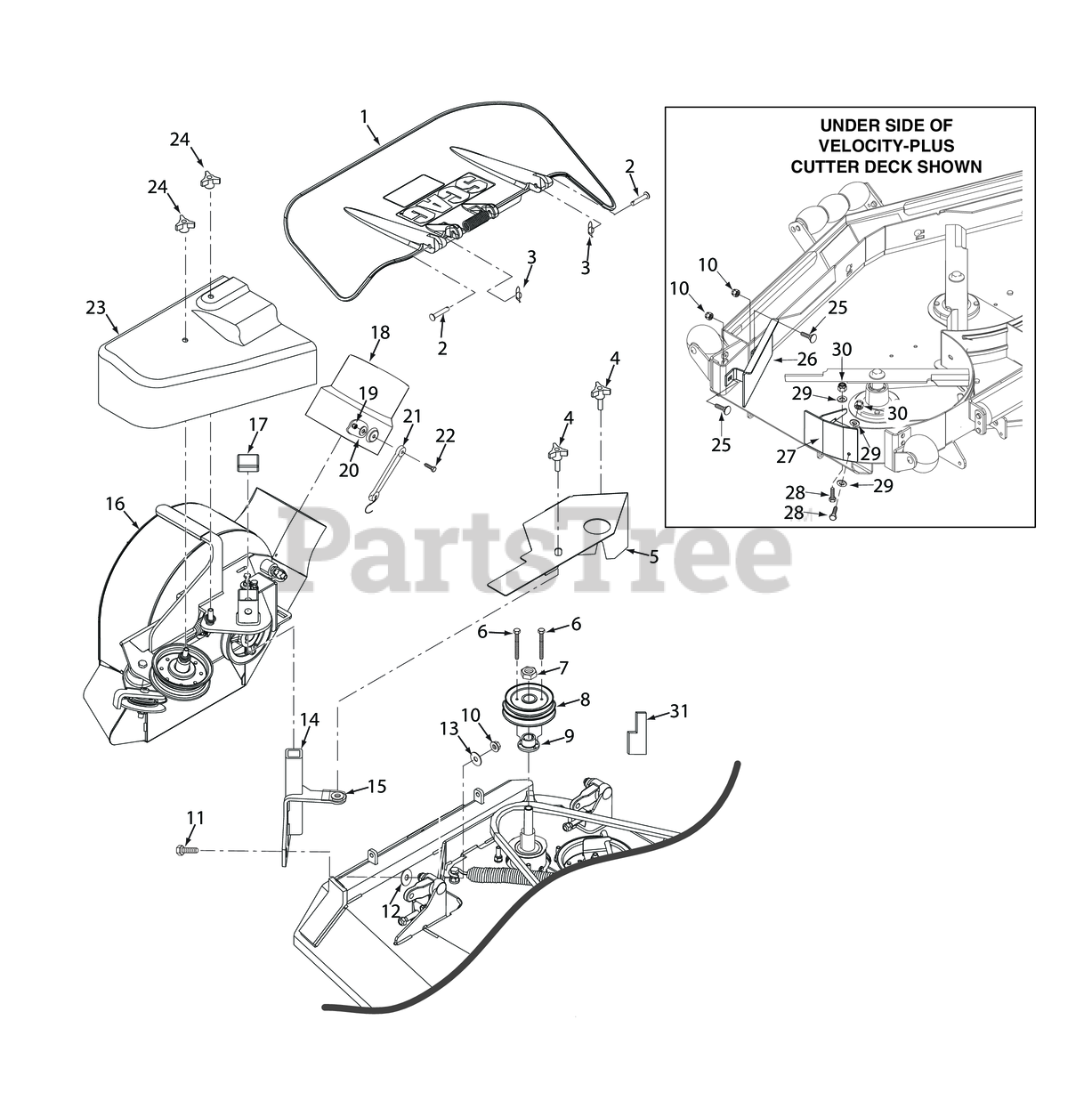

GC-VRII BLOWER MOUNTING COMPONENTS Parts Diagram

  • Title

1

Scag 461844

Discharge Chute Assembly - 48V

$66.99

$

In Stock, only 2 left!

0

1

Scag 461845

Discharge Chute Assembly - 52V

$66.99

$

In Stock, only 1 left!

0

1

Scag 461846

Discharge Chute Advantage - Large

$66.99

$

In Stock, only 1 left!

0

2

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 11

0

3

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 3 left!

0

4

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

5

Scag 427945

Belt Cover, 48GC-VRII

$21.99

$

Usually ships in 2-12 days

0

5

Scag 427819

Belt Cover, 52GC-VRII

$

$

Not available

5

Scag 427968

Belt Cover, 61GC-VRII

$28.99

$

Usually ships in 2-12 days

0

6

Scag 04001-225

Bolt, 1/4-20 x 2½" Full Thread

$0.99

$

Usually ships in 2-12 days

0

7

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 483283

Pulley, Double Groove

$62.99

$

In Stock, only 1 left!

0

8

Scag 486143

Pulley, Double Groove (52)

$122.99

$

Usually ships in 2-12 days

0

8

Scag 486144

Pulley, Double Groove (61)

$120.99

$

Usually ships in 2-12 days

0

9

Scag 48926

Hub, Tapered 1-1/8" Bore

$30.99

$

In Stock, Qty 20+

0

10

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

12

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

14

Scag 463133

Mounting Post Assembly, Blower - 48GC-VRII (INCL.15)

Note: (INCL.15)

$66.99

$

Usually ships in 2-12 days

0

14

Scag 463129

Mounting Post Assembly, Blower - 52GC-VRII (INCL.15)

Note: (INCL.15)

$

$

Not available

14

Scag 463137

Mounting Post Assembly, Blower - 61GC-VRII (INCL.15)

Note: (INCL.15)

$122.99

$

Usually ships in 2-12 days

0

15

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

16

Scag 493216

Blower Assembly, 48/52GC-VRII

$

$

Currently unavailable

16

Scag 493218

Blower Assembly, 61GC-VRII

$

$

Currently unavailable

17

Scag 482300

Cap, Square Vinyl

$3.49

$

In Stock, only 1 left!

0

18

Scag 461387

Adapter, Blower GC-STC,

Note: (INCL.19,20,21,22)

$117.99

$

Usually ships in 2-12 days

0

19

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

20

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

21

Scag 48137-04

Rubber Strap 7-3/4"

$9.99

$

In Stock, only 1 left!

0

22

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

23

Scag 486348

Belt Cover, 48GC-VRII

$83.99

$

Usually ships in 2-12 days

0

23

Scag 486349

Belt Cover, 52GC-VRII

$85.99

$

Usually ships in 2-12 days

0

23

Scag 486350

Belt Cover, 61GC-VRII

$85.99

$

In Stock, only 1 left!

0

24

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 19

0

25

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

26

Scag 453056

Baffle Weldment, GC-48/52V Blower

$57.99

$

Usually ships in 2-12 days

0

26

Scag 453057

Baffle Weldment, GC-61V Blower

$75.99

$

Usually ships in 2-12 days

0

27

Scag 424683

Baffle, Turbo 48" Deck

$45.99

$

Usually ships in 2-12 days

0

27

Scag 424211

Baffle, Turbo 52" Deck

$70.99

$

Usually ships in 2-12 days

0

27

Scag 424212

Baffle, Turbo - 61" Deck

$70.99

$

In Stock, only 2 left!

0

28

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

29

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

30

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

31

Scag 428125

Pulley Height Tool

$2.49

$

Usually ships in 2-12 days

0
