GC-VRII (06374) - Scag Grass Catcher for SVRII Mower (SN: S9800001 - S9899999) GC-VRII BLOWER HOUSING ASSEMBLY Parts Diagram

Grass Catcher for SVRII Mower

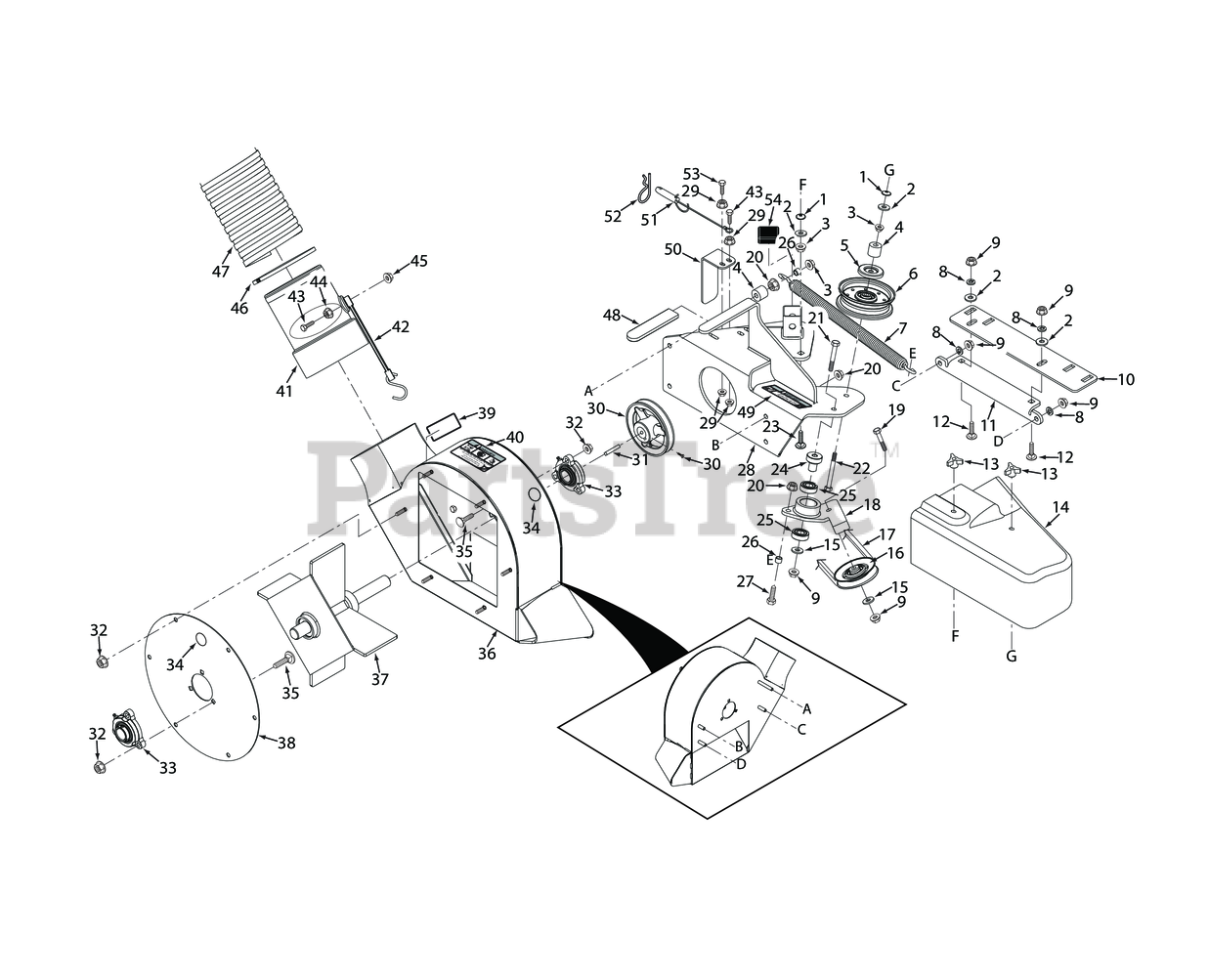

GC-VRII BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

2

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

4

Scag 43277

SPACER, J-PULL ROD

$6.49

$

In Stock, Qty 11

0

5

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 20+

0

6

Scag 483209

Pulley, Idler 4" Dia. - 61" & 72"

$52.99

$

In Stock, only 1 left!

0

7

Scag 481522

Spring, Helper (61" Cutter Deck Only)

$32.99

$

In Stock, Qty 6

0

8

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 427387

Plate, Blower Catch

$4.99

$

Usually ships in 2-12 days

0

11

Scag 423296

Plate, Catch Mounting

$25.99

$

Usually ships in 2-12 days

0

12

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

13

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 20+

0

14

Scag 486348

Belt Cover, 48GC-VRII

$83.99

$

Usually ships in 2-12 days

0

14

Scag 486349

Belt Cover, 52GC-VRII

$85.99

$

Usually ships in 2-12 days

0

14

Scag 486350

Belt Cover, 61GC-VRII

$85.99

$

In Stock, only 1 left!

0

15

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

16

Scag 483189

Pulley, 3-1/2" O.D., GC-STT 52"

$46.99

$

In Stock, only 4 left!

0

17

Scag 482379

Belt, GC-STWC 61"

Note: (48 and 52)

$53.99

$

In Stock, Qty 6

0

17

Scag 483182

Belt, GC-STC-61V / STCII-61V

Note: (61)

$44.99

$

In Stock, Qty 19

0

18

Scag 493215

Idler Arm Assembly, 48/52GC-VRII (INCL. 9,15,16,17,19,20,25,26,27)

Note: (INCL. 9,15,16,17,19,20,25,26,27)

$164.99

$

Usually ships in 2-12 days

0

18

Scag 493217

Idler Arm Assembly, 61GC-VRII (INCL. 9,15,16,17,19,20,25,26,27)

Note: (INCL. 9,15,16,17,19,20,25,26,27)

$166.99

$

Usually ships in 2-12 days

0

19

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2" Full Thread

$2.49

$

In Stock, only 1 left!

0

23

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

24

Scag 43575

Pivot, Idler - 61" & 72"

$26.99

$

In Stock, Qty 5

0

25

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

26

Scag 43212

Spacer, Deck Assist

$4.49

$

In Stock, Qty 5

0

27

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8

$0.99

$

In Stock, Qty 9

0

28

Scag 461682

Blower Mounting Frame w/ Decal

$232.99

$

Usually ships in 2-12 days

0

29

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

30

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

Note: (INCL.04012-04 Setscrews)

$62.99

$

In Stock, Qty 5

0

31

Scag 04063-06

KEY 1/4 X 1/4 X 1 1/2"(FOR 1" CRANKSHAFT

$1.49

$

In Stock, Qty 12

0

32

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

33

Scag 483034

Bearing Assembly

Note: (INCL. Bearing Housing and Bearing)

$38.99

$

In Stock, Qty 9

0

34

Scag 484696

Decal, Grease Point

$

$

Not available

35

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 17

0

36

Scag 461342

Blower Housing Weldment w/Decals

$380.99

$

Usually ships in 2-12 days

0

37

Scag 461795

FAN WLMT W/ BRGS, 6"

Note: (INCL 32,33,35)

$174.99

$

Usually ships in 2-12 days

0

38

Scag 421319

COVER, BLOWER HOUSING

$50.99

$

In Stock, only 1 left!

0

39

Scag 483393

Decal, Rotating Blower

$

$

Not available

40

Scag 483391

Decal, Danger

$

$

Not available

41

Scag 461387

Adapter, Blower GC-STC,

$117.99

$

Usually ships in 2-12 days

0

42

Scag 48137-04

Rubber Strap 7-3/4"

$9.99

$

In Stock, only 3 left!

0

43

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

44

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

45

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

46

Scag 48136-18

Clamp, 6-1/2"

$11.99

$

Usually ships in 2-12 days

0

47

Scag 48135-59

Hose, 6" x 36" Long

$245.99

$

Usually ships in 2-12 days

0

48

Scag 481428

Grip, Deck Latch Lever

$4.49

$

Usually ships in 2-12 days

0

49

Scag 483402

Decal, Warning - Belt Cover

$3.99

$

In Stock, Qty 5

0

50

Scag 427331

Belt Cover

$15.99

$

Usually ships in 2-12 days

0

51

Scag 04067-10

Pin, Ring 1/2" x 2-1/4"

$6.99

$

In Stock, only 3 left!

0

52

Scag 04062-04

Hair Pin Cotter, .177" x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

53

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

54

Scag 482300

Cap, Square Vinyl

$3.49

$

In Stock, only 1 left!

0
