GC-SZL-SFZ-SPZ - Scag Fabric 2-Bag Grass Catcher (SN: L0200001 - L0299999) GC-SZL/SFZ/SPZ Hood And Discharge Assembly Parts Diagram

Fabric 2-Bag Grass Catcher

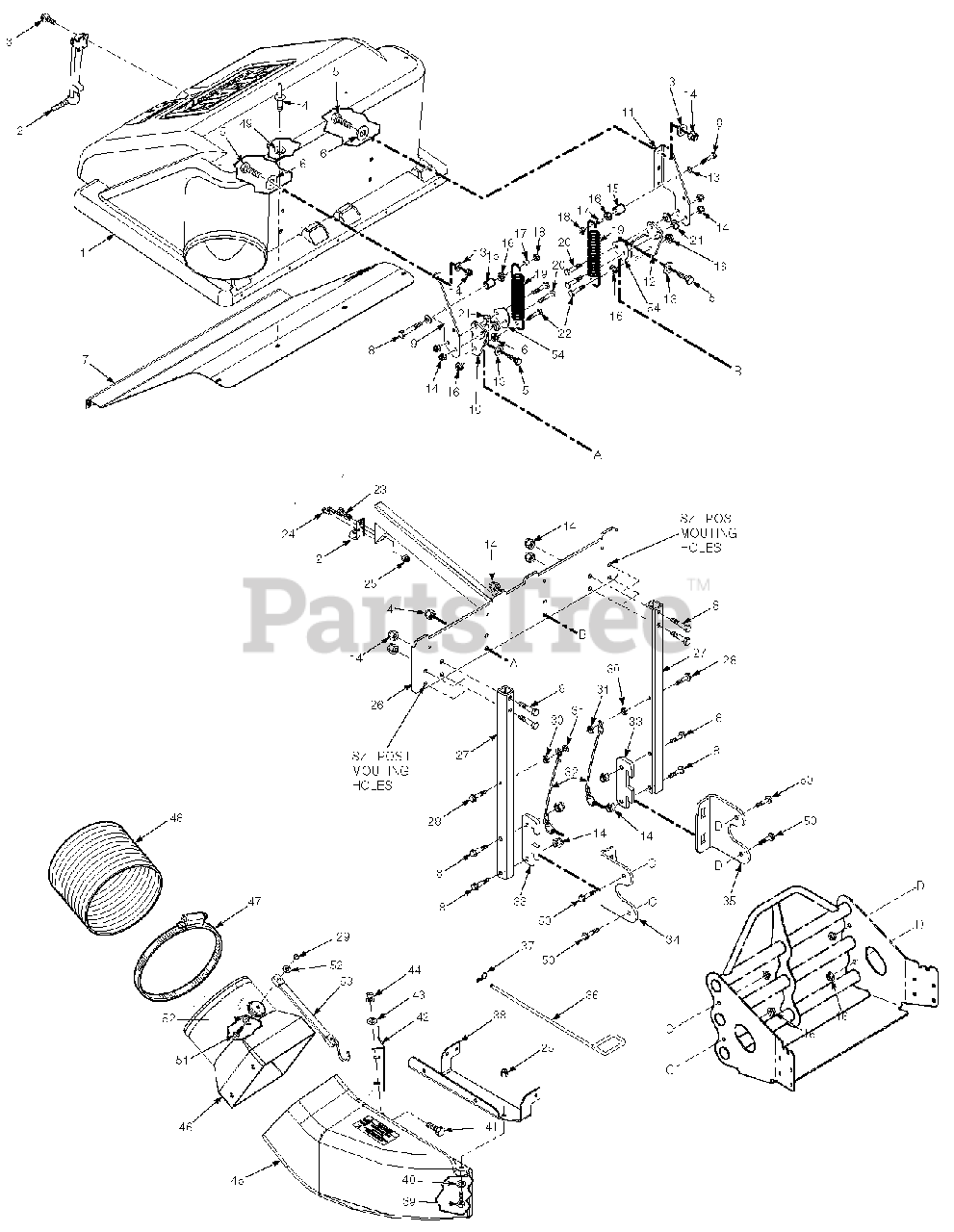

GC-SZL/SFZ/SPZ Hood And Discharge Assembly Parts Diagram

  • Title

1

Scag 462782

Hood Assembly

Note: (incl. screen & seal)

$866.99

$

Usually ships in 2-12 days

0

2

Scag 482409

Latch

$74.99

$

In Stock, Qty 7

0

3

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 04041-09

Flatwasher, 3/8-.193 x .496 x .048

$2.99

$

Usually ships in 2-12 days

0

3

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

4

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

6

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x 7 Ga.

$1.99

$

In Stock, Qty 20+

0

7

Scag 424731

Screen, GC Hood

$192.99

$

Usually ships in 2-12 days

0

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

10

Scag 425829

Hinge, Lower RH

$

$

Currently unavailable

11

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

12

Scag 425828

Hinge, Lower LH

$

$

Currently unavailable

13

Scag 04041-01

Flatwasher, 3/8-391 x .938 x .105

$

$

Currently unavailable

14

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 43277

Spacer

$6.49

$

In Stock, Qty 11

0

16

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

18

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 482304

Spring

$52.99

$

In Stock, only 2 left!

0

20

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

21

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

22

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, only 4 left!

0

23

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04090-03

Pop Rivet, 3/16 x .402

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 451959

Frame Weldment, Bag Support
(Superseded to 452675)

$156.99

$

Usually ships in 2-12 days

0

27

Scag 424750

Tube, Grass Catcher Mount

$83.99

$

Usually ships in 2-12 days

0

28

Scag 04001-03

Bolt, Hex Head 1/4-20 x 2"

$0.99

$

In Stock, Qty 8

0

29

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

30

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

31

Scag 04021-02

Nut, Center Lock 1/4-20

$0.99

$

In Stock, Qty 5

0

32

Scag 483596

Quick Pin Assembly

$11.99

$

Usually ships in 2-12 days

0

33

Scag 424752

Latch, GC

$12.99

$

In Stock, Qty 6

0

34

Scag 424751

Bracket, GC Mount RH

$22.99

$

Usually ships in 2-12 days

0

35

Scag 424749

Bracket, GC Mount LH

$27.99

$

Usually ships in 2-12 days

0

36

Scag 44166

Latch Pin, GC Chute

$21.99

$

Usually ships in 2-12 days

0

37

Scag 04062-02

Hair Pin Cotter

$0.99

$

In Stock, Qty 20+

0

38

Scag 424915

Bracket, GC Boot - 36" Deck

$86.99

$

Usually ships in 2-12 days

0

38

Scag 424734

Bracket, GC Boot - 48", 52" & 61" Deck

$20.99

$

Usually ships in 2-12 days

0

39

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

41

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

42

Scag 424754

Baffle, Boot Deflector - 36" Deck

$43.99

$

Usually ships in 2-12 days

0

42

Scag 424735

Baffle, Boot Deflector - 48" Deck

$43.99

$

Usually ships in 2-12 days

0

42

Scag 424754

Baffle, Boot Deflector - 52" Deck

$43.99

$

Usually ships in 2-12 days

0

42

Scag 424348

Baffle, Boot Deflector - 61" Deck

$15.99

$

Usually ships in 2-12 days

0

43

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

44

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

45

Scag 462048

Boot Assembly

$285.99

$

Usually ships in 2-12 days

0

46

Scag 461723

Adapter w/Strap

$165.99

$

Usually ships in 2-12 days

0

47

Scag 48136-02

Clamp, 8.62" Max Dia.

$9.99

$

Usually ships in 2-12 days

0

48

Scag 48135-09

Hose. 8" x 53"

$225.99

$

Usually ships in 2-12 days

0

49

Scag 04041-19

Flatwasher, 3/16-.196 x .469 x .048

$0.99

$

In Stock, Qty 5

0

50

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

51

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

52

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

53

Scag 48137-04

Rubber Strap

$9.99

$

In Stock, only 3 left!

0

54

Scag 425832

Guard, Hinge

$6.49

$

Usually ships in 2-12 days

0
