GC-SZL-SFZ-SPZ (06375) - Scag Fabric 2-Bag Grass Catcher (SN: T0200001 - T0299999) GC-SZL/SFZ/SPZ CUTTER DECK AND FRONT WEIGHT COMPONENTS Parts Diagram

Fabric 2-Bag Grass Catcher

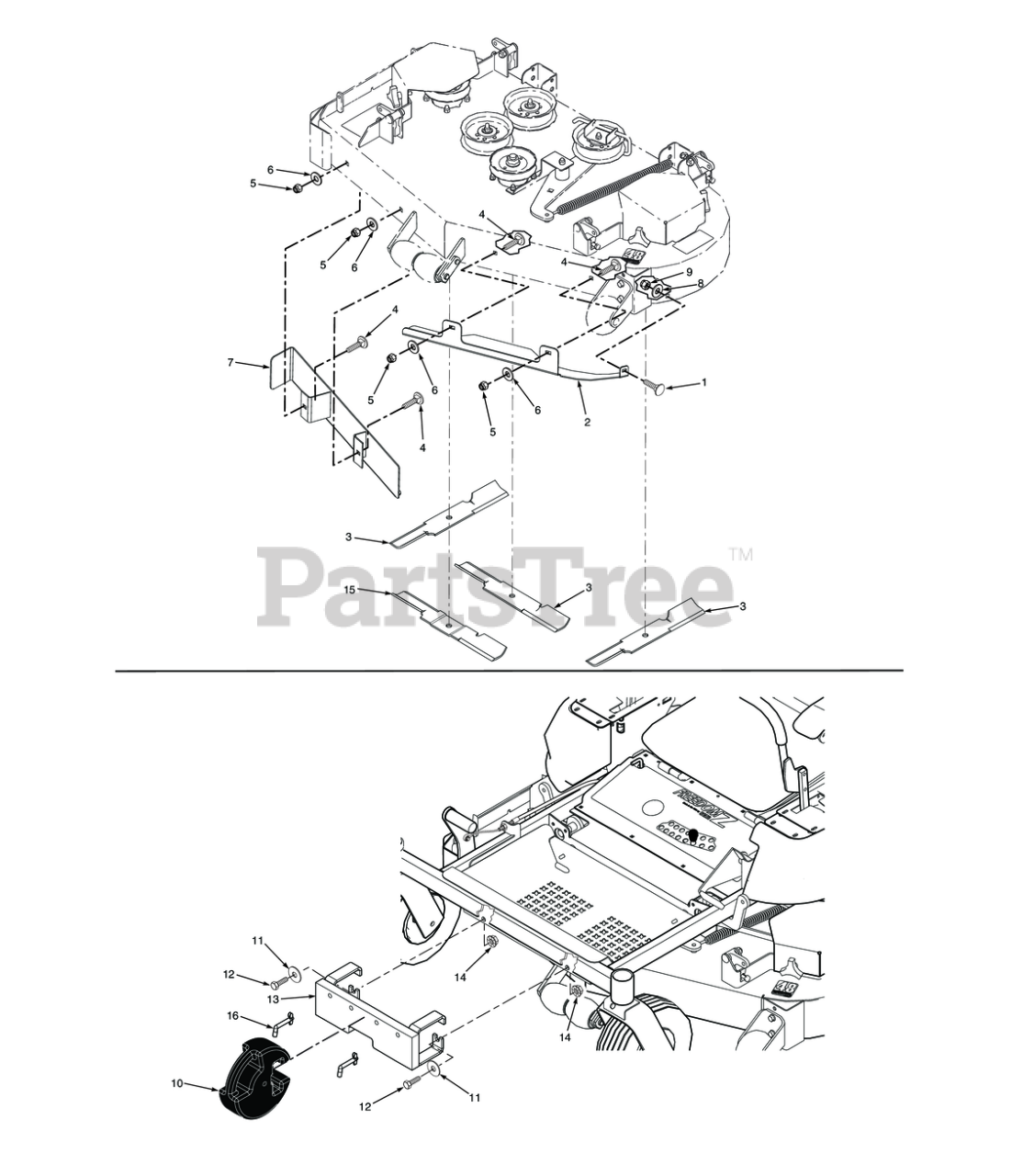

GC-SZL/SFZ/SPZ CUTTER DECK AND FRONT WEIGHT COMPONENTS Parts Diagram

  • Title

1

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

2

Scag 428853

Baffle, LH - 42" Deck

$

$

Currently unavailable

2

Scag 424743

Baffle, LH - 48" Deck

$35.99

$

Usually ships in 2-12 days

0

2

Scag 424745

Baffle, LH - 52" Deck

$88.99

$

Usually ships in 2-12 days

0

2

Scag 425267

Baffle, LH - 61" Deck

$48.99

$

In Stock, only 1 left!

0

3

Scag 481711

Cutter Blade 18" Hi Lift (marbane)

$40.99

$

In Stock, only 3 left!

0

3

Scag 487117

Cutter Blade, High Lift (42" Deck)

$43.99

$

Usually ships in 0 days

0

3

Scag 481710

Cutter Blade 16-1/2" Hi Lift (marbane)

$40.99

$

Usually ships in 2-12 days

0

3

Scag 481711

Cutter Blade 18" Hi Lift (marbane)

$40.99

$

In Stock, only 3 left!

0

3

Scag 481712

Cutter Blade, High Lift (61" Deck)

$51.99

$

Usually ships in 2-12 days

0

4

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

7

Scag 452003

Baffle Weldment,RH - 36" Deck

$122.99

$

Usually ships in 2-12 days

0

7

Scag 453317

Baffle Weldment, RH - 42" Deck

$

$

Currently unavailable

7

Scag 451956

Baffle Weldment, RH - 48" Deck

$156.99

$

Usually ships in 2-12 days

0

7

Scag 451958

Baffle, Weldment, RH - 52" Deck

$121.99

$

Usually ships in 2-12 days

0

7

Scag 452108

Baffle, Weldment, RH - 61" Deck

$98.99

$

In Stock, only 1 left!

0

8

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0

10

Scag 484758

Weight

$189.99

$

Usually ships in 2-12 days

0

11

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

13

Scag 452419

Support Weldment, Weight Mounting

$232.99

$

Usually ships in 2-12 days

0

14

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

15

Scag 483655

Cutter Blade, Cross - 36" & 52" Deck

$32.99

$

Usually ships in 2-12 days

0

15

Scag 487118

Cutter Blade, Cross - 42" Deck

$50.99

$

Usually ships in 0 days

0

15

Scag 483654

Cutter Blade, Cross - 48" Deck

$31.99

$

Usually ships in 2-12 days

0

15

Scag 484021

Cutter Blade, Cross - 61" Deck

$33.99

$

Usually ships in 2-12 days

0

16

Scag 485172

Pin, Weight Retention

$16.99

$

Usually ships in 2-12 days

0
