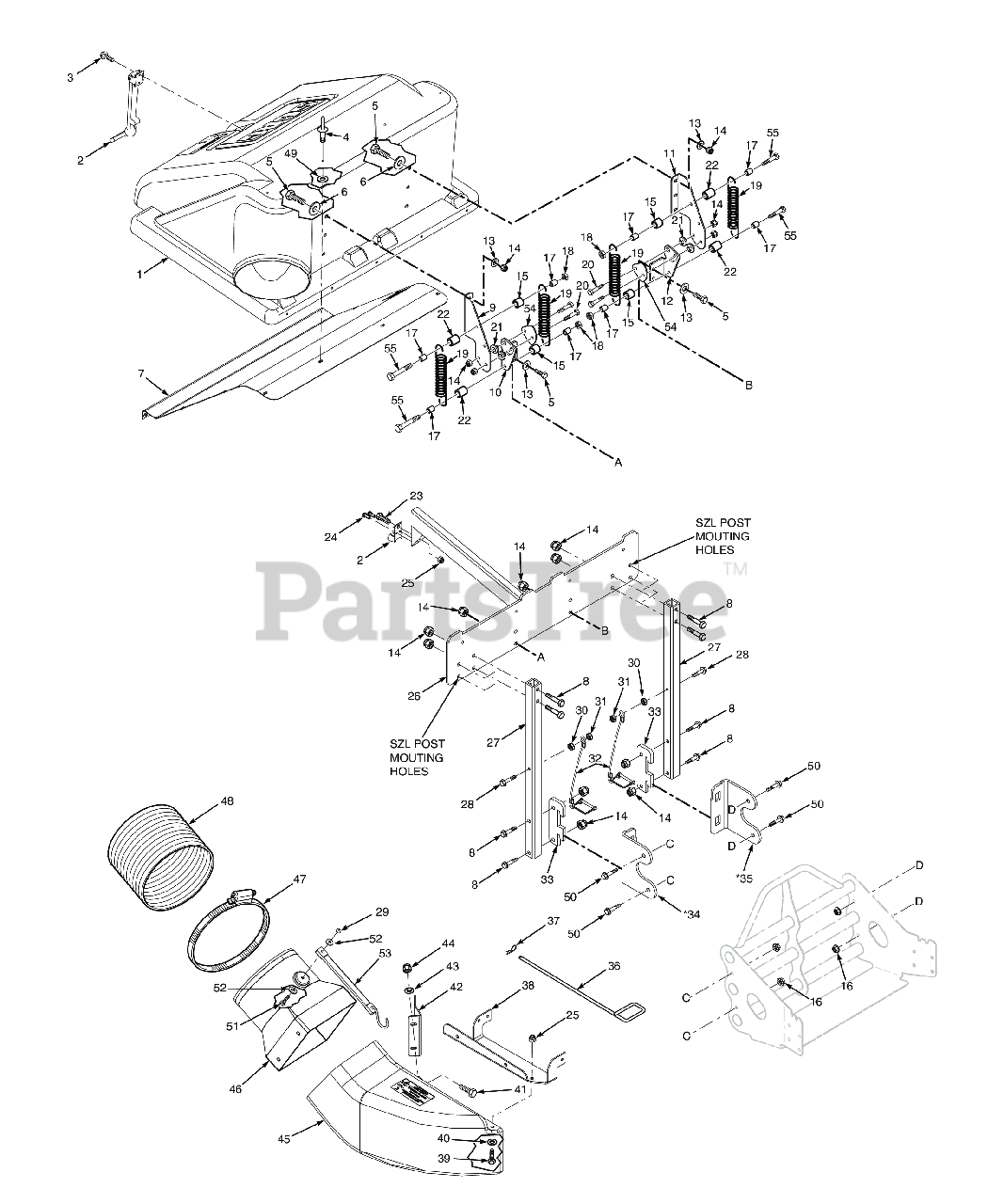

Scag GC-SZL-SFZ-SPZ (06333) - Scag Fabric 2-Bag Grass Catcher (SN: P3100001 - P3199999) GC-SZL/SFZ/SPZ HOOD AND DISCHARGE ASSEMBLY Parts Lookup with Diagrams

1

Scag 462782

Hood Assembly

$866.99

$

Usually ships in 2-12 days

2

Scag 482409

Latch, Hopper

$74.99

$

In Stock, only 2 left!

3

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

3

Scag 04041-09

Flatwasher, 3/8-.196 x .496 x .048

$2.99

$

Usually ships in 2-12 days

3

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

4

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

6

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 4 left!

7

Scag 424731

Screen, GC Hood

$192.99

$

Usually ships in 2-12 days

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

9

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

10

Scag 425876

Hinge, Lower RH

$24.99

$

Usually ships in 2-12 days

11

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

12

Scag 425875

Hinge, Lower LH

$24.99

$

Usually ships in 2-12 days

13

Scag 04041-01

Flatwasher, 3/8-.391 x .938 x .105

$

Currently unavailable 

14

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

15

Scag 43277

SPACER, J-PULL ROD

$6.49

$

In Stock, only 1 left!

16

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

17

Scag 43212

Spacer, Deck Assist

$4.49

$

In Stock, Qty 5

18

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

19

Scag 482304

Spring, Hood Hinge

$52.99

$

In Stock, only 2 left!

20

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

21

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

22

Scag 43886

Spacer

$7.49

$

In Stock, only 3 left!

23

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

24

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

25

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

26

Scag 452675

Frame Weldment, Bag Support

$156.99

$

Usually ships in 2-12 days

27

Scag 424750

Tube, Grass Catcher Mount

$83.99

$

Usually ships in 2-12 days

28

Scag 04001-03

Bolt, Hex Head 1/4-20 x 0.63"

$0.99

$

In Stock, Qty 8

29

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

30

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

31

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 5

32

Scag 485859

Snap Pin Assembly w/Lanyard

$24.99

$

Usually ships in 2-12 days

33

Scag 424752

Latch, GC-SFZ

$12.99

$

In Stock, Qty 6

34

Scag 424751

Bracket, GC Mount RH

Note: GC Mounting Brackets for the SZL36, p/n 424751 are mounted on the LH side of the machine and p/n 424749 are mounted on the RH side of the machine.

$22.99

$

Usually ships in 2-12 days

35

Scag 424749

Bracket, GC Mount LH

Note: GC Mounting Brackets for the SZL36, p/n 424751 are mounted on the LH side of the machine and p/n 424749 are mounted on the RH side of the machine.

$27.99

$

Usually ships in 2-12 days
