GC-STWC-61 - Scag Grass Catcher (SN: E0100001 - E0199999) Bucket Support Components (Upper) Parts Diagram

Grass Catcher

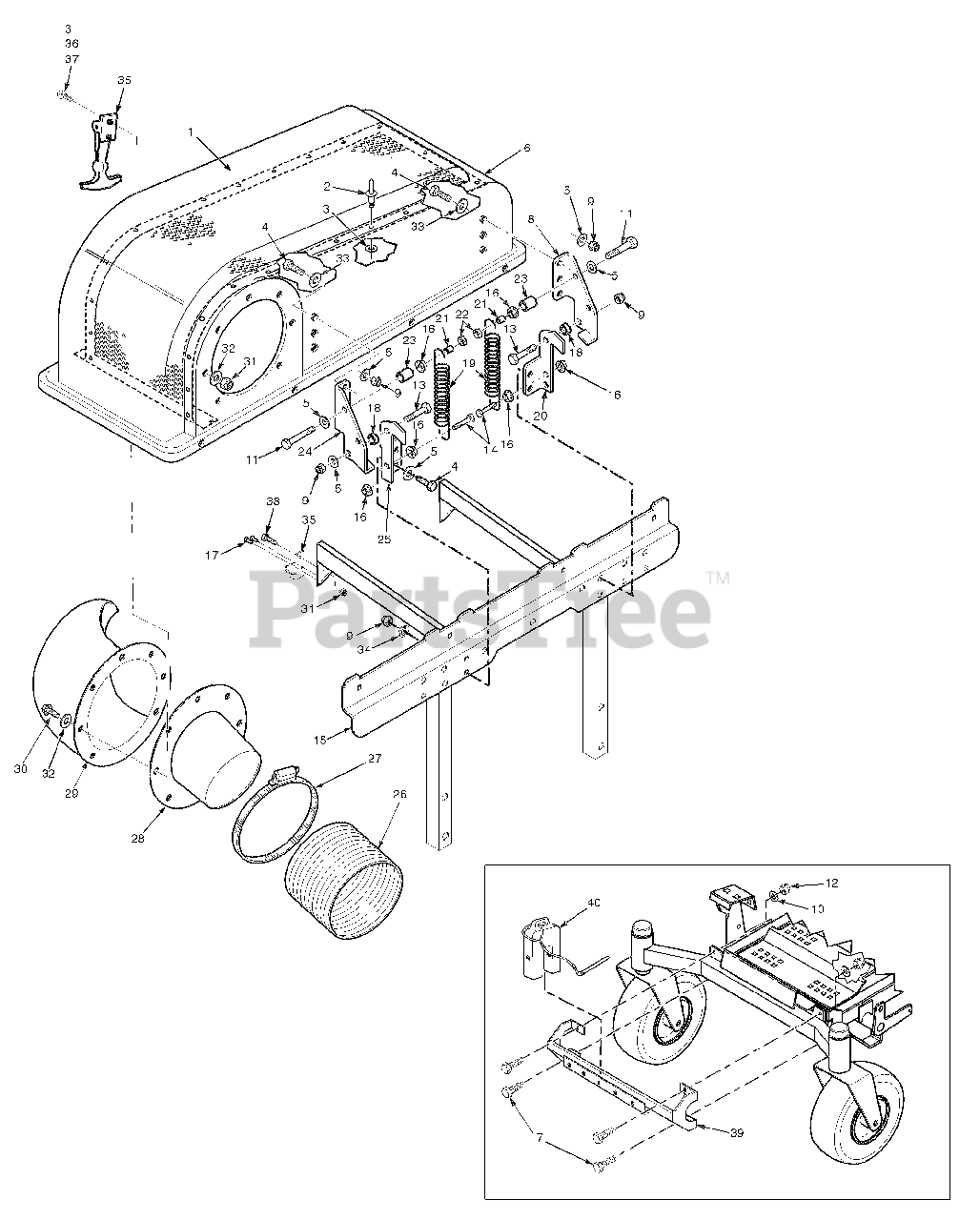

Bucket Support Components (Upper) Parts Diagram

  • Title

1

Scag 423302

Screen, Catcher Hood

$200.99

$

Usually ships in 2-12 days

0

2

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

3

Scag 04041-19

Flatwasher, 3/16-.196 x .469 x .048

$0.99

$

In Stock, Qty 5

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

5

Scag 04041-01

Flatwasher, 3/8-.391 x .938 x .105

$

$

Currently unavailable

6

Scag 461408

Hood Assembly, GC-STT

Note: (includes items 1, 2 & 3 and items 2 & 15 on page 14)

$680.99

$

Usually ships in 2-12 days

0

7

Scag 04001-117

Bolt, Hex Head 7/16-14 x 1-3/4"

$0.99

$

In Stock, only 3 left!

0

8

Scag 423258

Hinge, Upper LH

$31.99

$

Usually ships in 2-12 days

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 04040-11

Flatwasher, 7/16-.500 x 1-1/4"

$0.99

$

In Stock, Qty 13

0

11

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

13

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4" Grade 8

$0.99

$

In Stock, only 4 left!

0

15

Scag 451674

Support Weldment, Bag Frame
(Superseded to 453120)

$267.99

$

Usually ships in 2-12 days

0

16

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04090-03

Rivet, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

18

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

19

Scag 482304

Spring, Hood Hinge

$52.99

$

In Stock, only 2 left!

0

20

Scag 423436

Hinge, Lower LH

$22.99

$

Usually ships in 2-12 days

0

21

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

22

Scag 04021-05

Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

24

Scag 423259

Hinge, Upper RH

$31.99

$

Usually ships in 2-12 days

0

25

Scag 423261

Hinge, Lower RH

$31.99

$

Usually ships in 2-12 days

0

26

Scag 48135-13

Hose, 8" Dia. x 56"

Note: (61")

$242.99

$

Usually ships in 2-12 days

0

27

Scag 48136-02

Clamp, 8-5/8" Max Dia.

Note: (61")

$9.99

$

In Stock, only 2 left!

0

28

Scag 482422

Tube, Filler

Note: (8" Hose)

$106.99

$

Usually ships in 2-12 days

0

29

Scag 482421

Elbow

Note: (8" Hose)

$124.99

$

Usually ships in 2-12 days

0

30

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

31

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

33

Scag 04041-11

Flatwasher, 3/8- .406 x 1-1/2" x .179

$1.99

$

In Stock, only 4 left!

0

34

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

35

Scag 482409

Latch

$74.99

$

In Stock, only 2 left!

0

36

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

37

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

38

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 451517

Support Weldment, Weights

$363.99

$

In Stock, only 1 left!

0

40

Scag 461097

Weight Assembly

$208.99

$

Usually ships in 2-12 days

0
