GC-STWC-61 - Scag Grass Catcher (SN: B8300001 - B8399999) Blower Mounting Components 61" Parts Diagram

Grass Catcher

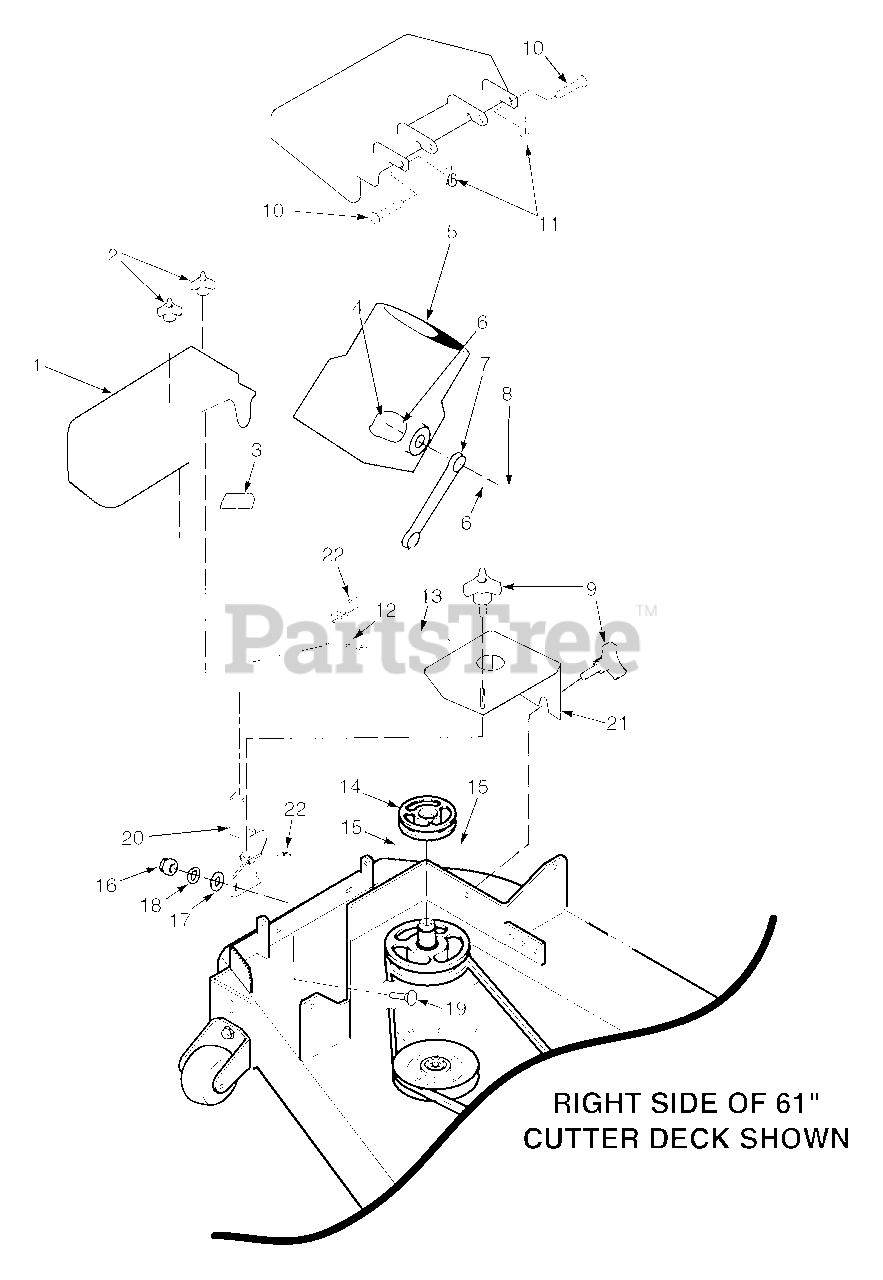

Blower Mounting Components 61" Parts Diagram

  • Title

1

Scag 482378

Belt Cover, GC-STWC - 61"
(Superseded to 483226)

$320.99

$

Usually ships in 2-12 days

0

2

Scag 04029-04

Wingnut, Plastic 3/8 Small

$2.99

$

In Stock, Qty 19

0

3

Scag 482300

Cap, Square Vinyl

$3.49

$

In Stock, only 1 left!

0

4

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Scag 461419

Adapter, Blower GC-STT
(Superseded to 461723)

$169.99

$

Usually ships in 2-12 days

0

6

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

7

Scag 48137-04

Rubber Strap 7-3/4"

$10.99

$

In Stock, only 1 left!

0

8

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

9

Scag 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

10

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 11

0

11

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 3 left!

0

12

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"

$10.99

$

Usually ships in 2-12 days

0

13

Scag 481547

Lanyard

$16.99

$

In Stock, only 1 left!

0

14

Scag 482377

Pulley, 5-1/2" for 61" Deck

$83.99

$

In Stock, only 1 left!

0

15

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

16

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

17

Scag 04030-06

Lockwasher, 1/2"

$0.99

$

In Stock, only 2 left!

0

18

Scag 04040-07

Flatwasher, 1/2-.531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

19

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2" Grade 5

$1.49

$

In Stock, only 4 left!

0

20

Scag 451413

Mounting Post Weldment, Blower - 61"

$65.99

$

Usually ships in 2-12 days

0

21

Scag 423826

Belt Cover, GC-STWC-61
(Superseded to 462426)

$80.99

$

Usually ships in 2-12 days

0
