GC-STT-61V (GC-SCZ-61V) - Scag Grass Catcher (SN: G8200001 - G8299999) GC-STT / SCZ Bag Support Components Parts Diagram

Grass Catcher

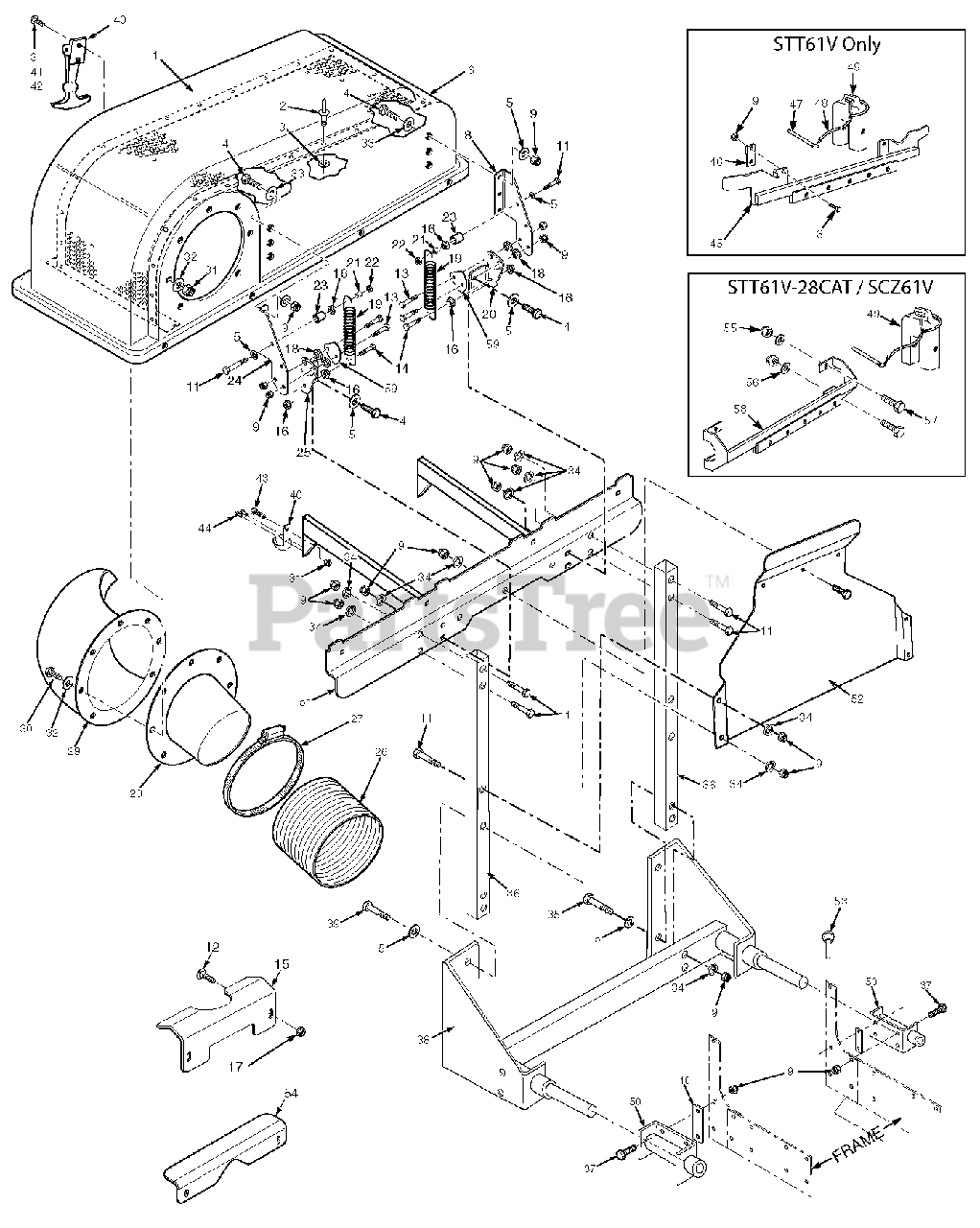

GC-STT / SCZ Bag Support Components Parts Diagram

  • Title

1

Scag 423302

Screen, Catcher Hood

$200.99

$

Usually ships in 2-12 days

0

2

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

3

Scag 04041-19

Flatwasher, 3/16-.196 x .469 x .048

$0.99

$

In Stock, Qty 5

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

5

Scag 04041-01

Flatwasher, 3/8-.391 x .938 x .105

$

$

Currently unavailable

6

Scag 461408

Hood Assembly, GC-STT

Note: (includes items 1, 2 & 3 and items 2 & 15 on page 15)

$680.99

$

Usually ships in 2-12 days

0

7

Scag 04001-117

Bolt, Hex Head 7/16-14 x 1-3/4"

$0.99

$

In Stock, only 3 left!

0

8

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 423670

Spacer, Hitch

$10.99

$

Usually ships in 2-12 days

0

11

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-04

Bolt, Carriage 5/16-18 x 1.00"

$0.99

$

In Stock, Qty 9

0

13

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4" Grade 8

$0.99

$

In Stock, only 4 left!

0

15

Scag 423690

Support Bracket, Catcher

Note: (STT, STT61V-28CAT)

$36.99

$

In Stock, only 1 left!

0

16

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

18

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

19

Scag 482304

Spring, Hood Hinge

$52.99

$

In Stock, only 2 left!

0

20

Scag 425828

Hinge, Lower LH

$

$

Currently unavailable

21

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

22

Scag 04021-05

Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

24

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

25

Scag 425829

Hinge, Lower RH

$

$

Currently unavailable

26

Scag 48135-15

Hose, 8" Dia. x 53"

$277.99

$

Usually ships in 2-12 days

0

27

Scag 48136-02

Clamp, 8-5/8" Max Dia.

$9.99

$

In Stock, only 2 left!

0

28

Scag 482422

Tube, Filler

$106.99

$

Usually ships in 2-12 days

0

29

Scag 482421

Elbow

$124.99

$

Usually ships in 2-12 days

0

30

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

31

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

33

Scag 04041-11

Flatwasher, 3/8- .406 x 1-1/2" x .179

$1.99

$

In Stock, only 4 left!

0

34

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

35

Scag 423436

Bolt, Hex Head 3/8-16 x 3-3/4"

$22.99

$

Usually ships in 2-12 days

0

36

Scag 423828

Tube, Upright

$74.99

$

Usually ships in 2-12 days

0

37

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

38

Scag 451596

Bolt, Hex Head 3/8-16 x 2-1/2"

$337.99

$

Usually ships in 2-12 days

0

39

Scag 04001-31

Support Weldment, Weights

$0.99

$

In Stock, Qty 20+

0

40

Scag 482409

Latch

$74.99

$

In Stock, only 2 left!

0

41

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

42

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

43

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

44

Scag 04090-03

Rivet, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

45

Scag 451026

Support Weldment, Front Weights

Note: (STT Only)

$282.99

$

Usually ships in 2-12 days

0

46

Scag 422586

Clamp, Bar

$14.99

$

In Stock, only 2 left!

0

47

Scag 04067-06

Pin, 1/2 x 6-1/4"

$9.99

$

In Stock, only 1 left!

0

48

Scag 481737

Lanyard, Weight Pin

$23.99

$

Usually ships in 2-12 days

0

49

Scag 9009

Weight Assembly

$103.99

$

Usually ships in 2-12 days

0

50

Scag 451512

Hitch Bracket Weldment

$90.99

$

Usually ships in 2-12 days

0

51

Scag 451674

Support Weldment, Bag Frame
(Superseded to 453120)

$267.99

$

Usually ships in 2-12 days

0

52

Scag 423435

Heat Shield

$106.99

$

Usually ships in 2-12 days

0

53

Scag 04066-03

Quick Pin

$3.99

$

In Stock, Qty 8

0

54

Scag 425498

Support Bracket, GC

Note: (SCZ Only)

$31.99

$

In Stock, only 2 left!

0

55

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

56

Scag 04040-11

Flatwasher, 7/16-.500 x 1.250 x .083

$0.99

$

In Stock, Qty 13

0

57

Scag 04001-117

Bolt, Hex Head 7/16-14 x 1-3/4"

$0.99

$

In Stock, only 3 left!

0

58

Scag 452175

Support Weldment, Front Weights

Note: (STT61V-28CAT, SCZ)

$326.99

$

Usually ships in 2-12 days

0

59

Scag 425832

Guard, GC Hinge

$6.49

$

Usually ships in 2-12 days

0
