GC-STT-61V (GC-SCZ-61V) - Scag Grass Catcher (SN: F6800001 - F6899999) GC-STT/SCZ-61V Blower Housing Assembly Parts Diagram

Grass Catcher

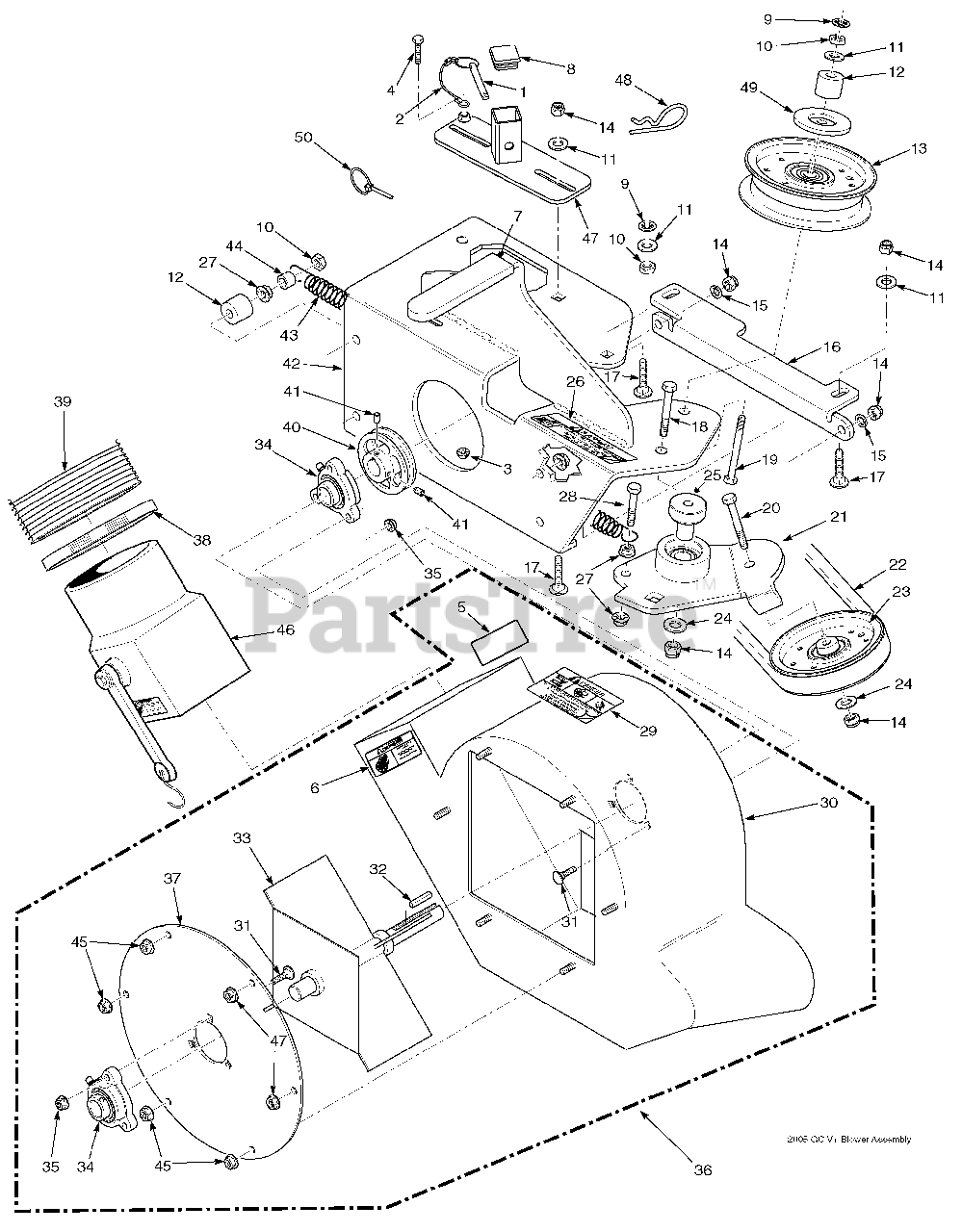

GC-STT/SCZ-61V Blower Housing Assembly Parts Diagram

  • Title

1

Scag 04067-07

Pin, Ring 2-1/4" Long

$8.49

$

Usually ships in 2-12 days

0

2

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

0

3

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

5

Scag 483392

Decal, Blower

$

$

Not available

6

Scag 483393

Decal, Rotating Blower

$

$

Not available

7

Scag 481428

Grip, Blower Lever

$4.49

$

Usually ships in 2-12 days

0

8

Scag 483223

Cap, Square

$1.99

$

Usually ships in 2-12 days

0

9

Scag 04024-02

Nut, Push On 3/8 Thread

$1.49

$

In Stock, Qty 5

0

10

Scag 04021-05

Lock Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

12

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

13

Scag 483209

Pulley, Idler 4" Dia. - 61"

$52.99

$

In Stock, only 1 left!

0

14

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04030-04

Lockwasher, 3/8-16

$0.99

$

In Stock, Qty 8

0

16

Scag 424361

Plate, Catcher Mounting

$44.99

$

Usually ships in 2-12 days

0

17

Scag 04003-05

Bolt, Carr. 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

18

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

19

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2"

$2.49

$

In Stock, only 1 left!

0

20

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 461928

Idler Arm Assembly - 61"

$92.99

$

In Stock, only 1 left!

0

22

Scag 483182

Belt, GC-STT-61V

$44.99

$

In Stock, only 1 left!

0

23

Scag 483189

Pulley, 3-1/2" O.D., GC-STC

$46.99

$

In Stock, only 1 left!

0

24

Scag 04043-04

Washer, 3/8 Hardened

$0.99

$

In Stock, Qty 20+

0

25

Scag 43575

Pivot, Idler - 61"

$26.99

$

In Stock, only 2 left!

0

26

Scag 483402

Decal, Belt Cover

$3.99

$

In Stock, Qty 5

0

27

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8

$0.99

$

In Stock, Qty 20+

0

29

Scag 483391

Decal, Danger

$

$

Not available

30

Scag 461931

Blower Housing Weldment w/Decals

$306.99

$

Usually ships in 2-12 days

0

31

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4" Gr. 5

$0.99

$

In Stock, Qty 20+

0

32

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

33

Scag 461796

Fan Weldment

$174.99

$

Usually ships in 2-12 days

0

34

Scag 483034

Bearing Assembly

$38.99

$

In Stock, only 4 left!

0

35

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

36

Scag 461930

Blower Housing Assembly, GC-STT

$542.99

$

Usually ships in 2-12 days

0

37

Scag 421319

Cover, Blower Housing

$50.99

$

In Stock, only 1 left!

0

38

Scag 48136-02

Clamp, 8-5/8" Max Dia.

$9.99

$

In Stock, only 2 left!

0

39

Scag 48135-15

Hose, 8" Dia. x 68" Long

$277.99

$

Usually ships in 2-12 days

0

40

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

$62.99

$

In Stock, only 4 left!

0

41

Scag 04012-04

Set Screw, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

42

Scag 461932

Frame, Blower Mount

$173.99

$

Usually ships in 2-12 days

0

43

Scag 481522

Spring, Main Drive

$32.99

$

In Stock, only 1 left!

0

44

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

45

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

46

Scag 461723

Adapter w/Strap

$165.99

$

Usually ships in 2-12 days

0

47

Scag 451821

Receiver Weldment, Mount Post - 61"

$44.99

$

Usually ships in 2-12 days

0

48

Scag 04062-04

Hair Pin Cotter, .177 x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

49

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

50

Scag 04066-04

Quick Pin, 5/16" Dia.

$6.99

$

In Stock, Qty 8

0
