GC-STT-52 - Scag Grass Catcher (SN: G7300001 - G7399999) GC-STT Blower Mounting Components Parts Diagram

Grass Catcher

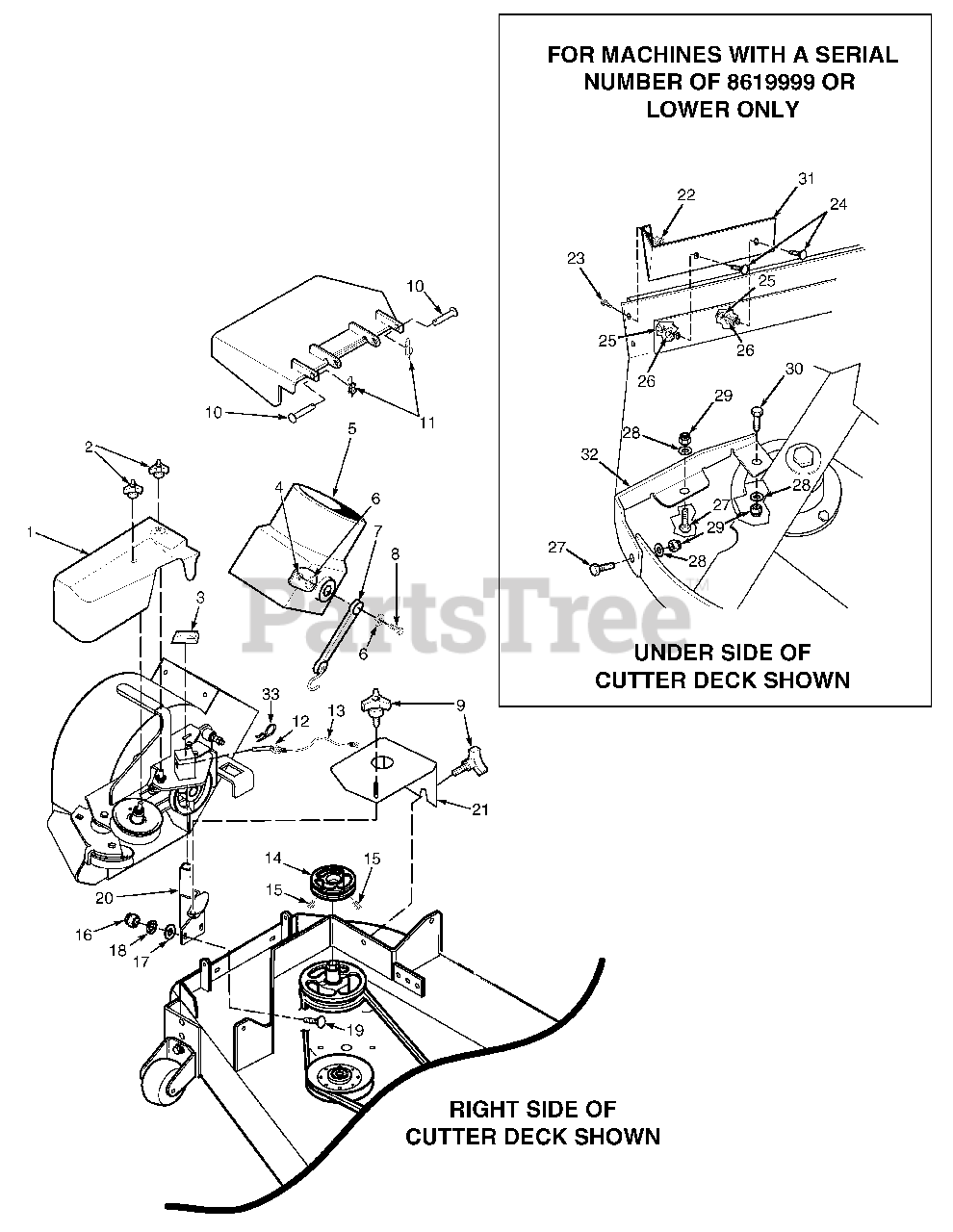

GC-STT Blower Mounting Components Parts Diagram

  • Title

1

Scag 482406

Belt Cover, GC-STT - 52"

$84.99

$

Usually ships in 2-12 days

0

1

Scag 483226

Belt Cover, GC-STT - 61"

$

$

Not available

2

Scag 04029-04

Wingnut, Plastic 3/8" Small

$2.99

$

In Stock, Qty 20+

0

3

Scag 482300

Cap, Square Vinyl

$3.49

$

In Stock, only 1 left!

0

4

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

5

Scag 461723

Adapter w/Strap

$165.99

$

Usually ships in 2-12 days

0

6

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

7

Scag 48137-04

Rubber Strap 7-3/4"

$9.99

$

In Stock, only 3 left!

0

8

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

9

Scag 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

10

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 11

0

11

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 3 left!

0

12

Scag 04067-10

Pin, Ring 1/2 x 2-1/4"

$6.99

$

In Stock, only 3 left!

0

13

Scag 481547

Lanyard

$16.99

$

In Stock, only 1 left!

0

14

Scag 482587

Pulley, 4-1/2" for 52" Deck

$66.99

$

In Stock, only 1 left!

0

14

Scag 482377

Pulley, 5-1/2" for 61" Deck

$81.99

$

Usually ships in 2-12 days

0

15

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

17

Scag 04040-07

Flatwasher, 1/2-.531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

18

Scag 04030-06

Lockwasher, 1/2"

$0.99

$

In Stock, only 2 left!

0

19

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2" Grade 5

$1.49

$

In Stock, only 4 left!

0

20

Scag 461418

Mounting Post Weldment, Blower - 52"

$75.99

$

Usually ships in 2-12 days

0

20

Scag 451413

Mounting Post Weldment, Blower - 61"

$63.99

$

Usually ships in 2-12 days

0

21

Scag 425695

Belt Cover, - 52"

$51.99

$

Usually ships in 2-12 days

0

21

Scag 462467

Belt Cover Assembly, - 61" w/Cap

$

$

Currently unavailable

21

Scag 484368

Cap, Spindle (not shown) 61" Only

$4.99

$

In Stock, Qty 20+

0

22

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

23

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

25

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

31

Scag 423629

Baffle, 52"

$

$

Not available

31

Scag 423448

Baffle, 61"

$75.99

$

Usually ships in 2-12 days

0

32

Scag 423956

Baffle, 52" Deck

$61.99

$

Usually ships in 2-12 days

0

32

Scag 423957

Baffle, 61" Deck

$75.99

$

Usually ships in 2-12 days

0

33

Scag 04062-04

Hair Pin Cotter, .177 x 3-1/4"

$1.49

$

In Stock, Qty 20+

0
