GC-STT-52 - Scag Grass Catcher (SN: A7800001 - A7899999) Bag Support Bracket And Seal Parts Diagram

Grass Catcher

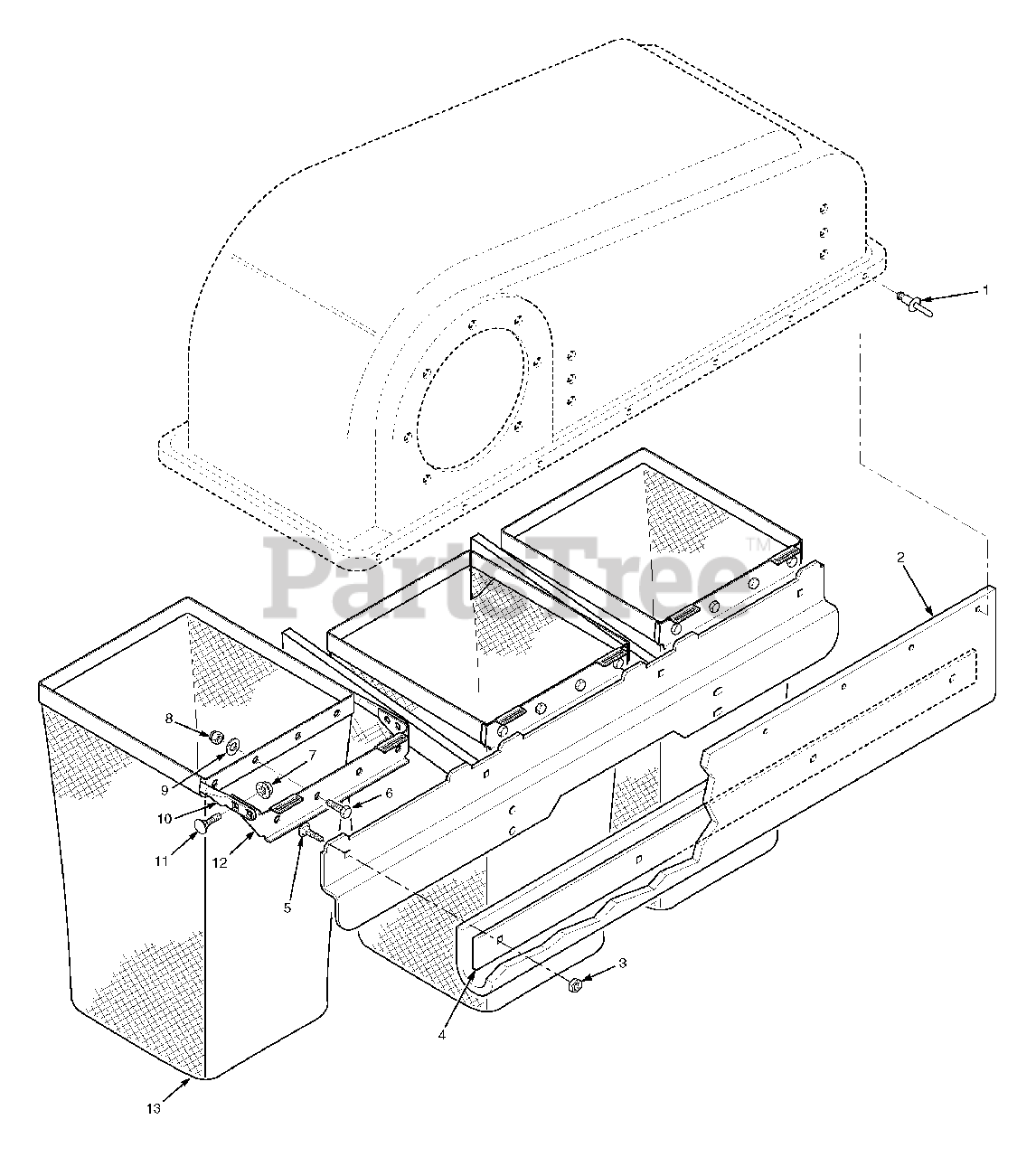

Bag Support Bracket And Seal Parts Diagram

  • Title
1

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

2

Scag 482321

Seal, Hood

$24.99

$

Usually ships in 2-12 days

0

3

Scag 04021-02

Lock Nut, 1/4-20 Center Lock

$0.99

$

In Stock, Qty 5

0

4

Scag 423312

Retainer, Seal

$24.99

$

In Stock, only 3 left!

0

5

Scag 04003-02

Bolt, Carr. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

7

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

10

Scag 423197

Tube, Bag Support

$90.99

$

In Stock, only 1 left!

0

11

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 423198

Mount, Bag Frame Tube

$47.99

$

In Stock, only 1 left!

0

13

Scag 482569

Bag Assembly, GC-STT
(Superseded to 462968)

$155.99

$

In Stock, only 3 left!

0
