GC-STT-52 - Scag Grass Catcher (SN: 8630001 - 8639999) Bucket Support Components Parts Diagram

Grass Catcher

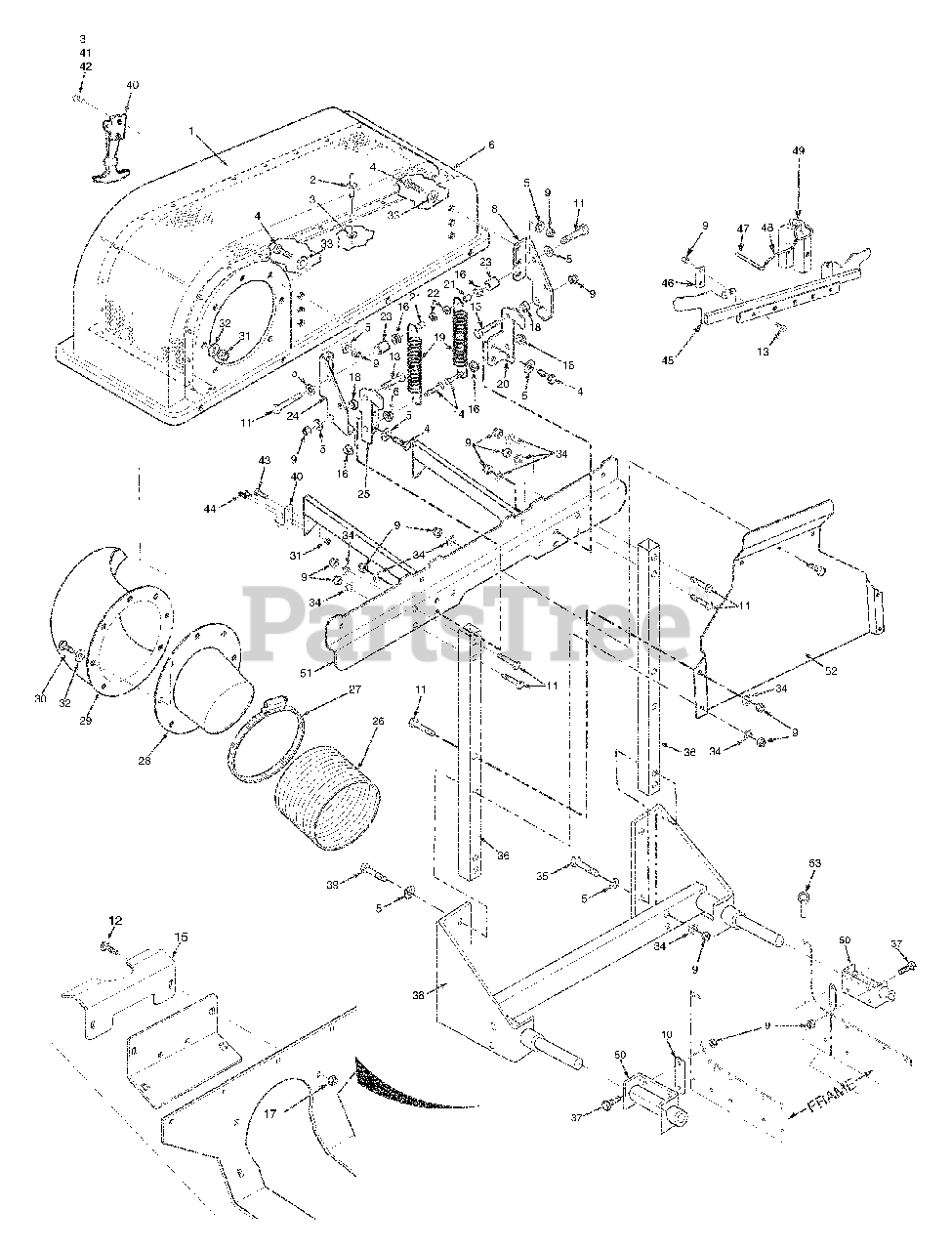

Bucket Support Components Parts Diagram

  • Title

1

Scag 423302

Screen, Catcher Hood

$

$

Not available

2

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

3

Scag 04041-19

Flatwasher,

$0.99

$

In Stock, Qty 5

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

5

Scag 04041-07

Flatwasher,

$0.99

$

In Stock, Qty 20+

0

6

Scag 461408

Hood Assembly, GC-STT

$680.99

$

Usually ships in 2-12 days

0

?7

Scag 04001-161

Bolt, Hex Head 3/8-16 x 2-3/4"

$3.99

$

In Stock, only 2 left!

0

8

Scag 423258

Hinge, Upper LH

$31.99

$

Usually ships in 2-12 days

0

9

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 423670

Spacer, Hitch

$10.99

$

Usually ships in 2-12 days

0

11

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-04

Bolt, Carriage 5/16-18 x 1.00

$0.99

$

In Stock, Qty 17

0

13

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-135

Bolt, Hex Head

$0.99

$

In Stock, only 4 left!

0

15

Scag 423690

Support Bracket, Catcher

$36.99

$

In Stock, only 1 left!

0

16

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-03

Nut, Hex Serrated

$0.99

$

In Stock, Qty 20+

0

18

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

19

Scag 482304

Spring, Hood Hinge

$52.99

$

In Stock, only 2 left!

0

20

Scag 423436

Hinge, Lower LH

$22.99

$

Usually ships in 2-12 days

0

21

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

22

Scag 04021-05

Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 43277

Spacer

$6.49

$

In Stock, Qty 11

0

24

Scag 423259

Hinge, Upper RH

$31.99

$

Usually ships in 2-12 days

0

25

Scag 423261

Hinge, Lower RH

$31.99

$

Usually ships in 2-12 days

0

26

Scag 48135-14

Hose, 8" Dia. x 60.5"

$255.99

$

In Stock, only 1 left!

0

27

Scag 48136-02

Clamp, 8-5/8" Max Dia.

$9.99

$

Usually ships in 2-12 days

0

28

Scag 482422

Tube, Filler GC-STT

$106.99

$

Usually ships in 2-12 days

0

29

Scag 482421

Elbow, GC-STT

$124.99

$

Usually ships in 2-12 days

0

30

Scag 04001-10

Bolt, Hex Head

$0.99

$

In Stock, Qty 20+

0

31

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04040-15

Flatwasher,

$0.99

$

In Stock, Qty 20+

0

33

Scag 04041-11

Flatwasher, 3/8-

$1.99

$

In Stock, Qty 20+

0

34

Scag 04030-04

Lockwasher, 3/8 Spring

$0.99

$

In Stock, Qty 20+

0

35

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 18

0

36

Scag 423426

Tube, Upright
(Superseded to 423828)

$74.99

$

Usually ships in 2-12 days

0

37

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

38

Scag 451511

Frame Weldment
(Superseded to 451596)

$337.99

$

Usually ships in 2-12 days

0

39

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

40

Scag 482409

Latch

$74.99

$

In Stock, Qty 7

0

41

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

42

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

43

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

44

Scag 04090-03

Rivet, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

45

Scag 451026

Support Weldment,

$282.99

$

Usually ships in 2-12 days

0

46

Scag 422586

Clamp, Bar

$14.99

$

In Stock, only 2 left!

0

47

Scag 04067-06

Pin, 1/2 x 6-1/4"

$9.99

$

In Stock, only 1 left!

0

48

Scag 481737

Lanyard, Weight Pin

$23.99

$

Usually ships in 2-12 days

0

49

Scag 9009

Weight Assembly

$103.99

$

Usually ships in 2-12 days

0

50

Scag 451512

Hitch Bracket Weldment

$90.99

$

Usually ships in 2-12 days

0

51

Scag 451516

Support Weldment, Bag Frame
(Superseded to 453120)

$267.99

$

Usually ships in 2-12 days

0

52

Scag 423435

Heat Shield

$106.99

$

Usually ships in 2-12 days

0

53

Scag 04066-03

Quick Pin

$3.99

$

In Stock, Qty 8

0
