GC-STC-V - Scag Grass Catcher (SN: B8200001 - B8299999) Bucket Support Components (Lower) Parts Diagram

Grass Catcher

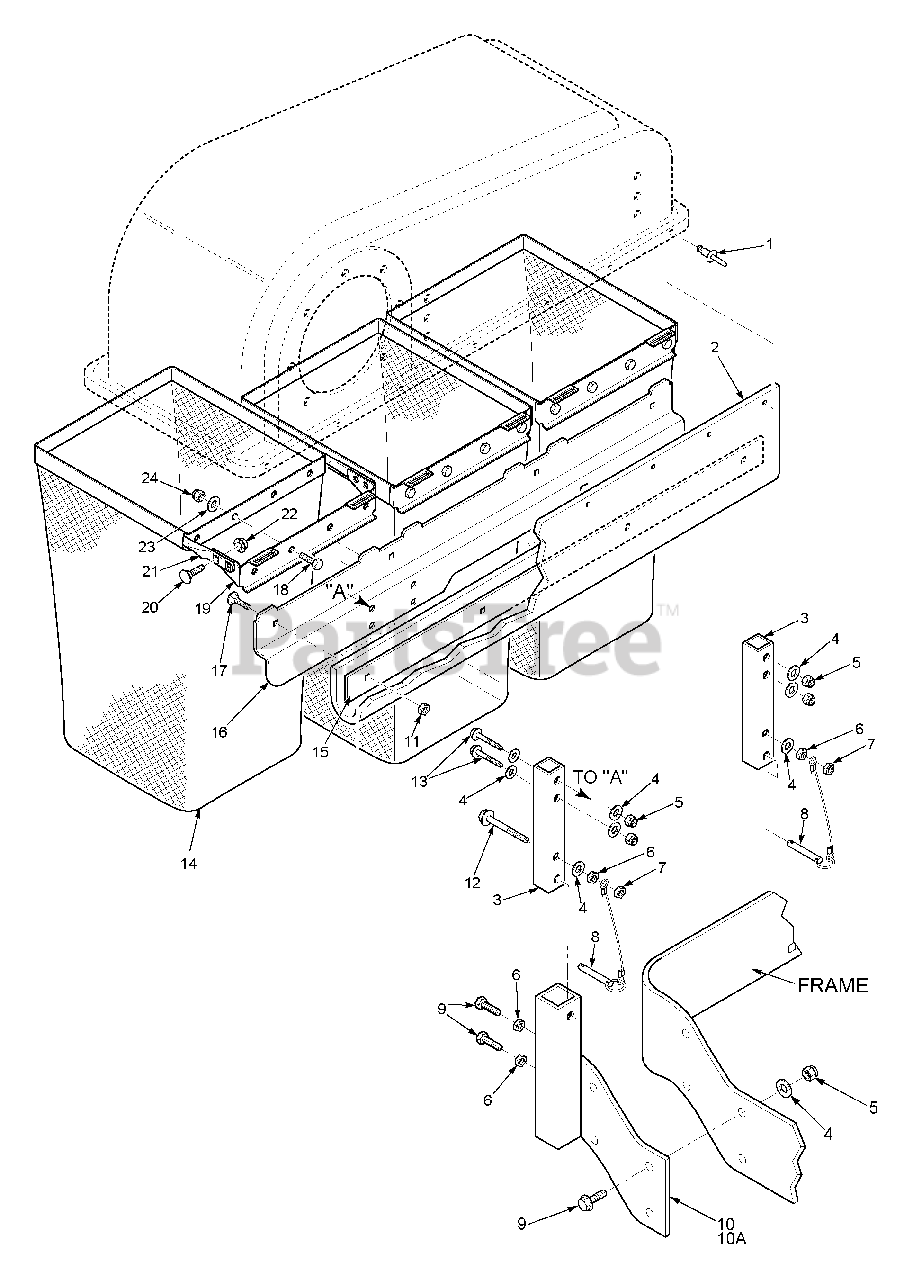

Bucket Support Components (Lower) Parts Diagram

  • Title

1

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

2

Scag 482321

Seal, Hood

$23.99

$

Usually ships in 2-12 days

0

3

Scag 423262

Tube, Upright

$104.99

$

Usually ships in 2-12 days

0

4

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04020-04

Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04021-05

Hex Lock Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"

$8.49

$

Usually ships in 2-12 days

0

9

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

10

Scag 451726

Mounting Bracket Weldment RH
(Superseded to 461995)

$160.99

$

Usually ships in 2-12 days

0

10A

Scag 451725

Mounting Bracket Weldment LH
(Superseded to 461994)

$160.99

$

Usually ships in 2-12 days

0

11

Scag 04021-02

Lock Nut, 1/4-20 Center

$0.99

$

In Stock, Qty 5

0

12

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

14

Scag 482569

Bag Assembly, GC-STT
(Superseded to 462968)

$125.99

$

In Stock, only 3 left!

0

15

Scag 423312

Retainer, Seal

$24.99

$

In Stock, only 3 left!

0

16

Scag 451674

Support, Bag Frame
(Superseded to 453120)

$267.99

$

Usually ships in 2-12 days

0

17

Scag 04003-02

Bolt, Carr. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 423198

Mount, Bag Frame Tube

$46.99

$

In Stock, only 1 left!

0

20

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 423197

Tube, Bag Support

$88.99

$

Usually ships in 2-12 days

0

22

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

24

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0
