GC-STC-V - Scag Grass Catcher (SN: B8200001 - B8299999) Blower Mounting Components 48" & 52" Parts Diagram

Grass Catcher

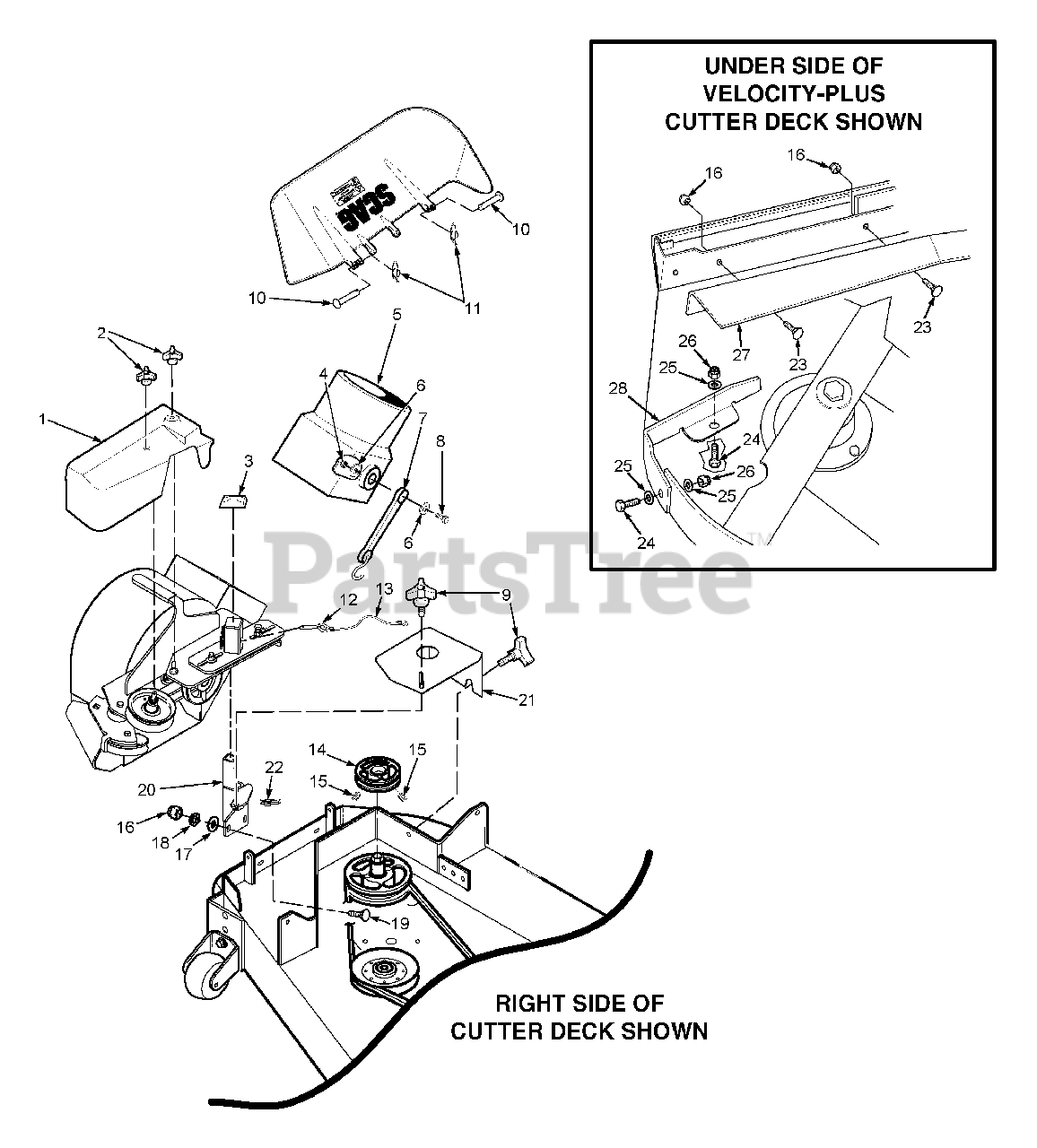

Blower Mounting Components 48" & 52" Parts Diagram

  • Title

1

Scag 483224

Belt Cover, GC-STC

$82.99

$

Usually ships in 2-12 days

0

2

Scag 04029-04

Wingnut, Plastic 3/8" Small

$2.99

$

In Stock, Qty 19

0

3

Scag 483223

Cap, Square Vinyl

$1.99

$

Usually ships in 2-12 days

0

4

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Scag 461723

Adapter, Blower GC-STC,

Note: includes item #7

$169.99

$

Usually ships in 2-12 days

0

6

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

7

Scag 48137-04

Rubber Strap 7-3/4"

$10.99

$

In Stock, only 1 left!

0

8

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

9

Scag 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

10

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 11

0

11

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 3 left!

0

12

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"

$10.99

$

Usually ships in 2-12 days

0

13

Scag 481547

Lanyard

$16.99

$

In Stock, only 1 left!

0

14

Scag 482587

Pulley, 4.0" Dia. 1.125 Bore

$68.99

$

In Stock, only 1 left!

0

15

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

16

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

18

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-11

Bolt, Carr. 3/8-16 x 1-1/4" Grade 5

$0.99

$

In Stock, Qty 7

0

20

Scag 461894

Mounting Post Weldment, Blower

$128.99

$

Usually ships in 2-12 days

0

21

Scag 424326

Belt Cover, GC-STC-48V
(Superseded to 462415)

$108.99

$

Usually ships in 2-12 days

0

Scag 424327

Belt Cover, GC-STC-52V
(Superseded to 462416)

$84.99

$

Usually ships in 2-12 days

0

22

Scag 04110-03

U-Nut

$2.49

$

In Stock, Qty 20+

0

23

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

24

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

26

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 424401

Baffle, Front 48" Deck

$145.99

$

Usually ships in 2-12 days

0

Scag 424402

Baffle, Front 52" Deck

$87.99

$

Usually ships in 2-12 days

0

28

Scag 424210

Baffle, Turbo 48" Deck
(Superseded to 424683)

$46.99

$

Usually ships in 2-12 days

0

Scag 424211

Baffle, Turbo 52" Deck

$72.99

$

Usually ships in 2-12 days

0
