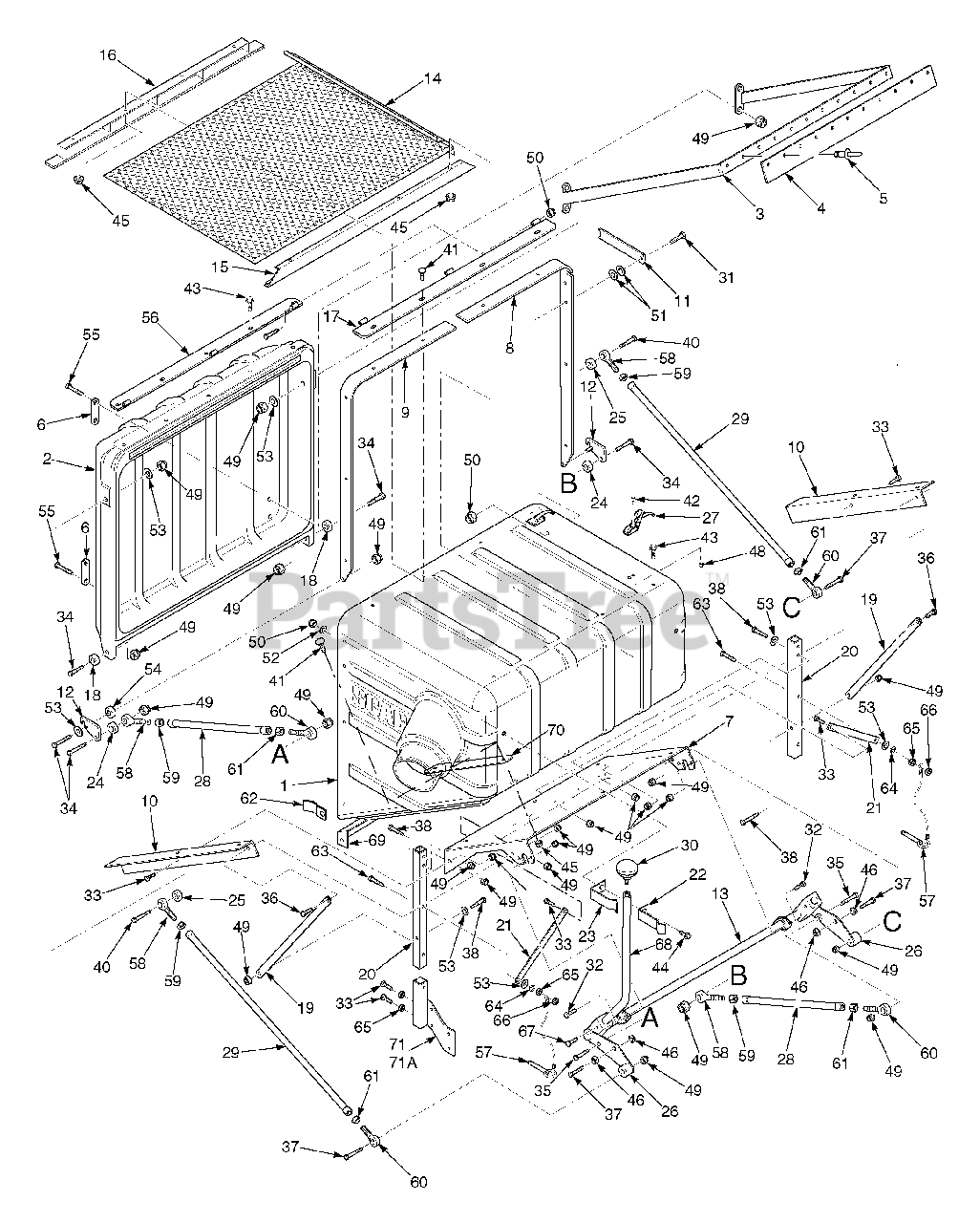

GC-STC-CS - Scag Grass Catcher (SN: B9000001 - B9099999) Hopper Components Parts Diagram

Grass Catcher

Hopper Components Parts Diagram

  • Title

1

Scag 461627

Hopper, GC-STC-CS

$

$

Not available

2

Scag 482732

Door, GC-CS

$426.99

$

Usually ships in 2-12 days

0

3

Scag 461626

Sweeper Weldment, GC-CS

$111.99

$

Usually ships in 2-12 days

0

4

Scag 482777

Pad, Rubber

$30.99

$

Usually ships in 2-12 days

0

5

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

6

Scag 423834

Plate, Stiffener

$9.99

$

Usually ships in 2-12 days

0

7

Scag 423938

Support Frame, Hopper
(Superseded to 429154)

$218.99

$

Usually ships in 0 days

0

8

Scag 423849

Hinge Bracket, L.H.

$62.99

$

Usually ships in 2-12 days

0

9

Scag 423850

Hinge Bracket, R.H.

$63.99

$

Usually ships in 2-12 days

0

10

Scag 423858

Bracket, Hopper Support
(Superseded to 426020)

$38.99

$

Usually ships in 2-12 days

0

11

Scag 423837

Latch, Door Prop

$18.99

$

Usually ships in 2-12 days

0

12

Scag 423840

Plate, Latch

$10.99

$

In Stock, only 2 left!

0

13

Scag 451599

Bellcrank Weldment, Upper

$

$

Not available

14

Scag 451601

Debris Screen Weldment

$270.99

$

Usually ships in 2-12 days

0

15

Scag 451602

Screen Support Weldment, Rear

$100.99

$

Usually ships in 2-12 days

0

16

Scag 451603

Screen Support Weldment, Front

$67.99

$

Usually ships in 2-12 days

0

17

Scag 451607

Hinge Weldment, Hopper

$69.99

$

Usually ships in 2-12 days

0

18

Scag 43631

Spacer

$4.99

$

In Stock, only 1 left!

0

19

Scag 423851

Brace Stiffener, Short

$19.99

$

Usually ships in 2-12 days

0

20

Scag 423852

Tube, Upright

$67.99

$

Usually ships in 2-12 days

0

21

Scag 422386

Brace, Engine Mount

$13.99

$

Usually ships in 2-12 days

0

22

Scag 423862

Latch, Dump Rod Inner

$22.99

$

Usually ships in 2-12 days

0

23

Scag 423864

Latch, Dump Rod Outer

$22.99

$

Usually ships in 2-12 days

0

24

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

25

Scag 43282

Spacer

$7.99

$

In Stock, only 1 left!

0

26

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

27

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

28

Scag 43641

Linkage Assembly, Lower

$87.99

$

Usually ships in 2-12 days

0

29

Scag 43640

Linkage Assembly, Upper

$87.99

$

Usually ships in 2-12 days

0

30

Scag 481245

Knob

$8.49

$

Usually ships in 2-12 days

0

31

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4

$0.99

$

In Stock, Qty 14

0

32

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

33

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

34

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

37

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

38

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

40

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

41

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

42

Scag 04010-01

Screw, #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04017-16

Cap Screw, 5/16-18 x 3/4" Serr. Flan.

$0.99

$

In Stock, Qty 10

0

44

Scag 04017-17

Cap Screw, 5/16-18 x 1" Serr. Flan.

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

46

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

47

Scag 04020-12

Nut, 3/8-16 UNC Jam

$0.99

$

In Stock, only 3 left!

0

48

Scag 04021-01

Nut, #10-32 Elastic Stop

$0.99

$

In Stock, Qty 10

0

49

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

50

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

51

Scag 04032-01

Washer, Special Wave

$0.99

$

In Stock, only 3 left!

0

52

Scag 04040-15

Washer, 5/16-.375 x .875 x .083 Flat

$0.99

$

In Stock, Qty 20+

0

53

Scag 04041-07

Washer, 3/8-.931 x .938 x .105 Flat

$0.99

$

In Stock, Qty 20+

0

54

Scag 43642

Bushing, Hopper Latch GC-CS

$18.99

$

Usually ships in 2-12 days

0

55

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

56

Scag 451598

Hinge Weldment, Door

$70.99

$

Usually ships in 2-12 days

0

57

Scag 481547

Lanyard

$16.99

$

In Stock, only 1 left!

0

58

Scag 481538

Rod End Male, 3/8-24 L.H. Thread
(Superseded to 482585)

$20.99

$

In Stock, only 1 left!

0

59

Scag 04020-26

Nut, 3/8-24 UNF L.H. Thread

$1.99

$

In Stock, only 4 left!

0

60

Scag 481539

Rod End Male, 3/8-24 R.H. Thread
(Superseded to 482586)

$20.99

$

Usually ships in 2-12 days

0

61

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

62

Scag 423865

Alignment Bracket, GC-CS

$10.99

$

In Stock, only 1 left!

0

63

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

64

Scag 04030-04

Lock Wasker, 3/8-16 Spring

$0.99

$

In Stock, Qty 8

0

65

Scag 04020-04

Nut, 3/8-16 UNC Zinc

$0.99

$

In Stock, Qty 20+

0

66

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

67

Scag 04001-12

Bolt, Hex Head 5/16-18 1-3/4"

$0.99

$

In Stock, Qty 20+

0

Scag 04012-10

Nut, 5/16-18 Elastic Stop

Note: (Not Shown)

$18.99

$

Usually ships in 2-12 days

0

68

Scag 44147

Rod, Dump Lever

$47.99

$

Usually ships in 2-12 days

0

69

Scag 423855

Bracket, Lower Stiffener

$72.99

$

Usually ships in 2-12 days

0

Scag 423859

Backing Plate, Hopper

Note: (Not Shown)

$18.99

$

Usually ships in 2-12 days

0

70

Scag 423836

Retainer Strip, Hopper

$8.49

$

Usually ships in 2-12 days

0

71

Scag 451726

Mounting Bracket Weldment, R.H.
(Superseded to 461995)

$160.99

$

Usually ships in 2-12 days

0

71A

Scag 451725

Mounting Bracket Weldment, L.H.
(Superseded to 461994)

$160.99

$

Usually ships in 2-12 days

0
