GC-STC-61 - Scag Grass Catcher (SN: 8780001 - 8789999) Blower Housing Assembly 61" Parts Diagram

Grass Catcher

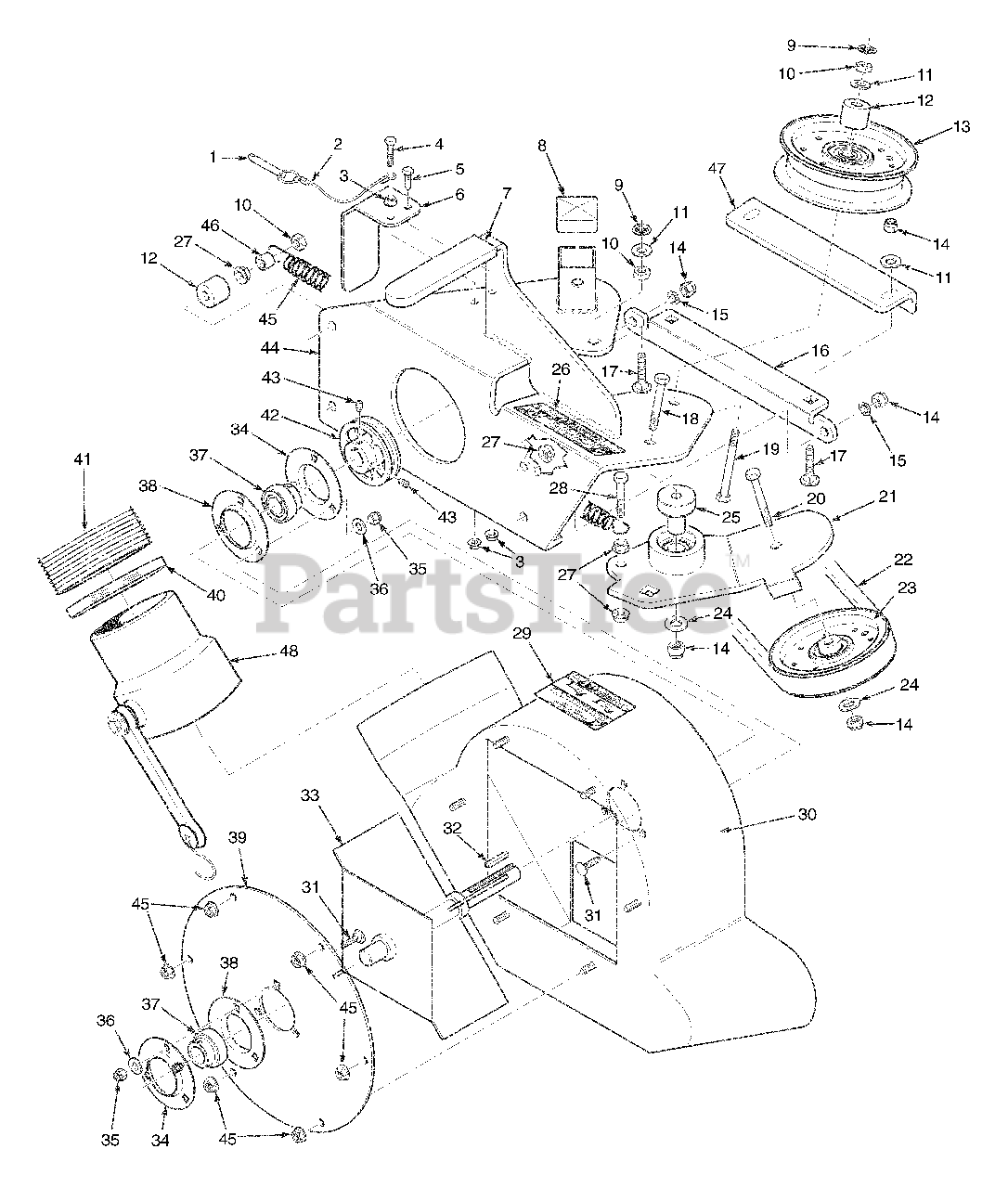

Blower Housing Assembly 61" Parts Diagram

  • Title

1

Scag 04067-07

Pin, Ring 2-1/4" Long

$10.99

$

Usually ships in 2-12 days

0

2

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

0

3

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

5

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

6

Scag 423298

Belt Cover, Rear

$86.99

$

Usually ships in 2-12 days

0

7

Scag 481428

Grip, Blower Lever

$4.49

$

Usually ships in 2-12 days

0

8

Scag 482300

Cap, Square

$3.49

$

In Stock, only 1 left!

0

9

Scag 04024-02

Nut, Push On 3/8 Thread

$1.49

$

In Stock, Qty 5

0

10

Scag 04021-05

Lock Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

12

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

13

Scag 482299

Pulley, Idler 4" Dia. - 61" Cutter Deck
(Superseded to 483209)

$53.99

$

In Stock, only 1 left!

0

14

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04030-04

Lockwasher, 3/8-16

$0.99

$

In Stock, Qty 8

0

16

Scag 423296

Plate, Catch Mounting

$25.99

$

Usually ships in 2-12 days

0

17

Scag 04003-05

Bolt, Carr. 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

18

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2"

$2.49

$

In Stock, only 1 left!

0

20

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 461389

Idler Arm Assembly, GC-STC 61"
(Superseded to 461928K)

$111.99

$

Usually ships in 2-12 days

0

22

Scag 482379

Belt, GC-STC 61"

$54.99

$

Usually ships in 2-12 days

0

23

Scag 482062

Pulley, 4" O.D., GC-STC 61"
(Superseded to 483216)

$57.99

$

Usually ships in 2-12 days

0

24

Scag 04043-04

Washer, 3/8 Hardened

$0.99

$

In Stock, Qty 20+

0

25

Scag 43575

Pivot, Idler - 61"

$26.99

$

In Stock, only 2 left!

0

26

Scag 481039

Decal, Belt Cover
(Superseded to 483402)

$1.49

$

Usually ships in 2-12 days

0

27

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8

$0.99

$

In Stock, Qty 20+

0

29

Scag 482293

Decal, Danger

$

$

Not available

30

Scag 461425

Blower Housing Assembly
(Superseded to 461779)

$607.99

$

Usually ships in 2-12 days

0

31

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4" Gr. 5

$0.99

$

In Stock, Qty 20+

0

32

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

33

Scag 451420

Fan Weldment
(Superseded to 461796)

$215.99

$

Usually ships in 2-12 days

0

34

Scag 48915

Bearing Assembly

$52.99

$

Usually ships in 2-12 days

0

35

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

36

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

37

Scag 421319

Cover, Blower Housing

$51.99

$

In Stock, only 1 left!

0

38

Scag 48136-02

Clamp, 8-5/8" Max Dia.

$10.99

$

In Stock, only 2 left!

0

39

Scag 48135-13

Hose, 8.00" Dia. x 56.00" Long

$248.99

$

Usually ships in 2-12 days

0

40

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

$63.99

$

In Stock, only 4 left!

0

41

Scag 04012-04

Set Screw, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

42

Scag 461424

Frame, Blower Mount - 61"
(Superseded to 461684)

$287.99

$

Usually ships in 2-12 days

0

43

Scag 481522

Spring, Main Drive

$33.99

$

In Stock, only 1 left!

0

44

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

45

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

46

Scag 461419

Adapter w/Strap
(Superseded to 461723)

$169.99

$

Usually ships in 2-12 days

0

47

Scag 423297

Plate, Blower Catch

$33.99

$

Usually ships in 2-12 days

0

48

UNKNOWN

$

$

Not available
