GC-SSZ - Scag Grass Catcher (SN: 0030000 - 0039999) DECK/COUNTER BALANCE COMPONENTS Parts Diagram

Grass Catcher

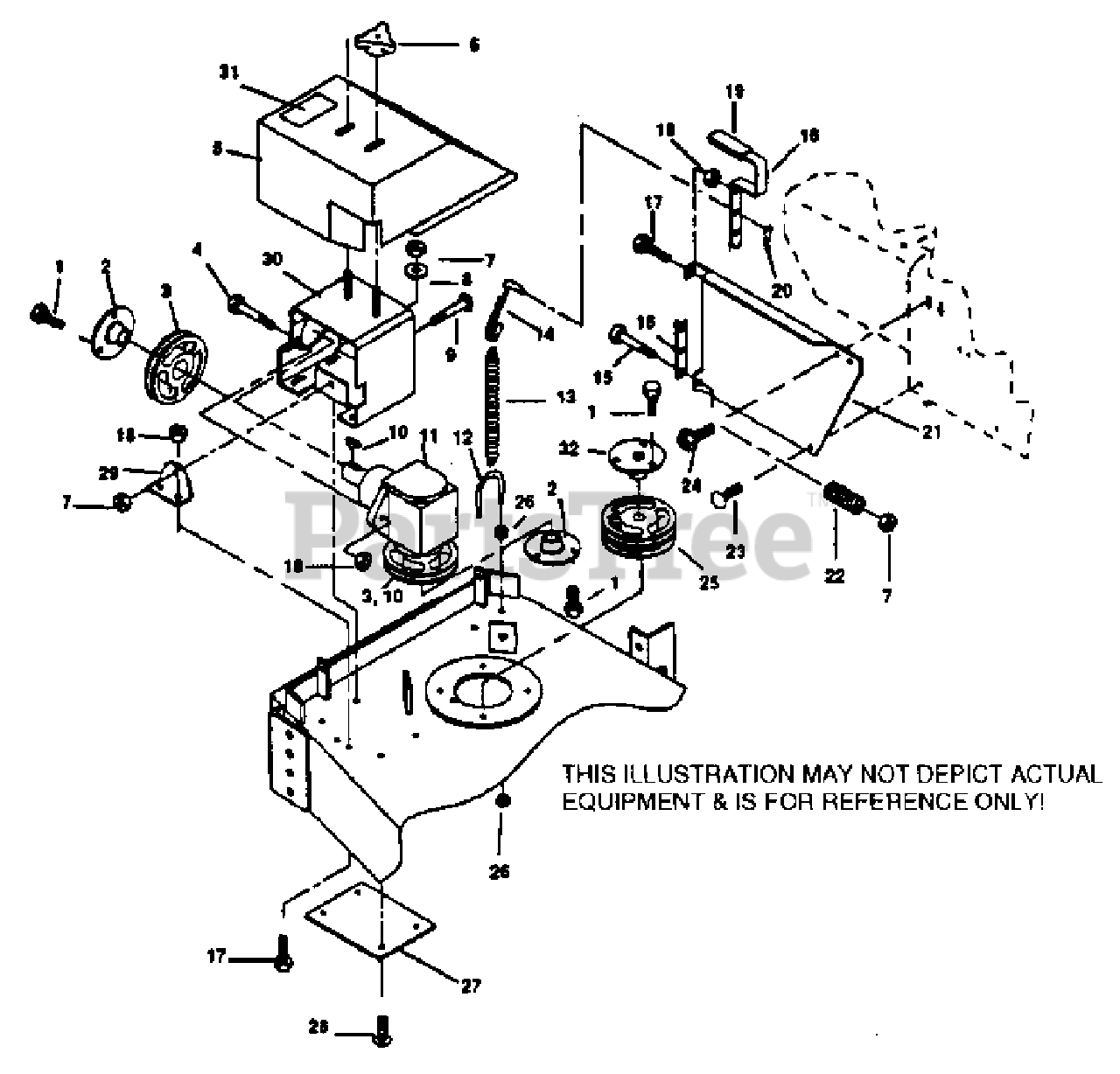

DECK/COUNTER BALANCE COMPONENTS Parts Diagram

  • Title

1

BOLT, HEX HEAD 1/4-20 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

2

Scag 48248

TAPERED HUB, 5/8" BORE

$29.99

$

Usually ships in 2-12 days

0

3

Scag 48924

PULLEY, 5.8" TAPERED BORE
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

4

Scag 04017-28

CAPSCREW, 3/8-16 X 1-1/4" SER. FLG.

$1.49

$

In Stock, Qty 8

0

5

Scag 46559

BELT COVER, W/DECAL
(Superseded to 46757)

$

$

Not available

6

Scag 04029-03

WINGNUT, 3/8-16 NON METALLIC

$2.49

$

In Stock, Qty 20+

0

7

Scag 04021-09

NUT, 3/8-16 ELASTIC STOP

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-07

FLAT WASHER, 3/8"

Note: (Used Only On Model(s): 391 X .938 X .105).

$0.99

$

In Stock, Qty 20+

0

9

CARRIAGE BOLT, 3/8-16 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

Scag 04063-07

KEY, WOODRUFF #9, 3/16 X 3/4"

$0.99

$

In Stock, Qty 12

0

11

Scag 48919

GEARBOX, 90 DEGREE DRIVE

$

$

Not available

12

Scag 04100-01

U-BOLT, 5/16-18 X 2.19"

$5.49

$

In Stock, only 3 left!

0

13

Scag 48755

EXTENTION SPRING

$10.99

$

In Stock, only 2 left!

0

14

Scag 44093

ROD, COUNTER BALANCE

$

$

Not available

15

Scag 04003-05

CARRIAGE BOLT, 3/8-16 X 1-1/2"

$0.99

$

In Stock, Qty 18

0

16

Scag 421346

LEVER, COUNTER BALANCE

$

$

Not available

17

Scag 04017-26

CAPSCREW, 3/8-16 X 3/4" SERR. FLANGE

$1.49

$

Usually ships in 2-12 days

0

18

Scag 04019-04

NUT, 3/8-16 SERR. FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

19

Scag 48215

GRIP, SHIFT LEVER

$6.99

$

Usually ships in 2-12 days

0

20

Scag 04062-01

HAIR PIN, .094 X 1.62

$0.99

$

In Stock, Qty 20+

0

21

Scag 421345

MOUNTING BRACKET, COUNTER BALANCE

$

$

Not available

22

Scag 48050

SPRING, COMPRESSION

$33.99

$

Usually ships in 2-12 days

0

23

CARRIAGE BOLT, 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

Scag 04017-16

CAPSCREW, 5/16-18 X 3/4" SERR. FLANGE

$0.99

$

In Stock, Qty 10

0

25

Scag 48923

PULLEY, 5-3/4 DOUBLE GROOVE

$113.99

$

In Stock, only 1 left!

0

26

Scag 04019-03

NUT, 5/16" SERRATED FLANGE

$0.99

$

In Stock, Qty 20+

0

27

Scag 421325

REINFORCEMENT PLATE, GEARBOX

$

$

Not available

28

CARRIAGE BOLT, 3/8-16 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

29

Scag 421324

ANCHOR BRACKET, TENSION BOLT

$

$

Not available

30

Scag 45495

SUPPORT WELDMENT GEAR BOX

$

$

Not available

31

Scag 48073

DECAL, WARNING
(Superseded to 483406)

$2.49

$

In Stock, only 3 left!

0

32

Scag 48141

TAPERED HUB, 1.00" BORE

$30.99

$

In Stock, only 1 left!

0
