GC-SSZ - Scag Grass Catcher (SN: 0030000 - 0039999) BUCKET SUPPORT COMPONENTS Parts Diagram

Grass Catcher

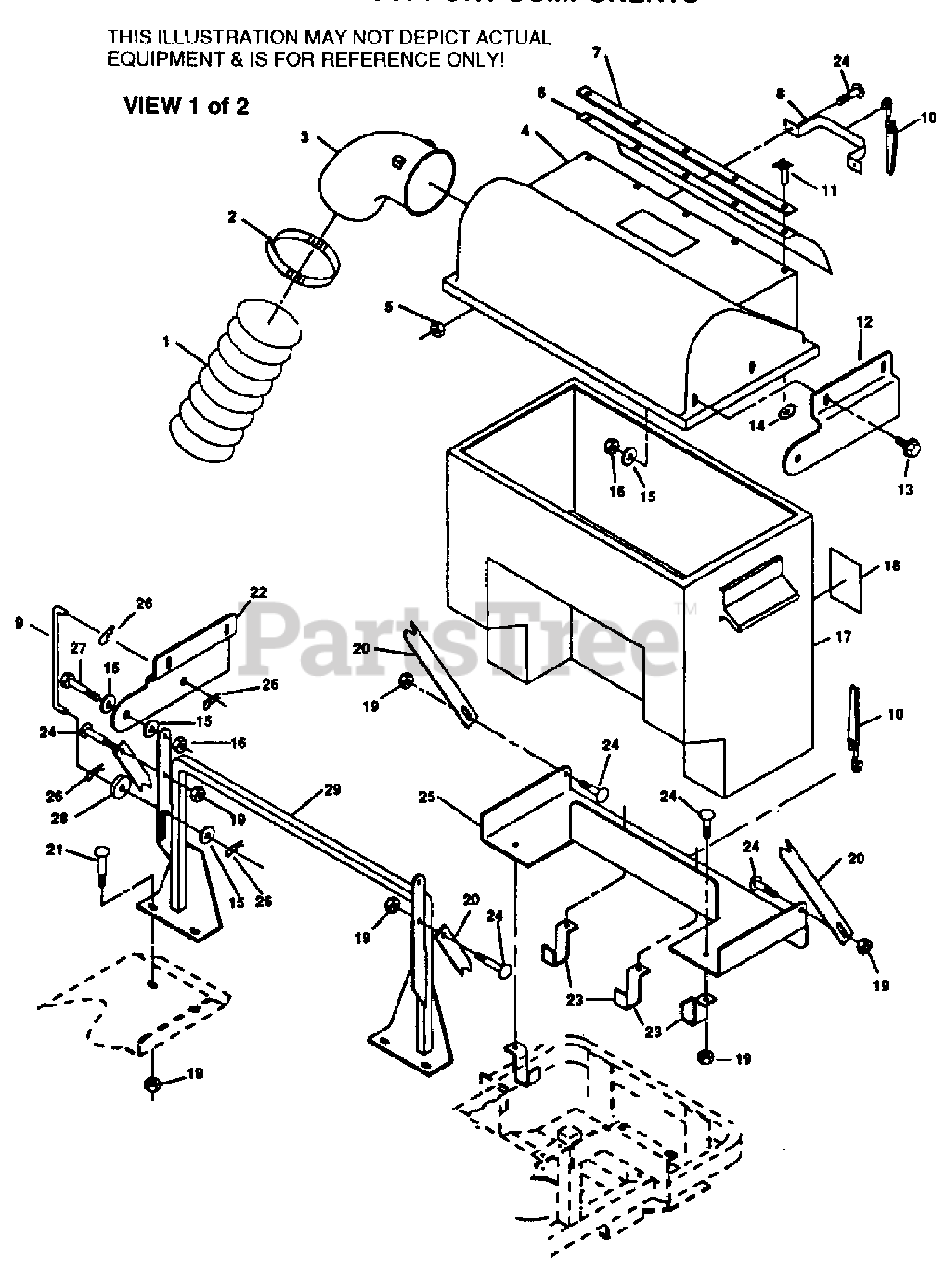

BUCKET SUPPORT COMPONENTS Parts Diagram

  • Title

1

Scag 48135-07

HOSE 6" X 48"

$

$

Not available

2

Scag 48136-01

CLAMP, HOSE

$30.99

$

Usually ships in 2-12 days

0

3

Scag 48909

ELBOW, GRASS CATCHER

$

$

Not available

4

Scag 46512

COVER ASSEMBLY, GRASS CATCHER,(INCL. 6, 7

$

$

Not available

5

Scag 04021-10

NUT, 5/16" ELASTIC STOP

$0.99

$

In Stock, Qty 20+

0

6

Scag 48928

DEFLECTOR, GRASS CATCHER

$67.99

$

Usually ships in 2-12 days

0

7

Scag 421348

BACKING PLATE, DEFLECTOR

$

$

Not available

8

Scag 421300

HANDLE

$

$

Not available

9

Scag 44089

ROD, COVER SUPPORT

$

$

Not available

10

Scag 48137-03

STRAP, RUBBER

$

$

Not available

11

RIVET, POP 3/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

Scag 421305

HINGE, LH

$

$

Not available

13

Scag 04017-27

CAPSCREW, 3/8-16 X 1" SERR. FLANGE

$1.49

$

In Stock, Qty 20+

0

14

WASHER, POP RIVET

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

Scag 04041-07

FLAT WASHER .3/8"(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-09

NUT, 3/8-16 ELASTIC STOP

$0.99

$

In Stock, Qty 20+

0

17

Scag 46563

HOPPER, GRASS CATCHER W/DECAL
(Superseded to 48922)

$

$

Not available

18

Scag 48922

DECAL, HOPPER

$

$

Not available

19

Scag 04019-03

NUT, 5/16-18 SERR FLANGE HEX HD.

$0.99

$

In Stock, Qty 20+

0

20

Scag 421309

BRACE

$

$

Not available

21

CARRIAGE BOLT 5/16-18 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

22

Scag 421306

HINGE, RH

$

$

Not available

23

Scag 421308

CLAMP, TRAY

$

$

Not available

24

CARRIAGE BOLT 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

Scag 421307

TRAY
(Superseded to 421432)

$

$

Not available

26

Scag 04062-02

HAIR PIN, .080 DIA X 1.19

$0.99

$

In Stock, Qty 20+

0

27

BOLT, HEX HEAD 3/8-16 X 1-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

28

Scag 04041-10

FLAT WASHER, 3/8"

Note: (Used Only On Model(s): 375 X 2" X .06).

$1.99

$

Usually ships in 2-12 days

0

29

Scag 45490

SUPPORT FRAME WELDMENT
(Superseded to 45552)

$

$

Not available

?30

Scag 04001-100

BOLT, HEX HEAD 3/8-16 X 6"

$5.99

$

Usually ships in 2-12 days

0

?31

Scag 42956

WEIGHT BARS

$

$

Not available
