GC-SSZ-48 - Scag Grass Catcher (SN: 0040000 - 0049999) ENGINE SUPPORT COMPONENTS Parts Diagram

Grass Catcher

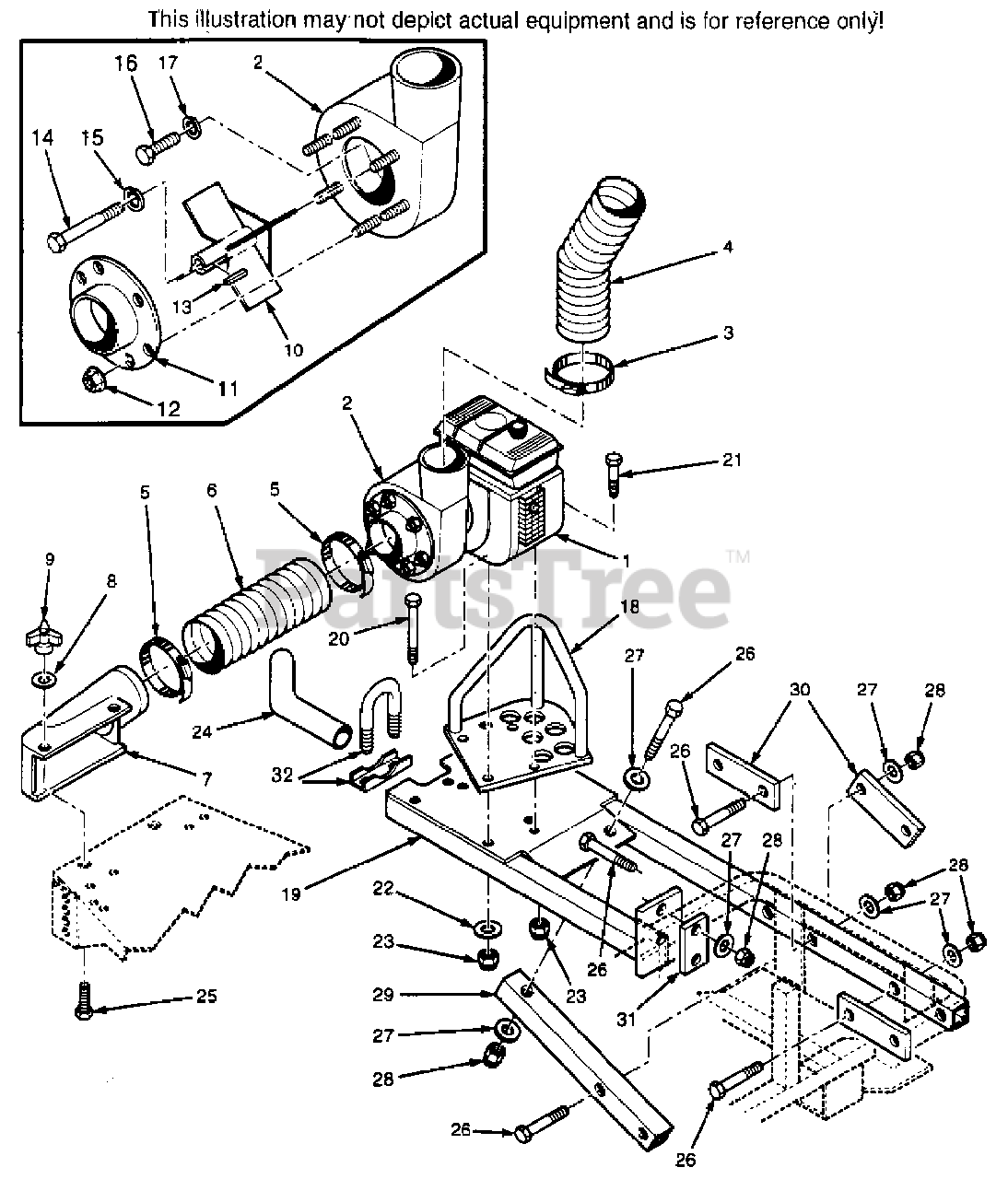

ENGINE SUPPORT COMPONENTS Parts Diagram

  • Title

1

Scag 48173

ENGINE, BRIGGS & STRATTON 5 HP

$

$

Not available

2

Scag 45080

BLOWER HOUSING WELDMENT

$

$

Not available

3

Scag 48136-01

CLAMP, HOSE 6"

$30.99

$

Usually ships in 2-12 days

0

4

Scag 48135-08

HOSE, 6" X 24"

$81.99

$

Usually ships in 2-12 days

0

5

Scag 48136-02

CLAMP, HOSE 8"

$9.99

$

Usually ships in 2-12 days

0

6

Scag 48135-02

HOSE, 8" X 29"
(Superseded to 48135-05)

$123.99

$

Usually ships in 2-12 days

0

7

Scag 48132

BOOT
(Superseded to 481734)

$171.99

$

In Stock, only 1 left!

0

8

FLAT WASHER 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

Scag 04022-04

ELASTIC WING NUT 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

10

Scag 45077

FAN WELDMENT

$

$

Not available

11

Scag 45081

BLOWER INLET ADAPTER

$

$

Not available

12

Scag 04019-03

NUT, SERR. FLANGE 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 04063-06

KEY, .25 X .25 X 1.50

$1.49

$

In Stock, Qty 12

0

14

Scag 04001-65

BOLT, HEX HEAD 3/8-24 X 2.00

$

$

Currently unavailable

15

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-56

BOLT, HEX HEAD 5/16-24 X 1.0

$0.99

$

Usually ships in 2-12 days

0

17

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

18

Scag 45374

ENGINE GUARD WELDMENT

$

$

Not available

19

Scag 45561

ENGINE MOUNTING FRAME

$

$

Not available

20

Scag 04001-92

BOLT, HEX HEAD 5/16-18 X 3.25

$1.49

$

In Stock, only 4 left!

0

21

Scag 04001-12

BOLT, HEX HEAD 5/16-18 X 1.75

$0.99

$

In Stock, Qty 20+

0

22

Scag 04040-15

FLAT WASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 481002

TUBE, EXHAUST

$88.99

$

Usually ships in 2-12 days

0

25

Scag 04001-19

BOLT, HEX HEAD 3/8-16 X 1.00

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-31

BOLT, HEX HEAD 3/8-16 X 2.50

$0.99

$

In Stock, Qty 20+

0

27

Scag 04041-07

FLAT WASHER, 3/8(.391 X .875 X .088)

$0.99

$

In Stock, Qty 20+

0

28

Scag 04021-09

NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 421440

TUBE, LOWER BRACE

$

$

Not available

30

Scag 421443

CLAMP, REAR TUBE

$

$

Not available

31

Scag 421442

CLAMP, FRONT TUBE

$

$

Not available

32

Scag 48633

CLAMP, MUFFLER

$6.49

$

In Stock, only 1 left!

0
