GC-SSZ-48 - Scag Grass Catcher (SN: 0040000 - 0049999) DECK/COUNTER BALANCE COMPONENTS CONTINUED Parts Diagram

Grass Catcher

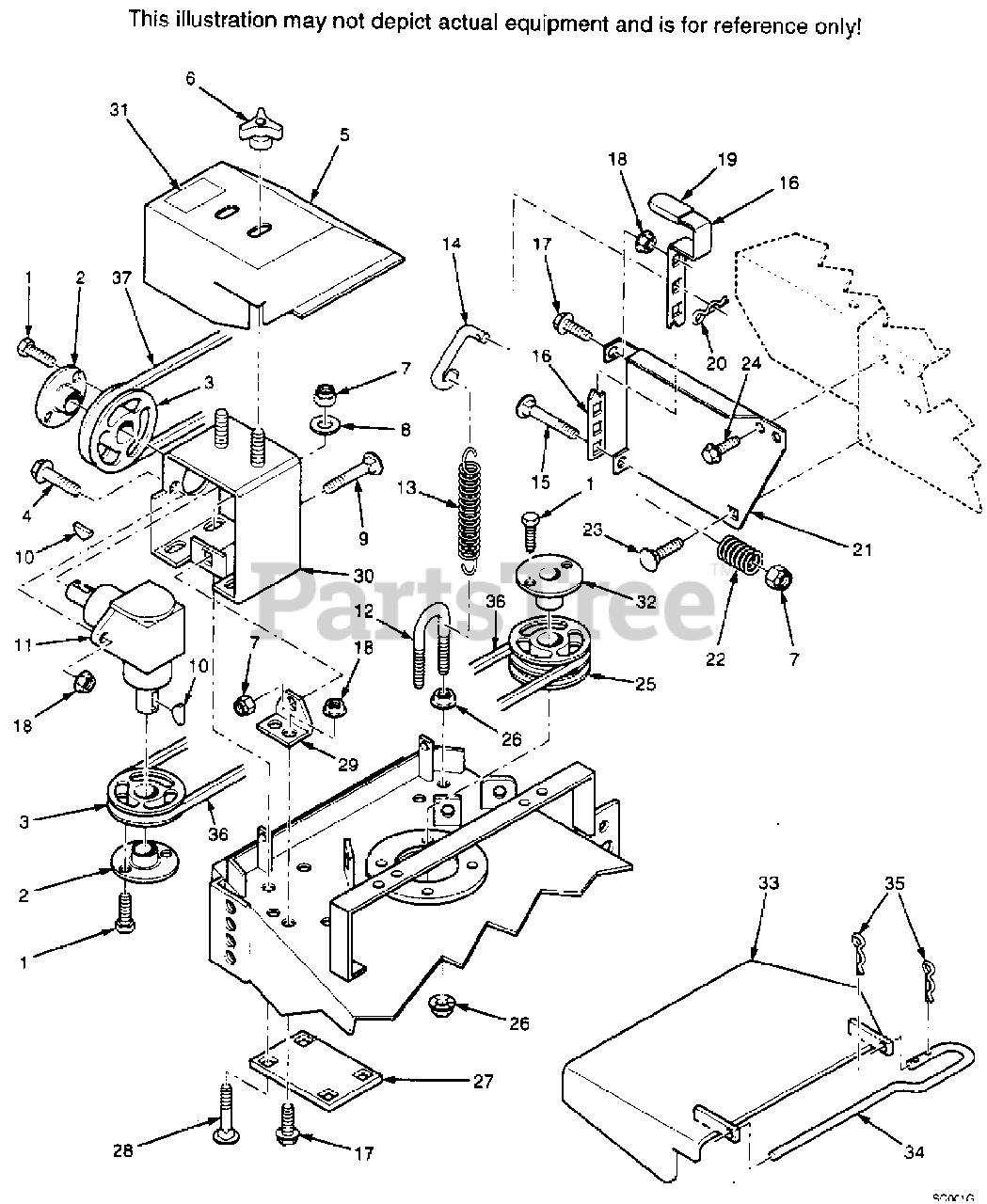

DECK/COUNTER BALANCE COMPONENTS CONTINUED Parts Diagram

  • Title

1

Scag 04001-01

BOLT, HEX HEAD 1/4-20 X .75

$0.99

$

In Stock, Qty 18

0

2

Scag 48248

TAPERED HUB, .875 BORE

$29.99

$

Usually ships in 2-12 days

0

3

Scag 48924

PULLEY, TAPERED BORE 5.80 O.D.
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0

4

Scag 04017-28

CAPSCREW, SERR. FLANGE 3/8-16 X 1.25

$1.49

$

In Stock, Qty 7

0

5

Scag 46559

BELT COVER, W/DECAL
(Superseded to 46757)

$

$

Not available

6

Scag 04029-03

WINGNUT, PLASTIC 3/8-16 X .875

$2.49

$

In Stock, Qty 20+

0

7

Scag 04021-09

NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-07

FLAT WASHER, 3/8(.375 X 2.00 X .060)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04003-03

CARRIAGE BOLT, 3/8-16 X 2.00

$1.49

$

In Stock, Qty 5

0

10

Scag 04063-07

KEY, WOODRUFF #9 3/16 X .75

$0.99

$

In Stock, Qty 12

0

11

Scag 48919

GEAR BOX, 90 DEGREE DRIVE

$

$

Not available

12

Scag 04100-01

U-BOLT, 5/16-18 X 2.19

$4.49

$

In Stock, only 3 left!

0

13

Scag 48755

SPRING, CLUTCH

$10.99

$

In Stock, only 2 left!

0

14

Scag 44093

ROD, COUNTER BALANCE

$

$

Not available

15

Scag 04003-03

CARRIAGE BOLT

$1.49

$

In Stock, Qty 5

0

16

Scag 421346

LEVER, COUNTER BALANCE

$

$

Not available

17

Scag 04017-26

CAPSCREW, SERR. FLANGE 3/8-16 X .75

$1.49

$

Usually ships in 2-12 days

0

18

Scag 04019-04

NUT, SERR. FLANGE 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 48215

GRIP, SHIFT LEVER

$

$

Not available

20

Scag 04062-01

HAIR PIN, .094 X 1.62

$0.99

$

In Stock, Qty 20+

0

21

Scag 421345

MOUNTING BRACKET, COUNTER BALANCE

$

$

Not available

22

Scag 48050

SPRING, COMPRESSION

$

$

Not available

23

Scag 04003-04

CARRIAGE BOLT, 5/16-18 X 1.00

$0.99

$

In Stock, Qty 9

0

24

Scag 04017-16

CAPSCREW, 5/16-18 X .75

$0.99

$

In Stock, Qty 10

0

25

Scag 48923

PULLEY, DOUBLE GROOVE 5.80 O.D.

$110.99

$

In Stock, only 1 left!

0

26

Scag 04019-03

NUT, SERR. FLANGE 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 421325

REINFORCEMENT PLATE, GEAR BOX

$

$

Not available

28

Scag 04003-11

CARRIAGE BOLT, 3/8-16 X 1.25

$0.99

$

In Stock, Qty 7

0

29

Scag 421324

ANCHOR BRACKET, TENSION BOLT

$

$

Not available

30

Scag 45495

SUPPORT WELDMENT, GEAR BOX

$

$

Not available

31

Scag 48073

DECAL, WARNING
(Superseded to 483406)

$2.49

$

In Stock, only 3 left!

0

32

Scag 48141

TAPERED HUB, 1.00 BORE

$29.99

$

In Stock, only 1 left!

0

33

Scag 45331

DISCHARGE CHUTE
(Superseded to 461293)

$68.99

$

Usually ships in 2-12 days

0

34

Scag 44091

ROD, DISCHARGE CHUTE

$

$

Not available

35

Scag 04062-02

HAIR PIN, .080 X 1.19

$0.99

$

In Stock, Qty 20+

0

36

Scag 48913

BELT, GEAR BOX DRIVE

$

$

Not available

37

Scag 48914

BELT, BLOWER DRIVE

$

$

Not available
