GC-SSZ-48 - Scag Grass Catcher (SN: 0040000 - 0049999) DECK/BLOWER HOUSING COMPONENTS Parts Diagram

Grass Catcher

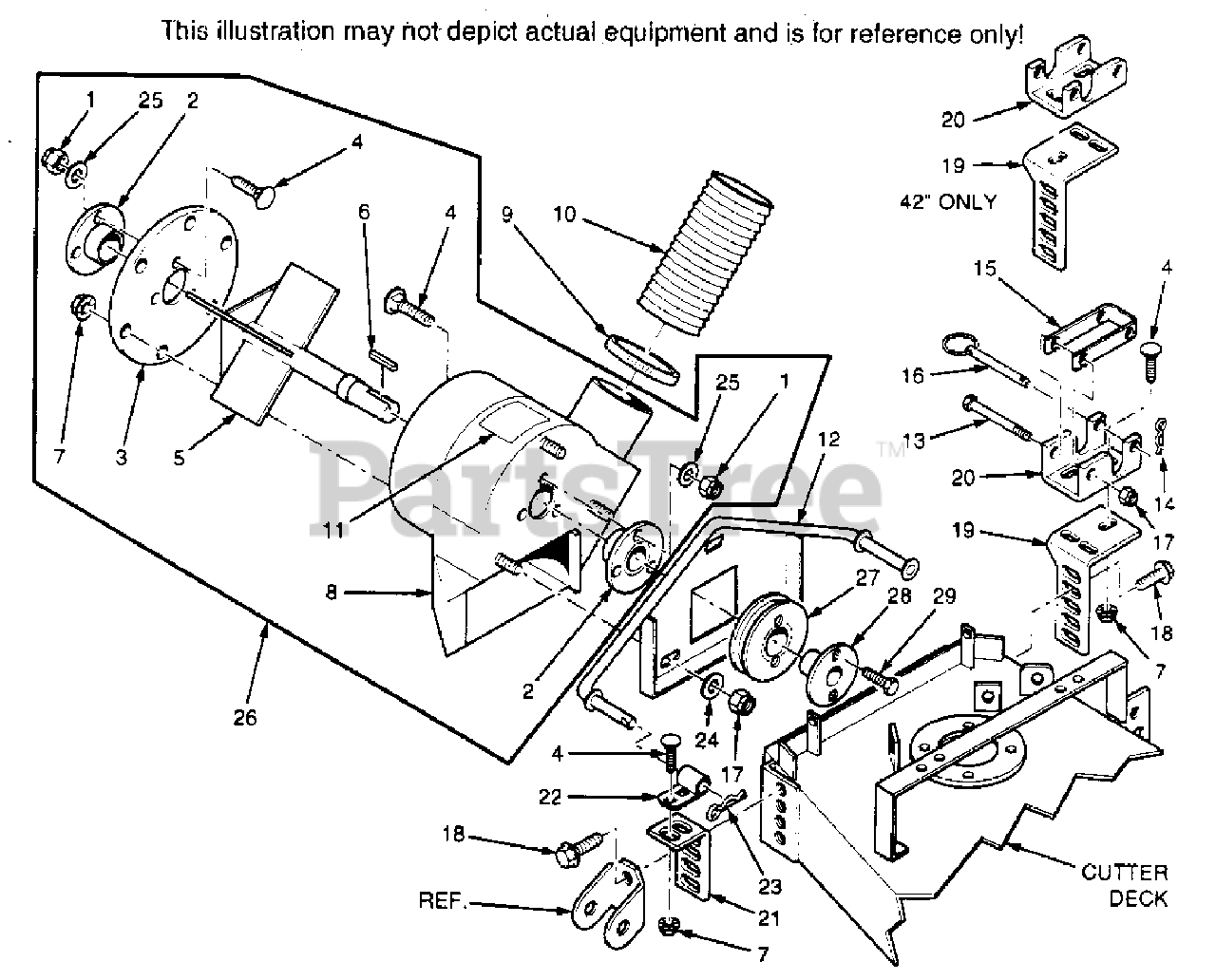

DECK/BLOWER HOUSING COMPONENTS Parts Diagram

  • Title

1

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

2

Scag 48915

BEARING ASSEMBLY

$52.99

$

Usually ships in 2-12 days

0

3

Scag 421319

COVER, BLOWER HOUSING

$51.99

$

In Stock, only 1 left!

0

4

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X .75

$0.99

$

In Stock, Qty 20+

0

5

Scag 45565

FAN WELDMENT

$456.99

$

Usually ships in 2-12 days

0

6

Scag 04063-06

KEY, .25 X .25 X 1.50

$1.49

$

In Stock, only 2 left!

0

7

Scag 04019-03

NUT, SERR. FLANGE 5/16-18

$0.99

$

In Stock, Qty 20+

0

8

Scag 46627

BLOWER HOUSING WELDMENT W/DECALS

$

$

Not available

9

Scag 48136-01

CLAMP, HOSE

$30.99

$

Usually ships in 2-12 days

0

10

Scag 48135-07

HOSE, 6" X 48"

$146.99

$

Usually ships in 2-12 days

0

11

Scag 48236

DECAL, DANGER
(Superseded to 483391)

$3.49

$

Usually ships in 2-12 days

0

12

Scag 45583

BLOWER MOUNTING WELDMENT

$

$

Not available

13

Scag 04001-30

BOLT, HEX HEAD 3/8-16 X 4"

$1.49

$

In Stock, only 2 left!

0

14

Scag 04062-01

HAIR PIN, .094 DIA. X 1.62

$0.99

$

In Stock, Qty 20+

0

15

Scag 421484

LATCH

$68.99

$

Usually ships in 2-12 days

0

16

Scag 04067-04

RING PIN

$15.99

$

Usually ships in 2-12 days

0

17

Scag 04021-09

NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04017-27

CAPSCREW, SERR. FLANGE 3/8-16 X 1

$1.49

$

In Stock, Qty 20+

0

20

Scag 421483

LATCH PLATE

$

$

Not available

21

Scag 421495

MOUNTING BRACKET, FRONT

$

$

Not available

22

Scag 45582

MOUNTING WELDMENT, FRONT

$

$

Not available

23

Scag 04062-03

HAIR PIN, .148 DIA. X 2.75

$1.49

$

Usually ships in 2-12 days

0

24

Scag 04041-07

FLAT WASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

25

Scag 04040-04

FLAT WASHER, 5/16(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

26

Scag 46625

BLOWER HOUSING ASSEMBLY

$

$

Not available

28

Scag 48141

TAPERED HUB, 1.00 BORE

$30.99

$

In Stock, only 1 left!

0

29

Scag 04001-01

BOLT, HEX HEAD .25-20 X .75

$0.99

$

In Stock, Qty 18

0
