GC-SSZ-48 - Scag Grass Catcher (SN: 0040000 - 0049999) BUCKET SUPPORT COMPONENTS/WEIGHT KIT 48 Parts Diagram

Grass Catcher

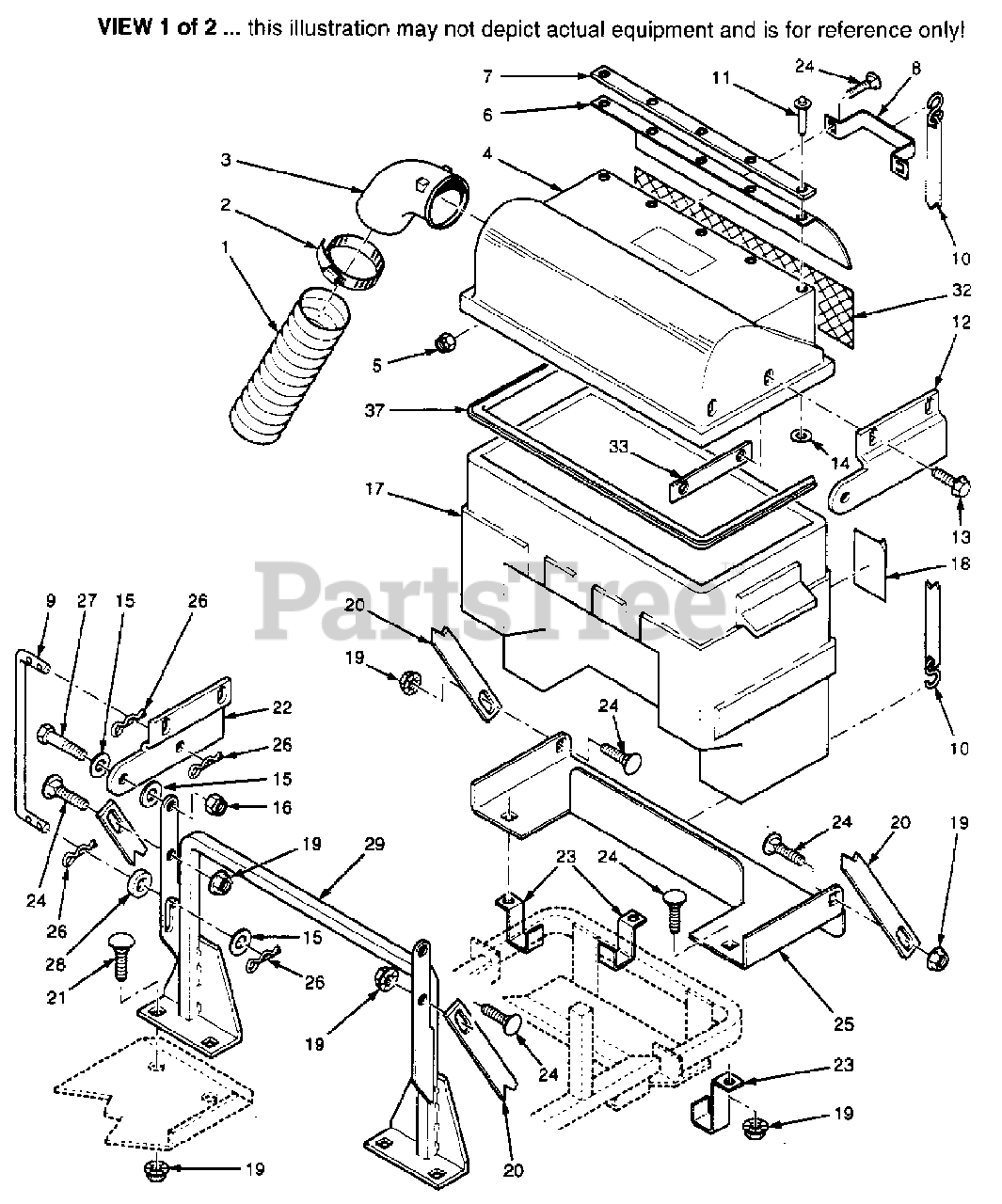

BUCKET SUPPORT COMPONENTS/WEIGHT KIT 48 Parts Diagram

  • Title

1

Scag 48135-07

HOSE, 6" X 48"

$

$

Not available

2

Scag 48136-01

CLAMP, HOSE

$30.99

$

Usually ships in 2-12 days

0

3

Scag 48909

ELBOW, GRASS CATCHER(INCL. ITEMS 6, 7, 11

$

$

Not available

& 14)

$

$

Not available

4

Scag 46512

COVER ASSEMBLY, GRASS CATCHER

$

$

Not available

5

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 48928

DEFLECTOR, GRASS CATCHER

$67.99

$

Usually ships in 2-12 days

0

7

Scag 421348

BACKING PLATE, DEFLECTOR

$

$

Not available

8

Scag 421300

HANDLE

$

$

Not available

9

Scag 44089

ROD, COVER SUPPORT

$

$

Not available

10

Scag 48137-03

STRAP, RUBBER

$

$

Not available

11

RIVET, POP 3/16"

$

$

Not available

12

Scag 421421

HINGE, LH

$

$

Not available

13

Scag 04017-26

CAPSCREW, SERR. FLANGE 5/16-18 X .75

$1.49

$

Usually ships in 2-12 days

0

14

WASHER, POP RIVET

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

Scag 04041-07

FLAT WASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-09

NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 48907

HOPPER, GRASS CATCHER W/DECAL

$

$

Not available

18

Scag 48922

DECAL, HOPPER

$

$

Not available

19

Scag 04019-04

NUT, SERR. FLANGE 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 421309

BRACE

$

$

Not available

21

Scag 04003-04

CARRIAGE BOLT, 5/16-18 X 1.00

$0.99

$

In Stock, Qty 17

0

22

Scag 421422

HINGE, RH

$

$

Not available

23

Scag 421308

CLAMP, TRAY

$

$

Not available

24

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X .75

$0.99

$

In Stock, Qty 20+

0

25

Scag 421432

TRAY

$

$

Not available

26

Scag 04062-02

HAIR PIN, .080 DIA X 1.19

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-20

BOLT, HEX HEAD 3/8-16 X 1.50

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-10

FLAT WASHER, 3/8(.375 X 2.00 X .60)

$1.99

$

Usually ships in 2-12 days

0

29

Scag 45552

SUPPORT FRAME WELDMENT

$

$

Not available

32

Scag 421329

SCREEN
(Superseded to 421689)

$

$

Not available

33

Scag 421418

PLATE, HINGE BACKING

$16.99

$

Usually ships in 2-12 days

0

37

Scag 481017-01

SEAL, RUBBER

$51.99

$

Usually ships in 2-12 days
