GC-F4 (9055) - Scag Fabric Grass Catcher (2007 & Beyond) Velocity Plus Cutter Decks Parts Diagram

Fabric Grass Catcher

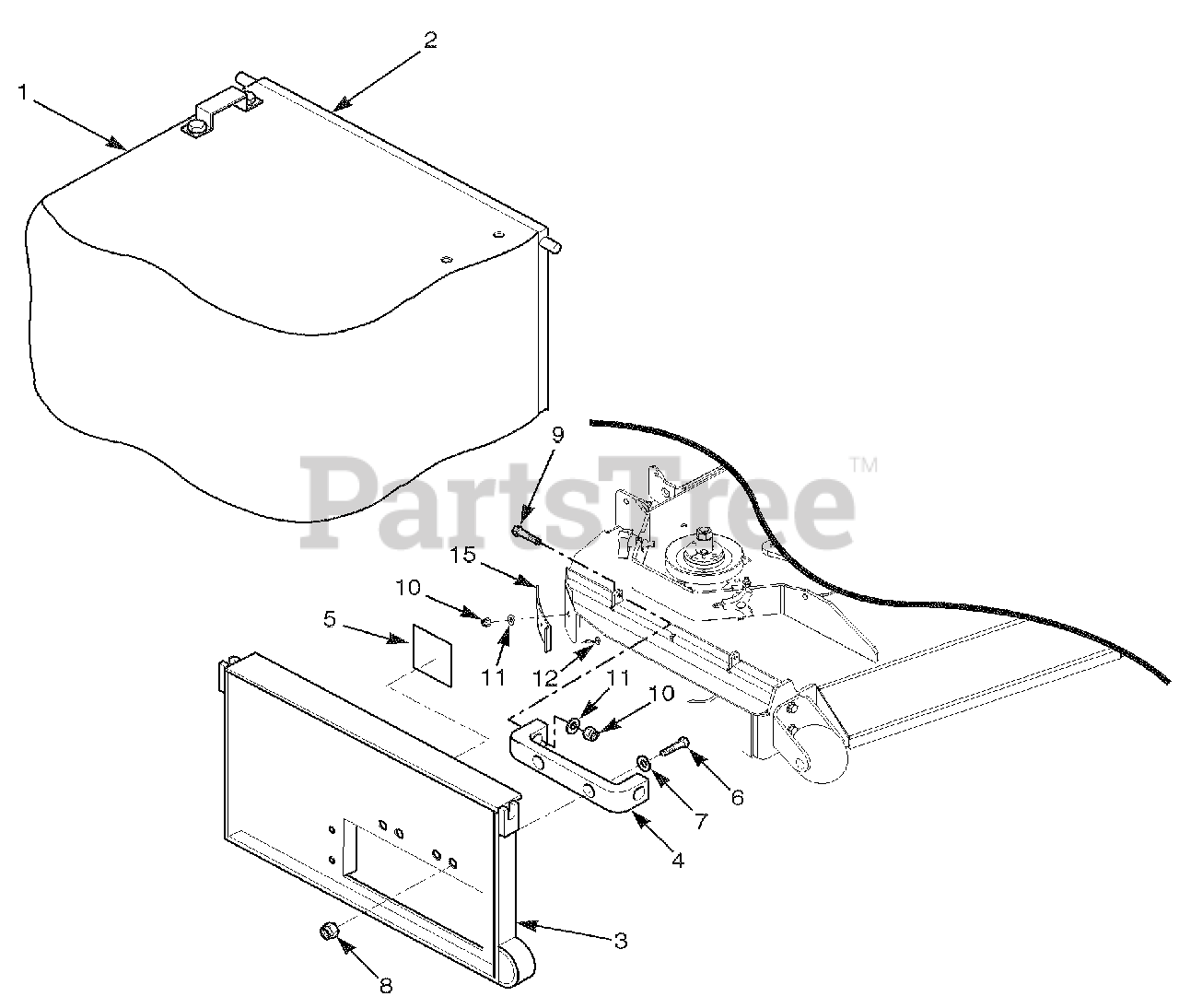

Velocity Plus Cutter Decks Parts Diagram

  • Title

1

Scag 481140

Catcher Bag

$397.99

$

Usually ships in 2-12 days

0

2

Scag 481135

Frame Weldment With Catcher Bag and Handle Assembly

$620.99

$

Usually ships in 2-12 days

0

3

Scag 461875

Cover Weldment With Decal

$390.99

$

In Stock, only 1 left!

0

4

Scag 42211

Bracket, Mounting

$29.99

$

In Stock, only 1 left!

0

5

Scag 483380

Decal, Danger

$10.99

$

Usually ships in 2-12 days

0

6

Scag 04001-20

Bolt, 3/8-16 x 1-1/2" Hex Head

$0.99

$

In Stock, Qty 20+

0

7

Scag 04041-07

Flat Washer, 3/8"

Note: (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

10

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

11

Scag 04040-15

Flat Washer, 5/16"

Note: (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

14

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

15

Scag 424835

Filler Plate, Grass Catcher Velocity Plus Decks

$84.99

$

Usually ships in 2-12 days

0
