GC-CS - Scag Clam Shell Grass Catcher (SN: K3400001 - K3499999) SCZ 48"/52" STCII 48"/52"/61" Hopper Support Components Parts Diagram

Clam Shell Grass Catcher

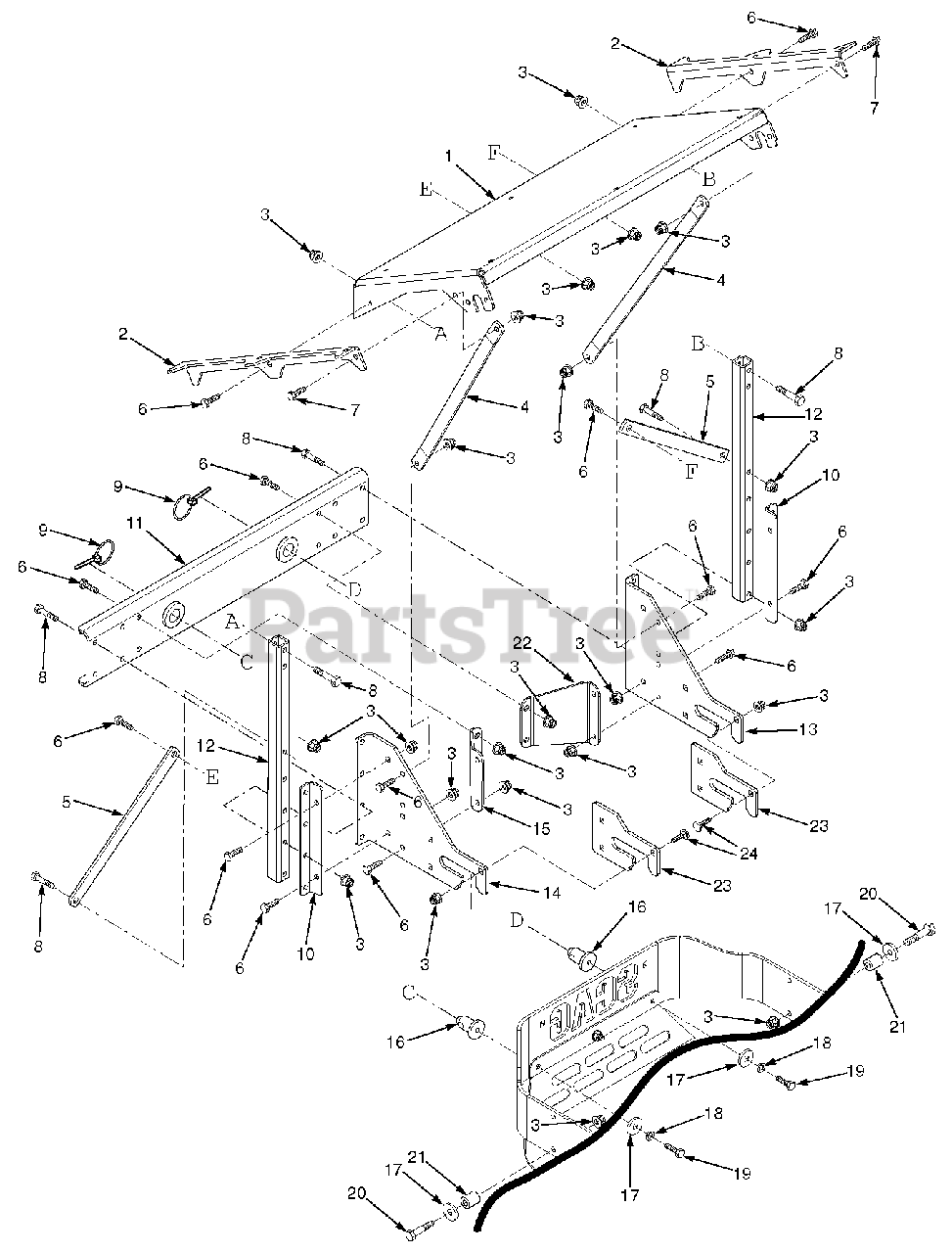

SCZ 48"/52" STCII 48"/52"/61" Hopper Support Components Parts Diagram

  • Title
1

Scag 426019

Support Frame, Hopper
(Superseded to 429154)

$218.99

$

Usually ships in 0 days

0

2

Scag 426020

Bracket, Hopper Support

$38.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Elastic Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 426021

Brace, Stiffener

$15.99

$

Usually ships in 2-12 days

0

5

Scag 422386

Brace, Engine Mount

$13.99

$

Usually ships in 2-12 days

0

6

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

7

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04066-04

Quick Pin

$6.99

$

In Stock, Qty 8

0

10

Scag 426012

Mounting Bracket, Tube

$19.99

$

Usually ships in 2-12 days

0

11

Scag 452382

Mounting Bracket Weldment

$

$

Not available

12

Scag 426015

Tube, Upright

$59.99

$

Usually ships in 2-12 days

0

13

Scag 426011

Mounting Bracket, GC R.H.

$87.99

$

Usually ships in 2-12 days

0

14

Scag 426010

Mounting Bracket, GC L.H.

$56.99

$

Usually ships in 2-12 days

0

15

Scag 426017

Angle Bracket, GC

$76.99

$

Usually ships in 2-12 days

0

16

Scag 43884

Pin, GC Locator

$30.99

$

Usually ships in 2-12 days

0

17

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Ga.

$1.99

$

In Stock, only 4 left!

0

18

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

19

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

20

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 43886

Spacer

$7.49

$

In Stock, only 3 left!

0

22

Scag 426016

Angle Bracket, GC

$76.99

$

Usually ships in 2-12 days

0

23

Scag 426024

Wear Plate, GC

$21.99

$

Usually ships in 2-12 days

0

24

Scag 04003-22

Bolt, Carriage 3/8-16 x 1-1/4"

$1.99

$

In Stock, Qty 7

0
