GC-CS (06350) - Scag Clam Shell Grass Catcher (SN: R4000001 - R4099999) SCZ-61" / SCZII-61" STT 52"/61" & STTII 52"/61" HOPPER COMPONENTS Parts Diagram

Clam Shell Grass Catcher

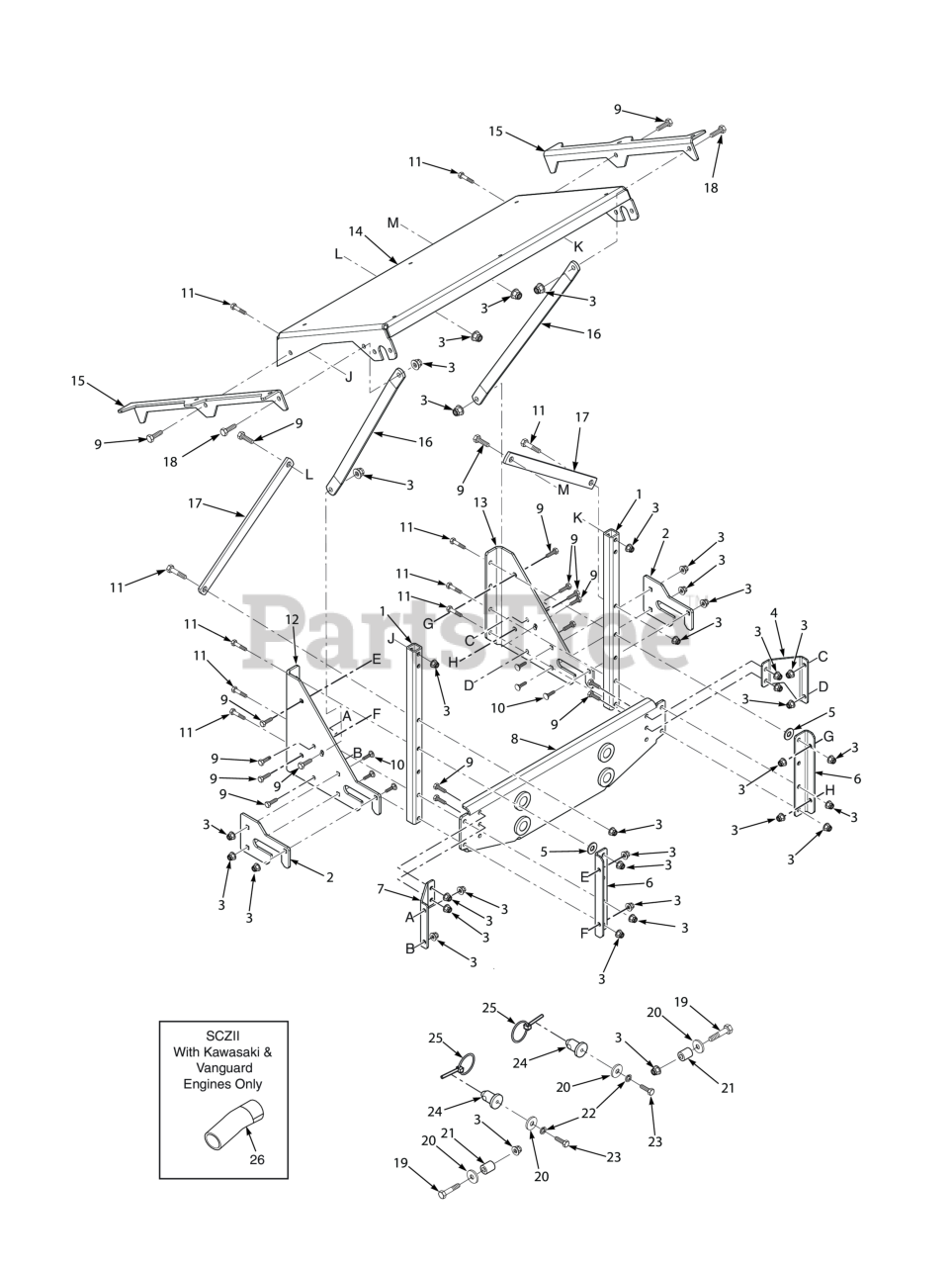

SCZ-61" / SCZII-61" STT 52"/61" & STTII 52"/61" HOPPER COMPONENTS Parts Diagram

  • Title

1

Scag 426385

Tube, Upright

$59.99

$

Usually ships in 2-12 days

0

2

Scag 426024

Wear Plate, GC

$21.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 426089

Angle Brace, LH GC

$21.99

$

Usually ships in 2-12 days

0

5

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 20+

0

6

Scag 426088

Mounting Bracket, GC Tube

$20.99

$

Usually ships in 2-12 days

0

7

Scag 426090

Angle Brace, RH GC

$22.99

$

Usually ships in 2-12 days

0

8

Scag 452416

Mounting Bracket Weldment

$153.99

$

Usually ships in 2-12 days

0

9

Scag 04001-16

Bolt, Hex Head 3/8-16 x 1"

$

$

Currently unavailable

10

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

11

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

12

Scag 426087

RH Mounting Bracket, GC
(Superseded to 429156)

$97.99

$

Usually ships in 0 days

0

13

Scag 426086

LH Mounting Bracket, GC
(Superseded to 429155)

$97.99

$

Usually ships in 0 days

0

14

Scag 428293

Support Frame, Hopper
(Superseded to 429154)

$218.99

$

Usually ships in 0 days

0

15

Scag 426020

Bracket, Hopper Support

$38.99

$

Usually ships in 2-12 days

0

16

Scag 423830

Brace Stiffener, Short

$21.99

$

Usually ships in 2-12 days

0

17

Scag 422386

Brace, Engine Mounting

$13.99

$

Usually ships in 2-12 days

0

18

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

19

Scag 04041-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$20.99

$

In Stock, Qty 7

0

20

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

21

Scag 43886

Spacer

$7.49

$

In Stock, Qty 14

0

22

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8

$0.99

$

In Stock, Qty 9

0

24

Scag 43884

Pin, GC Locator

$30.99

$

In Stock, Qty 6

0

25

Scag 04066-04

Quick Pin, 5/16" Dia.

$6.99

$

In Stock, Qty 8

0

26

Scag 486660

Pipe, Muffler Extension - FX921

$14.99

$

Usually ships in 2-12 days

0

Scag 486659

Pipe, Muffler Extension - 37 BV-EFI

$18.99

$

Usually ships in 2-12 days

0
