GC-CS (06335) - Scag Clam Shell Grass Catcher (SN: P3600001 - P3699999) GC-CS HOPPER COMPONENTS Parts Diagram

Clam Shell Grass Catcher

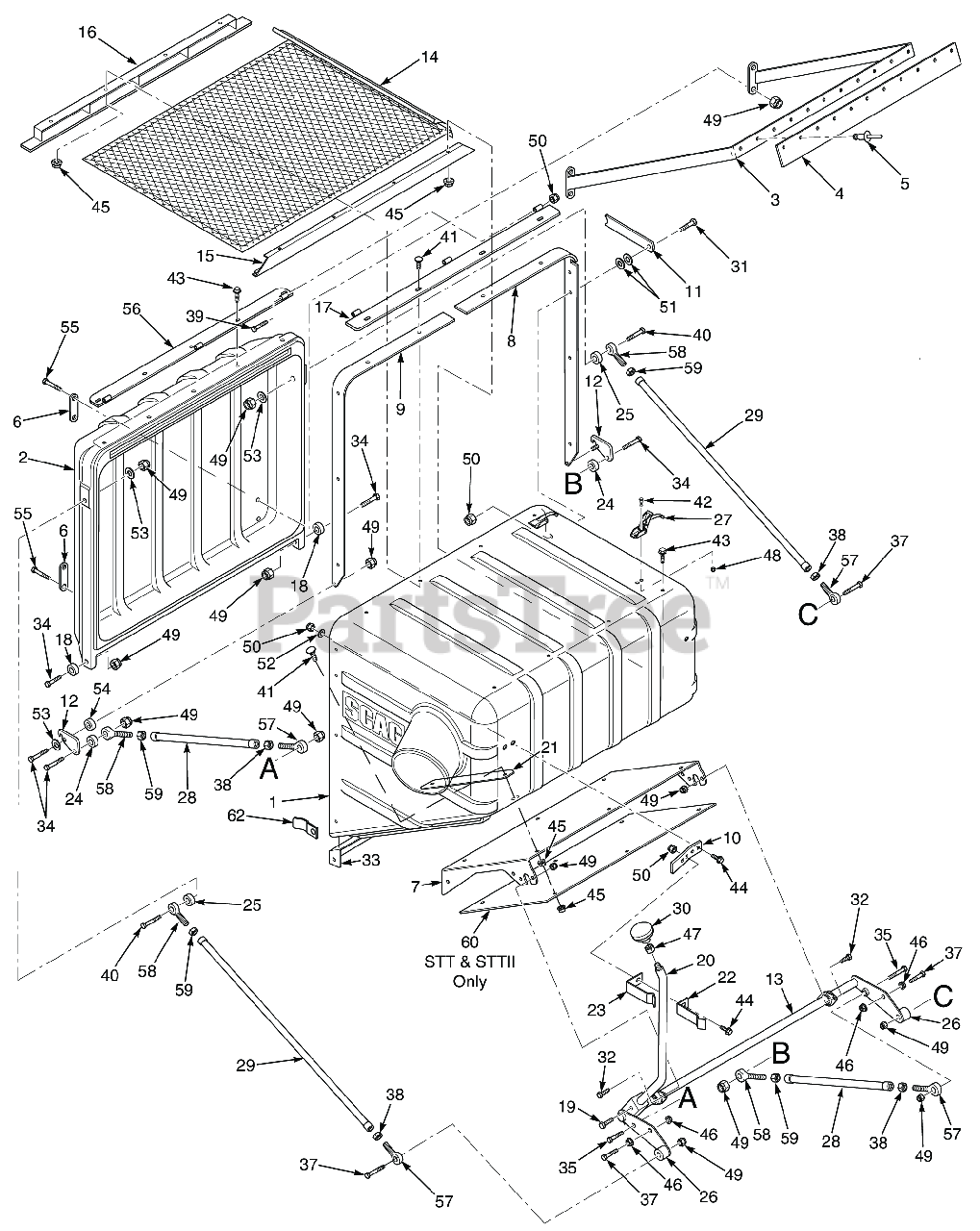

GC-CS HOPPER COMPONENTS Parts Diagram

  • Title

1

Scag 483038

Hopper, GC-STT-CS

$368.99

$

Usually ships in 2-12 days

0

2

Scag 482732

Door, GC-CS

$426.99

$

Usually ships in 2-12 days

0

3

Scag 461626

Sweeper Weldment, GC-CS

$111.99

$

Usually ships in 2-12 days

0

4

Scag 482777

Pad, Rubber

$30.99

$

Usually ships in 2-12 days

0

5

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

6

Scag 423834

Plate, Stiffener

$9.99

$

Usually ships in 2-12 days

0

7

Scag 426019

Support Frame, Hopper
(Superseded to 429154)

$218.99

$

Usually ships in 0 days

0

8

Scag 423849

Hinge Bracket, L.H.

$62.99

$

Usually ships in 2-12 days

0

9

Scag 423850

Hinge Bracket, R.H.

$63.99

$

Usually ships in 2-12 days

0

10

Scag 425802

Mounting Bracket, Dump Handle Latch

$18.99

$

Usually ships in 2-12 days

0

11

Scag 423837

Latch, Door Prop

$18.99

$

Usually ships in 2-12 days

0

12

Scag 423840

Plate, Latch

$10.99

$

In Stock, only 2 left!

0

13

Scag 451980

Bellcrank Weldment, Upper

$216.99

$

Usually ships in 2-12 days

0

14

Scag 451601

Debris Screen Weldment

$270.99

$

Usually ships in 2-12 days

0

15

Scag 451602

Screen Support Weldment, Rear

$100.99

$

Usually ships in 2-12 days

0

16

Scag 451603

Screen Support Weldment, Front

$67.99

$

Usually ships in 2-12 days

0

17

Scag 451607

Hinge Weldment, Hopper

$69.99

$

Usually ships in 2-12 days

0

18

Scag 43631

Spacer, Idler Bearing

$4.99

$

In Stock, Qty 11

0

19

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

19

Scag 04012-10

Nut, 5/16-18 Elastic Stop (Not Shown)

$18.99

$

Usually ships in 2-12 days

0

20

Scag 44185

Rod, Dump Lever GC-SCZ-CS

$107.99

$

Usually ships in 2-12 days

0

21

Scag 423836

Retainer Strip, Hopper

$8.49

$

Usually ships in 2-12 days

0

22

Scag 424405

Latch, Dump Rod Inner

$33.99

$

Usually ships in 2-12 days

0

23

Scag 424406

Latch, Dump Rod Outer

$28.99

$

Usually ships in 2-12 days

0

24

Scag 43063

SPACER, IDLER

$7.99

$

In Stock, only 2 left!

0

25

Scag 43282

SPACER, J PULL ROD

$7.99

$

In Stock, only 1 left!

0

26

Scag 43277

SPACER, J-PULL ROD

$6.49

$

In Stock, Qty 11

0

27

Scag 481309

LATCH, HOOD

$7.99

$

Usually ships in 2-12 days

0

28

Scag 43641

Linkage Assembly, Lower

$87.99

$

Usually ships in 2-12 days

0

29

Scag 43640

Linkage Assembly, Upper

$87.99

$

Usually ships in 2-12 days

0

30

Scag 481245

Knob, Cutter Deck Release

$8.49

$

Usually ships in 2-12 days

0

31

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

33

Scag 423855

Bracket, Lower Stiffener

$72.99

$

Usually ships in 2-12 days

0

33

Scag 423859

Backing Plate, Hopper (Not Shown)

$18.99

$

Usually ships in 2-12 days

0

34

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

36

Scag 423865

Alignment Bracket, GC-CS

$10.99

$

In Stock, only 1 left!

0

37

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

39

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

40

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

41

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 17

0

42

Scag 04010-01

SCREW, PHILLIPS WASHER HEAD #10-32 X 1/2"

$0.99

$

In Stock, Qty 20+

0

43

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

44

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

46

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

47

Scag 04020-12

HEX NUT, JAM 3/8-16

$0.99

$

In Stock, only 3 left!

0

48

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

49

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

50

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

51

Scag 04032-01

Socket Head Capscrew #8-32 x 1/2"

$0.99

$

In Stock, only 3 left!

0

52

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

53

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

54

Scag 43642

Bushing, Hopper Latch GC-CS

$18.99

$

Usually ships in 2-12 days

0

55

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 20+

0

56

Scag 451598

Hinge Weldment, Door

$70.99

$

Usually ships in 2-12 days

0

57

Scag 481539

Rod End Male, 3/8-24 R.H. Thread
(Superseded to 482586)

$20.99

$

Usually ships in 2-12 days

0

58

Scag 481538

Rod End Male, 3/8-24 L.H. Thread
(Superseded to 482585)

$20.99

$

In Stock, only 1 left!

0

59

Scag 04020-26

Nut, 3/8-24 UNF-2B LH Thread

$1.99

$

In Stock, only 4 left!

0

60

Scag 426051

Heat Shield, GC-STT Only

$57.99

$

Usually ships in 2-12 days

0
