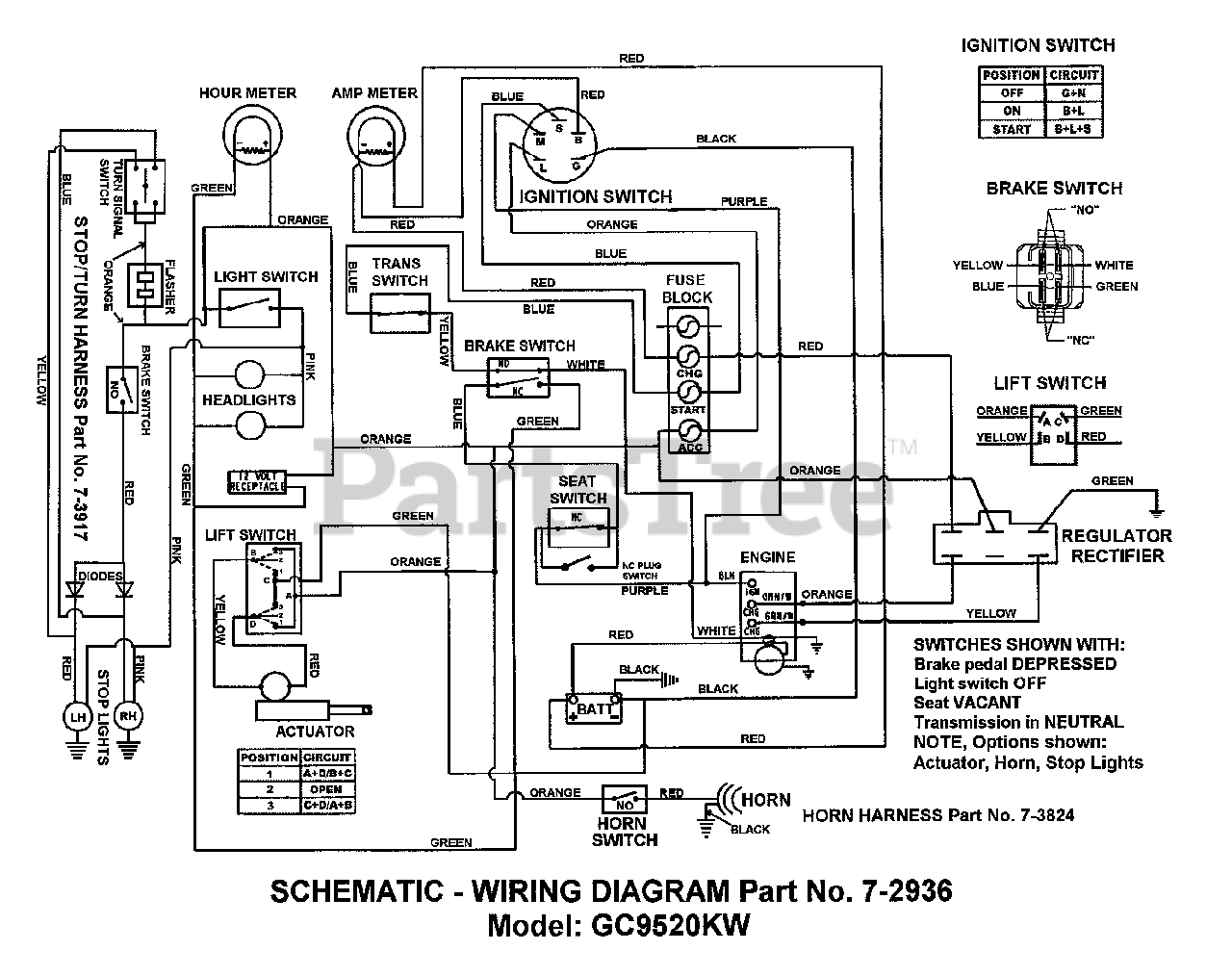

GC 9520KW (84449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Wiring Schematic P/N 72936 Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

Wiring Schematic P/N 72936 Parts Diagram

  • Title

72936

Snapper 7072936

SCHEMATIC - WIRING DIAGRAM
(Superseded to 7072936YP)

Note: Model: GC9520KW

$245.99

$

Usually ships in 2-12 days

0

73824

Snapper 7073824

HORN HARNESS

$

$

Currently unavailable

73917

Snapper 7073917

STOP/TURN HARNESS
(Superseded to 7073917YP)

$259.99

$

Usually ships in 2-12 days

0
