GC 9520KW (84449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Steering Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

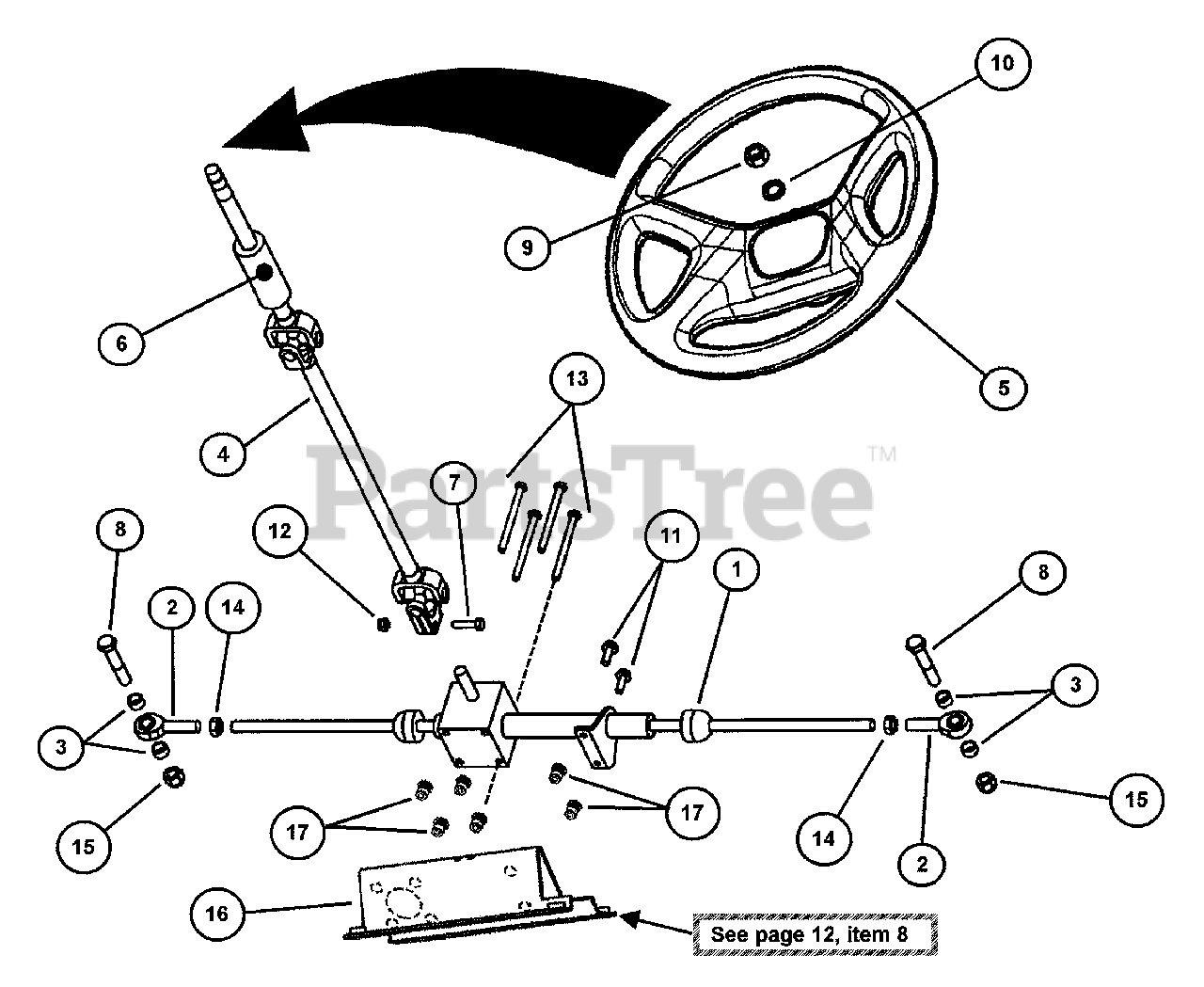

Steering Group Parts Diagram

  • Title

1

Snapper 7072484

RACK & PINION STEERING
(Superseded to 7072484YP)

$854.99

$

Usually ships in 2-12 days

0

2

Snapper 7036465

BALL JOINT 1/2-20
(Superseded to 7036465YP)

$50.99

$

Usually ships in 2-12 days

0

3

Snapper 7072637

SPACER, 1/2 ID, 5/8 OD X .375 YZ

$

$

Not available

4

Snapper 7072582

STEERING COLUMN
(Superseded to 7072582YP)

$410.99

$

Usually ships in 2-12 days

0

5

Snapper 7072997

STEERING WHEEL- SPLINED
(Superseded to 7072997YP)

$61.99

$

Usually ships in 2-12 days

0

6

Snapper 7023667

COVER, STEERING SHAFT
(Superseded to 7023667YP)

Note: Was 72638

$8.49

$

In Stock, only 4 left!

0

7

Snapper 7091527

HHCS, 5/16-18 X 1.25 GR 5 YZ
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

8

Snapper 7090544

HHCS, 1/2-13 X 2-3/4 G R5
(Superseded to 7090544YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7092036

HN, M16 YZ
(Superseded to 7092036YP)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 7092042

SLW, 16MM
(Superseded to 7092042YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7091905

HFLB, 5/16-18 X 7/8 YZ
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091298

HLN, 5/16-18-3B YZ ESNA
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7091058

HHCS, 5/16C X 3-3/4
(Superseded to 7091058YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7090559

HJN, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7091922

HNYL, 1/2-13 YZ
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 7058739

WELDMENT, STEERING BRACKET
(Superseded to 7058739YP)

$92.99

$

Usually ships in 2-12 days

0

17

Snapper 7091761

RIV-NUT, 5/16-18 Round

$

$

Not available
