GC 9520KW (7084449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Wheel Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

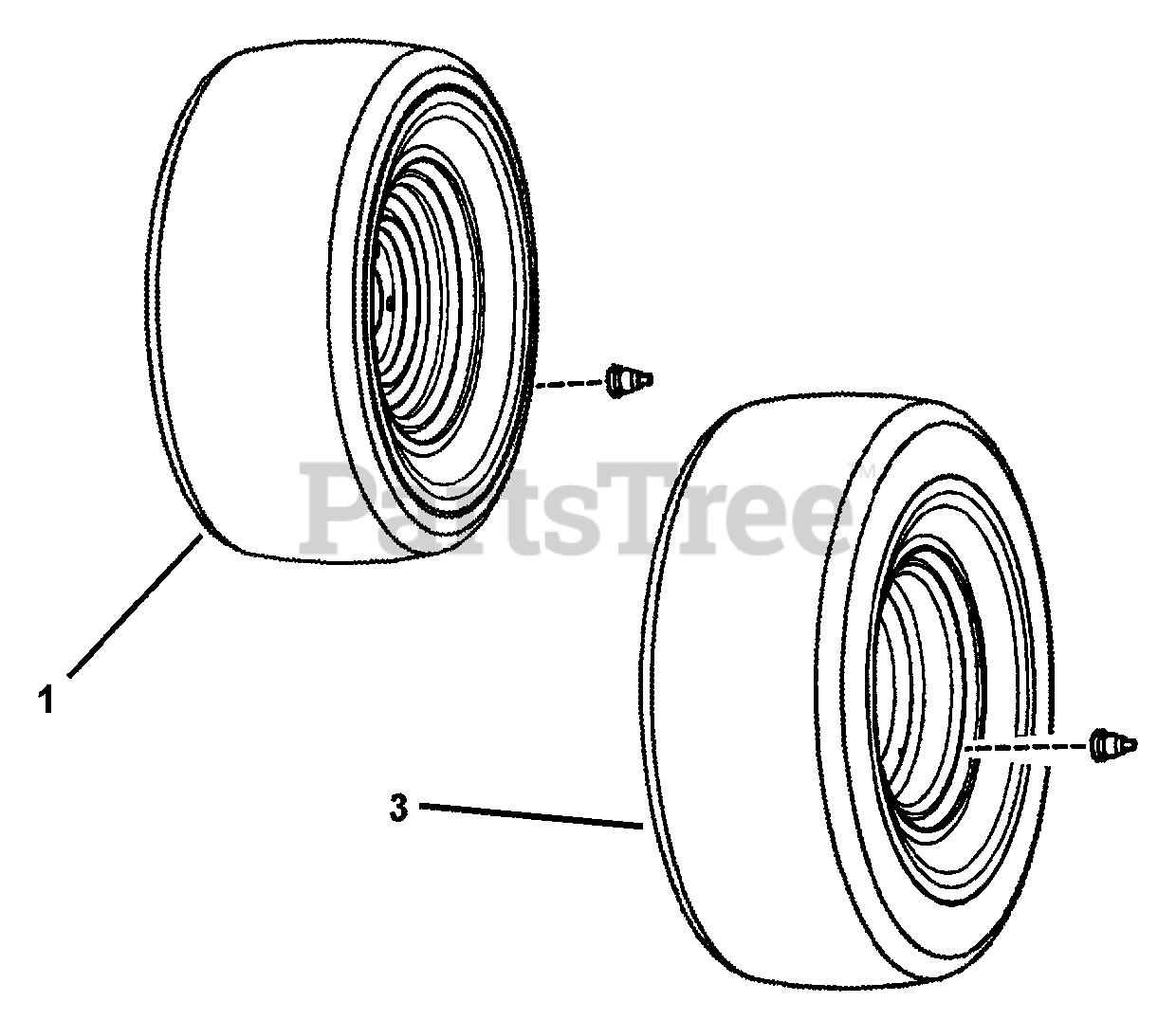

Wheel Group Parts Diagram

  • Title

1

Snapper 7058473

ASSEMBLY, RIGHT HAND FRONT WHEEL

$

$

Currently unavailable

Snapper 7073007

RIM, 10 X 6 W/1.06 OFFSET
(Superseded to 7073007YP)

$245.99

$

Usually ships in 2-12 days

0

Snapper 7073194

TIRE, ATV 22 X 11-10
(Superseded to 7073194YP)

$205.99

$

Usually ships in 2-12 days

0

Snapper 7012234

VALVE, AIR (snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

2

Snapper 7058472

ASSEMBLY, LEFT HAND FRONT WHEEL

Note: (Not Shown)

$

$

Currently unavailable

Snapper 7073007

RIM, 10 X 6 W/1.06 OFFSET
(Superseded to 7073007YP)

$245.99

$

Usually ships in 2-12 days

0

Snapper 7073194

TIRE, ATV 22 X 11-10
(Superseded to 7073194YP)

$205.99

$

Usually ships in 2-12 days

0

Snapper 7012234

VALVE, AIR (snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 7058471

ASSEMBLY, RIGHT HAND REAR WHEEL
(Superseded to 7050531YP)

$467.99

$

Usually ships in 2-12 days

0

Snapper 7073193

RIM, 10 X 6 W/1.25 OFFSET

$

$

Currently unavailable

Snapper 7073195

TIRE, ATV 25 X 12-10
(Superseded to 7073195YP)

$307.99

$

Usually ships in 2-12 days

0

Snapper 7012234

VALVE, AIR (snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 7058470

ASSEMBLY, LEFT HAND REAR WHEEL
(Superseded to 7050530YP)

Note: (Not Shown)

$500.99

$

Usually ships in 2-12 days

0

Snapper 7073193

RIM, 10 X 6 W/1.25 OFFSET

$

$

Currently unavailable

Snapper 7073195

TIRE, ATV 25 X 12-10
(Superseded to 7073195YP)

$307.99

$

Usually ships in 2-12 days

0

Snapper 7012234

VALVE, AIR (snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

Snapper 7063152

KIT, Turf Tire (Utility Vehicle)

Note: (Includes items listed below)

$

$

Not available

Snapper 7058652

ASSEMBLY, Front Wheel (Qty.2)
(Superseded to 7063254YP)

Note: (Includes 1A & 1B)

$319.99

$

Usually ships in 2-12 days

0

Snapper 7073005

TIRE, Titan Multi Trac C/S, 23 x 8.50-12, 4 Ply
(Superseded to 7073005YP)

$239.99

$

Usually ships in 2-12 days

0

Snapper 7073832

RIM, 12 x 7.00 w/1.06 Inset Wheel
(Superseded to 7073832YP)

$239.99

$

Usually ships in 2-12 days

0

Snapper 7058653

ASSEMBLY, Rear Wheel (Qty.2)

Note: (Includes 2A & 2B)

$

$

Not available

Snapper 7072888

TIRE, Titan Multi Trac 26 x 12.00-12, 4 Ply
(Superseded to 7072888YP)

$307.99

$

Usually ships in 2-12 days

0

Snapper 7073823

RIM, 12 8.50 w/.95 Offset Wheel
(Superseded to 7073823YP)

$240.99

$

Usually ships in 2-12 days

0
