GC 9520KW (7084449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Front Clip Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

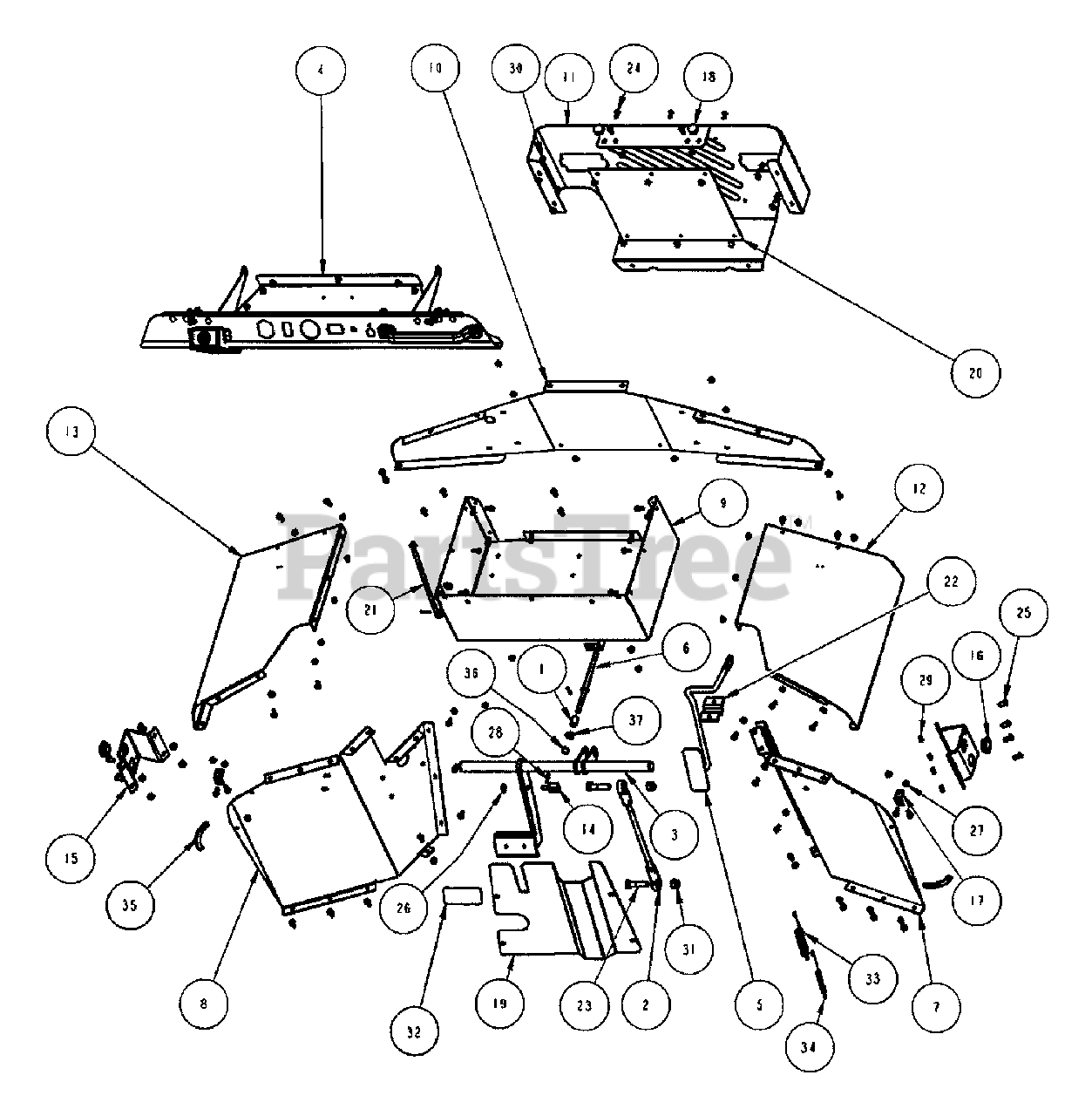

Front Clip Group Parts Diagram

  • Title

1

Snapper 7014432

SPRING, .051 WD X .46 OD X 2FL
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

2

Snapper 7058556

UPPER BRAKE ROD ASSEMBLY

$

$

Not available

3

Snapper 7058647

WELDMENT, CVT BRAKE PEDAL

$

$

Currently unavailable

4

Snapper 7058654

DASH GROUP

Note: (See "Dash Group" illustration and parts list)

$

$

Currently unavailable

5

Snapper 7058748

WELDMENT, THROTTLE PEDAL

$

$

Not available

6

Snapper 7058753

WELDMENT, BRAKE SWITCH ROD
(Superseded to 7058753YP)

$46.99

$

Usually ships in 2-12 days

0

7

Snapper 7072467

FIREWALL, RH

$

$

Currently unavailable

8

Snapper 7072468

FIREWALL, LH
(Superseded to 7072468YP)

$88.99

$

Usually ships in 2-12 days

0

9

Snapper 7072469

TOOLBOX

$

$

Currently unavailable

10

Snapper 7072471

GRILLE, INNER

$

$

Not available

11

Snapper 7072472

GRILLE, OUTER
(Superseded to 7072472YP)

$159.99

$

Usually ships in 2-12 days

0

12

Snapper 7072485

FENDER,RH
(Superseded to 7072485YP)

$66.99

$

Usually ships in 2-12 days

0

13

Snapper 7072486

FENDER, LH
(Superseded to 7072486YP)

$63.99

$

Usually ships in 2-12 days

0

14

Snapper 7072495

SWIVEL, 3/8 W/THRU HOLE
(Superseded to 7072495SM)

$24.99

$

In Stock, only 1 left!

0

15

Snapper 7072497

BRAKE SUPPORT BRACKET

$

$

Currently unavailable

16

Snapper 7072645

BEARING, 1 IN.ID
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 7072710

BRACE, CORNER FENDER

$

$

Currently unavailable

18

Snapper 7072963

BUMPER, ROUND RUBBER

$

$

Currently unavailable

19

Snapper 7072998

PEDAL SHIELD
(Superseded to 7072998YP)

$37.99

$

Usually ships in 2-12 days

0

20

Snapper 7073041

SCREEN, PERF. METAL
(Superseded to 7073041YP)

$26.99

$

Usually ships in 2-12 days

0

21

Snapper 7073050

PROP ROD, HOOD

$

$

Currently unavailable

22

Snapper 7073163

THROTTLE PIVOT BRACKET

$

$

Not available

23

Snapper 7090543

HHCS, 5/16-18 X 2.00 YZ
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

24

Snapper 7090999

PHST, 1/4-20 X 5/8 TORX
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 7091508

RHSSNB, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

26

Snapper 7091528

WASHER, .375 X .875 X.083
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091584

HFLN, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

28

Snapper 7091598

COTTER PIN, 1/8 X 3/4 YZ
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

29

Snapper 7091601

FLN 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7091787

HFLS, 1/4-20 X 5/8
(Superseded to 7091787SM)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7091922

NUT, 1/2-13, LIGHT, NYLOCK
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

32

Snapper 7072502

PEDAL GRIP
(Superseded to 7072502YP)

$2.49

$

Usually ships in 2-12 days

0

33

Snapper 7072600

SPRING, THROTTLE PEDAL RETURN
(Superseded to 7072600YP)

$18.99

$

Usually ships in 2-12 days

0

34

Snapper 7072602

SPRING, INNER THROTTLE RETURN
(Superseded to 7072602YP)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 7073660

EDGE TRIM, 4-1/2 INCH

$

$

Currently unavailable

36

Snapper 7012306

BUSHING, FLG-.38 X .625 X .62
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

37

Snapper 7090122

FLAT WASHER, 3/8 X .075
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
