GC 9520KW (7084449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Air Filter Assembly Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

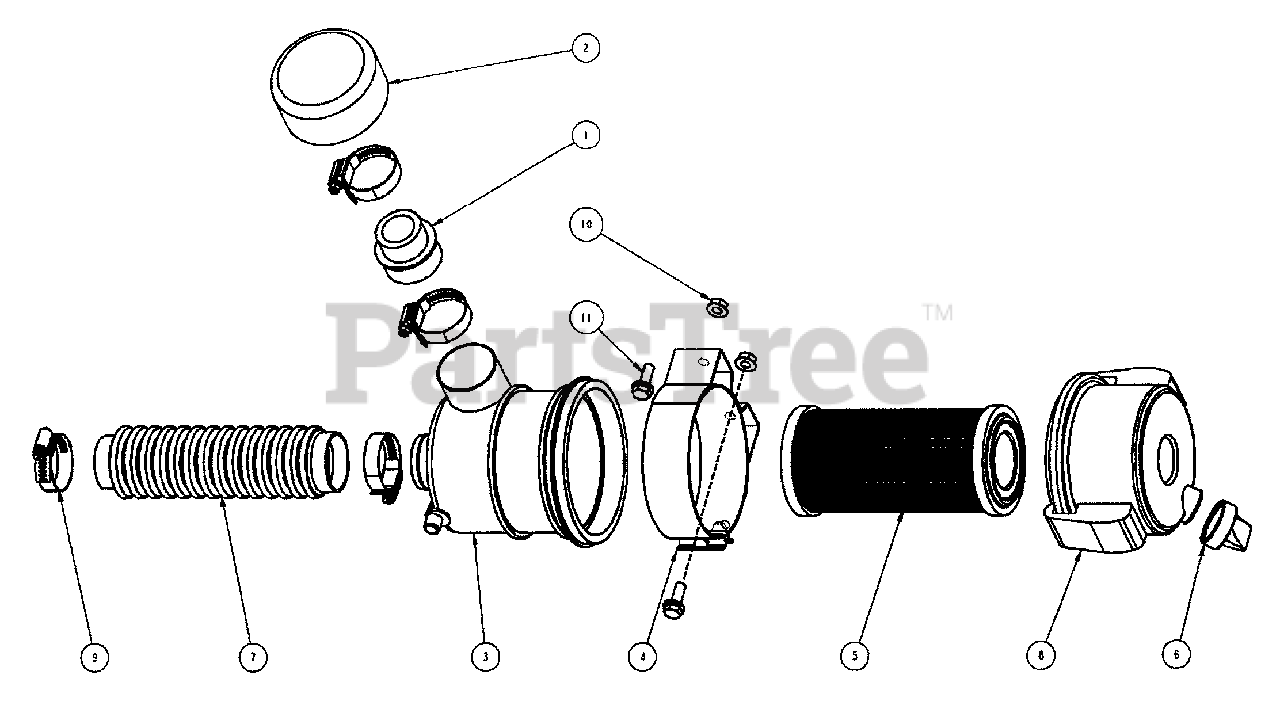

Air Filter Assembly Parts Diagram

  • Title
1

Snapper 7073435

RESTRICTER, AIR CLEANER
(Superseded to 7073435YP)

$93.99

$

Usually ships in 2-12 days

0

2

Snapper 7073436

PRECLEANER
(Superseded to 7073436YP)

$136.99

$

Usually ships in 2-12 days

0

3

Snapper 7073437

FILTER HOUSING
(Superseded to 7073437YP)

$78.99

$

Usually ships in 2-12 days

0

4

Snapper 7073438

MOUNTING BRKT
(Superseded to 7073438YP)

$55.99

$

Usually ships in 2-12 days

0

5

Snapper 7073439

FILTER ELEMENT
(Superseded to 7073439YP)

$

$

Not available

6

Snapper 7073440

DRAIN VALVE
(Superseded to 7073440YP)

$35.99

$

In Stock, only 1 left!

0

7

Snapper 7073441

FLEX TUBE, 1.5 X 1.75 X 8

$

$

Not available

8

Snapper 7073443

CAP, AIR FILTER
(Superseded to 7073443YP)

$121.99

$

Usually ships in 2-12 days

0

9

Snapper 7073488

CLAMP, HOSE
(Superseded to 7073488YP)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 7091601

FLN, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7091905

HFLB, 5/16-18 x 7/8-YZ
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0
