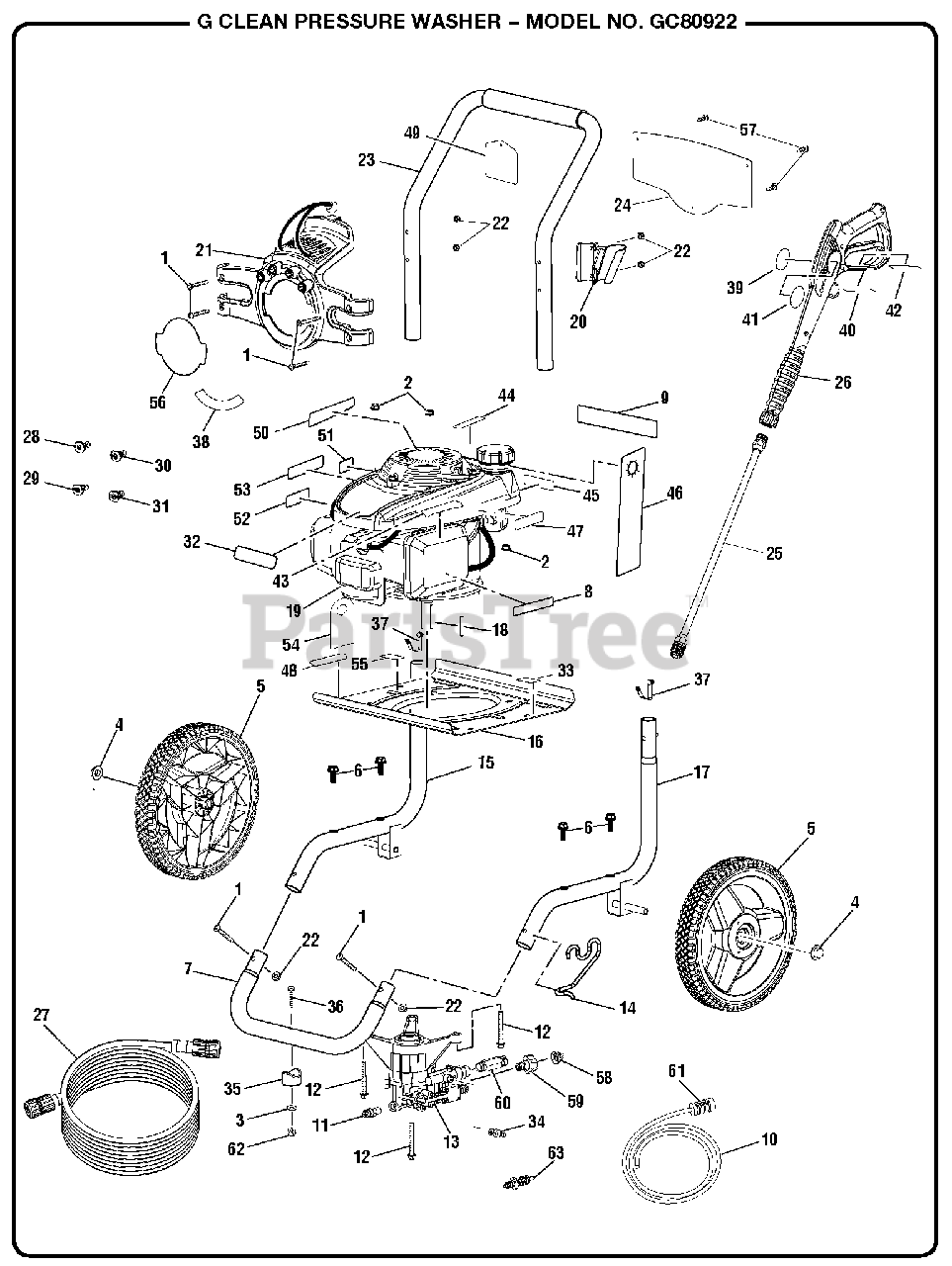

GC 80922 - Homelite G-Clean Pressure Washer General Assembly Parts Diagram

G-Clean Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm,T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678774002

Flange Nut (M8 x 1.25 in.)

$

$

Not available

3

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

4

Homelite 679957001

Cap Nut

$

$

Not available

5

Homelite 308451050

Wheel

$

$

Currently unavailable

6

Homelite 661505020

Bolt (M6 x 16 mm)

$

$

Not available

7

Homelite 310742022

Front Frame Assembly

Note: (Incl. Key Nos. 22 and 34-36)

$

$

Currently unavailable

8

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 940894004

Danger Label

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 561399003

Chemical Siphon Tube

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 678169004

Thermal Release Valve

$

$

Not available

12

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 6

0

13

Homelite 308653045

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

14

Homelite 678243015

Wand Holder Loop

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 310704021

Main Frame Assembly RH

Note: (Incl. Key No. 37)

$

$

Currently unavailable

16

Homelite 638662027

Engine Plate

$31.99

$

In Stock, only 1 left!

0

17

Homelite 310703018

Main Frame Assembly LH

Note: (Incl. Key No. 37)

$

$

Currently unavailable

18

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

19

Engine (Honda)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

20

Homelite 519313007

Wand Holder

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 310673005

Hose and Nozzle Assembly

Note: (Incl. Key No. 38)

$

$

Not available

22

Homelite 678610006

Lock Nut (M6)

$

$

Not available

23

Homelite 308638051

Handle w/Foam

$

$

Currently unavailable

24

Homelite 524408018

Quick Start Panel

$

$

Currently unavailable

25

Homelite 308506006

Spray Wand
(Superseded to 308506014)

$

$

Not available

26

Homelite 308760019

Trigger Handle Assembly

$46.99

$

Usually ships in 3-7 days

0

27

Homelite 308835006

Hose (25 ft.)

$58.99

$

Usually ships in 3-7 days

0

28

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

29

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

30

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

31

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

32

Homelite 940608015

Honda Label

$

$

Currently unavailable

33

Homelite 940676024

Warning Label

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 308452002

Detergent Suction Kit

$5.99

$

Usually ships in 3-7 days

0

35

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

37

Homelite 308421004

Spring Clip

$

$

Not available

38

Homelite 940779100

Performance Label

$

$

Currently unavailable

39

Homelite 940786029

Label (Wand Logo)

$

$

Currently unavailable

40

Homelite 940786006

Sp Label (Wand Warning)

$

$

Not available

41

Homelite 940654084

Label (Wand Warning)

$2.99

$

In Stock, only 1 left!

0

42

Homelite 940654089

Label (Wand Rating)

$1.49

$

In Stock, only 1 left!

0

43

Homelite 941486010

Inquiries Label

$

$

Not available

44

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

45

Homelite 940899002

Do Not Mix Label

$

$

Not available

46

Homelite 940971067

Warning Hangtag

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 941550005

Engine Start Label

$

$

Not available

48

Homelite 941531056

Data Label

$

$

Currently unavailable

49

Homelite 961039005

Nozzle Hangtag

$

$

Not available

50

Homelite 941613003

Release Water Label

$

$

Not available

51

Homelite 940517007

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 940947003

Combustion Label

$

$

Not available

54

Homelite 961454001

Oil Cap Hangtag

$2.49

$

Usually ships in 3-7 days

0

55

Homelite 940871002

Oil Fill Location Label

$1.99

$

Usually ships in 3-7 days

0

56

Homelite 940705194

Performance Label

$

$

Currently unavailable

57

Homelite 660923015

Screw (M3 x 5 in.)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 308662001

Filter Screen

$

$

Not available

59

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

60

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 2 left!

0

61

Homelite 308103015

Chemical Siphon Filter

$2.49

$

In Stock, Qty 5

0

62

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

63

Homelite 310924003

Unloader Valve

$30.99

$

Usually ships in 3-7 days

0

Homelite 900333015

Wire Tie

Note: Not Shown

$

$

Not available

Homelite 990000461

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
