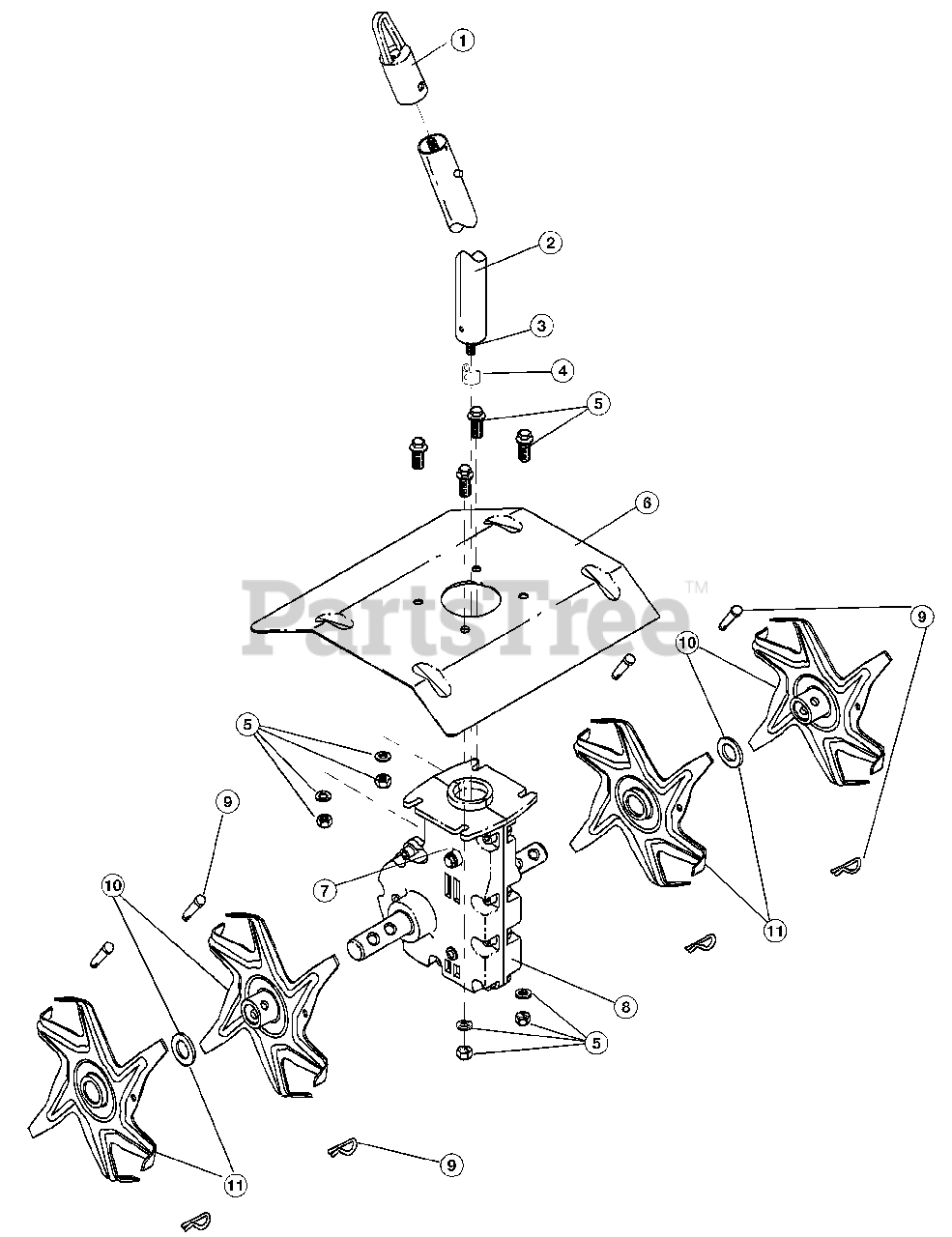

GC 720 R (41AJGC-A034) - Ryobi Trimmer Plus Garden Cultivator Attachment Garden Cultivator Add-On Parts Diagram

Trimmer Plus Garden Cultivator Attachment

Garden Cultivator Add-On Parts Diagram

  • Title
1

MTD 791-612605

Accessory Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

2

MTD 791-180916

Drive Shaft Housing Assembly
(Superseded to 753-08754)

$14.99

$

Usually ships in 3-6 days

0

3

MTD 791-613300

Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

4

MTD 753-04078

Retainer Sleeve

$10.99

$

Usually ships in 3-6 days

0

5

MTD 753-04266

Guard Mounting Hardware Set

$

$

Not available

6

$

$

Currently unavailable

7

MTD 791-180288

Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

8

MTD 791-147474

Gear Box Assembly
(Superseded to 753-04489)

$

$

Not available

9

MTD 791-147473

Tine Fastener Assembly

$

$

Not available

10

MTD 791-147471

Tine Assembly
(Superseded to 791-182729)

Note: (Left Outer or Right Inner)

$

$

Not available

11

MTD 791-147472

Tine Assembly
(Superseded to 791-182730)

Note: (Left Inner or Right Outer)

$

$

Not available
