GC-4D (9054) - Scag Metal Grass Catcher (2007 & Beyond) Velocity Plus Cutter Decks Parts Diagram

Metal Grass Catcher

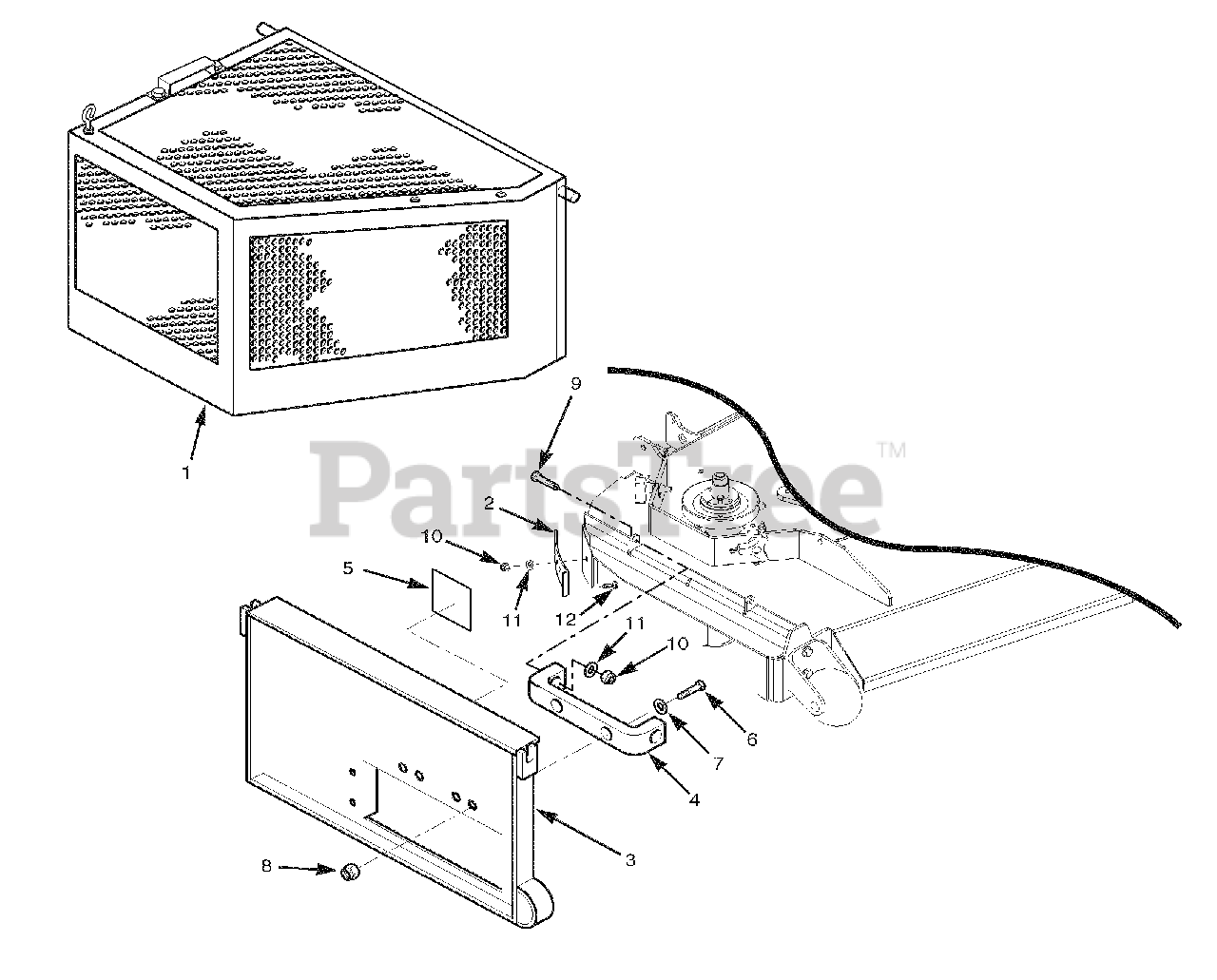

Velocity Plus Cutter Decks Parts Diagram

  • Title
1

Catcher Box

Note: (Not available as a spare part)

$

$

Not available

2

Scag 424835

Filler Plate, Grass Catcher Velocity Plus Decks

$82.99

$

Usually ships in 2-12 days

0

3

Scag 461875

Cover Weldment With Decal

$381.99

$

In Stock, only 1 left!

0

4

Scag 424357

Bracket, Mounting

$82.99

$

In Stock, only 1 left!

0

5

Scag 483380

Decal, Danger

$10.99

$

Usually ships in 2-12 days

0

6

Scag 04001-20

Bolt, 3/8-16 x 1-1/2" Hex Head

$0.99

$

In Stock, Qty 20+

0

7

Scag 04041-07

Flat Washer, 3/8"

Note: (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

10

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

11

Scag 04040-15

Flat Washer, 5/16"

Note: (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0
