Scag GC-3B - Scag Fabric 3-Bag Grass Catcher (SN: K3300001 - K3399999) STCII 48"/52" & SCZ 48"/52" Blower Housing Assembly Parts Lookup with Diagrams

1

Scag 04067-07

Pin, Ring 2-1/4" Long

$10.99

$

Usually ships in 2-12 days

2

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

3

Scag 04019-02

Nut, Serr. Flange 1/4-20

$0.99

$

In Stock, Qty 20+

4

Scag 04019-02

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 20+

5

Scag 483392

Decal, Blower

$3.49

$

Usually ships in 2-12 days

6

Scag 483393

Decal, Rotating Blower

$4.99

$

Usually ships in 2-12 days

7

Scag 481428

Grip, Blower Lever

$4.49

$

Usually ships in 2-12 days

8

Scag 483223

Cap, Square

$1.99

$

Usually ships in 2-12 days

9

Scag 04024-02

Nut, Push On 3/8 Thread

$1.49

$

In Stock, Qty 5

10

Scag 04021-05

Lock Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

11

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

12

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

13

Scag 483173

Pulley, Idler 3-1/2" Dia.

$57.99

$

In Stock, only 1 left!

14

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

15

Scag 04030-04

Lockwasher, 3/8-16

$0.99

$

In Stock, Qty 8

16

Scag 424361

Plate, Catcher Mounting

$45.99

$

Usually ships in 2-12 days

17

Scag 04003-05

Bolt, Carr. 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

18

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$1.49

$

In Stock, Qty 10

19

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2"

$2.49

$

In Stock, only 1 left!

20

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

21

Scag 461939

Idler Arm Assembly

$76.99

$

Usually ships in 2-12 days

22

Scag 483327

Belt, GC-SCZ-48V / STCII-48V

$40.99

$

In Stock, only 1 left!

22

Scag 484728

Belt, GC-SCZ-52V / STCII-52V

$53.99

$

In Stock, only 3 left!

23

Scag 483189

Pulley, 3-1/2" O.D.

$48.99

$

In Stock, only 1 left!

24

Scag 04043-04

Washer, 3/8 Hardened

$0.99

$

In Stock, Qty 20+

25

Scag 43503

Pivot, Idler

$27.99

$

In Stock, Qty 19

26

Scag 483402

Decal, Belt Cover

$3.99

$

In Stock, Qty 5

27

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8

$0.99

$

In Stock, Qty 20+

29

Scag 483391

Decal, Danger

$3.49

$

Usually ships in 2-12 days

30

Scag 461931

Blower Housing Weldment

$380.99

$

Usually ships in 2-12 days

31

Scag 04003-12

Bolt, Carr. 5/16-18 x 3/4" Gr. 5

$0.99

$

In Stock, Qty 20+

32

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

33

Scag 461796

Fan Weldment

$215.99

$

Usually ships in 2-12 days

34

Scag 483034

Bearing Assembly

$39.99

$

In Stock, only 3 left!

35

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

36

Scag 461930

Blower Housing Assembly

$671.99

$

Usually ships in 2-12 days

37

Scag 421319

Cover, Blower Housing

$51.99

$

In Stock, only 1 left!

38

Scag 48136-02

Clamp, 8-5/8" Max Dia.

$10.99

$

In Stock, only 2 left!

39

Scag 462536

Hose, 8.00" Dia. x 53" Long

Note: (incl. #51, 52)

$257.99

$

Usually ships in 2-12 days

40

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

$63.99

$

In Stock, only 4 left!

41

Scag 04012-04

Set Screw, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

42

Scag 462553

Frame, Blower Mount

$282.99

$

Usually ships in 2-12 days

43

Scag 481522

Spring, Main Drive

$33.99

$

In Stock, only 1 left!

44

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

45

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 20+

46

Scag 461723

Adapter w/Strap

$169.99

$

Usually ships in 2-12 days

47

Scag 451821

Receiver Weldment, Mounting Post

$45.99

$

Usually ships in 2-12 days

48

Scag 04062-04

Hair Pin Cotter, .177 x 3-1/4"

$1.99

$

In Stock, Qty 20+

49

Scag 424367

Dust Shield

$2.49

$

Usually ships in 2-12 days

50

Scag 04066-04

Quick Pin, 5/16" Dia.

$7.49

$

In Stock, Qty 8

51

Scag 48135-16

Hose, 8" Dia. x 24" Split

$190.99

$

Usually ships in 2-12 days

52

Scag 48028-11

Cable Tie, .345 X 31.5 Black

$

Currently unavailable 

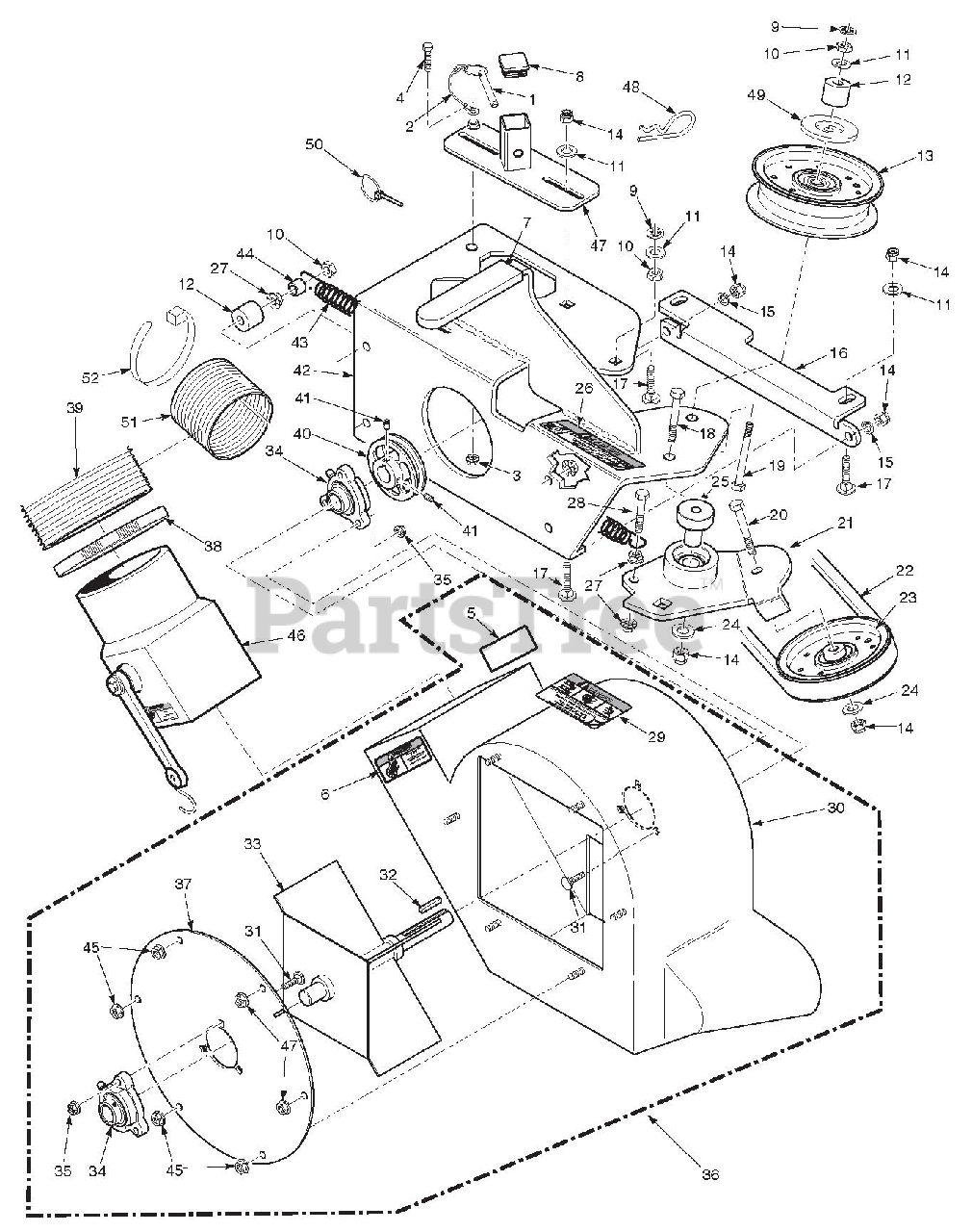

GC-3B - Scag Fabric 3-Bag Grass Catcher (SN: K3300001 - K3399999) STCII 48"/52" & SCZ 48"/52" Blower Housing Assembly Parts Diagram

STCII 48"/52" & SCZ 48"/52" Blower Housing Assembly Parts Diagram
