GC-3B - Scag Fabric 3-Bag Grass Catcher (SN: K3300001 - K3399999) GC-3B Bag Support Components Parts Diagram

Fabric 3-Bag Grass Catcher

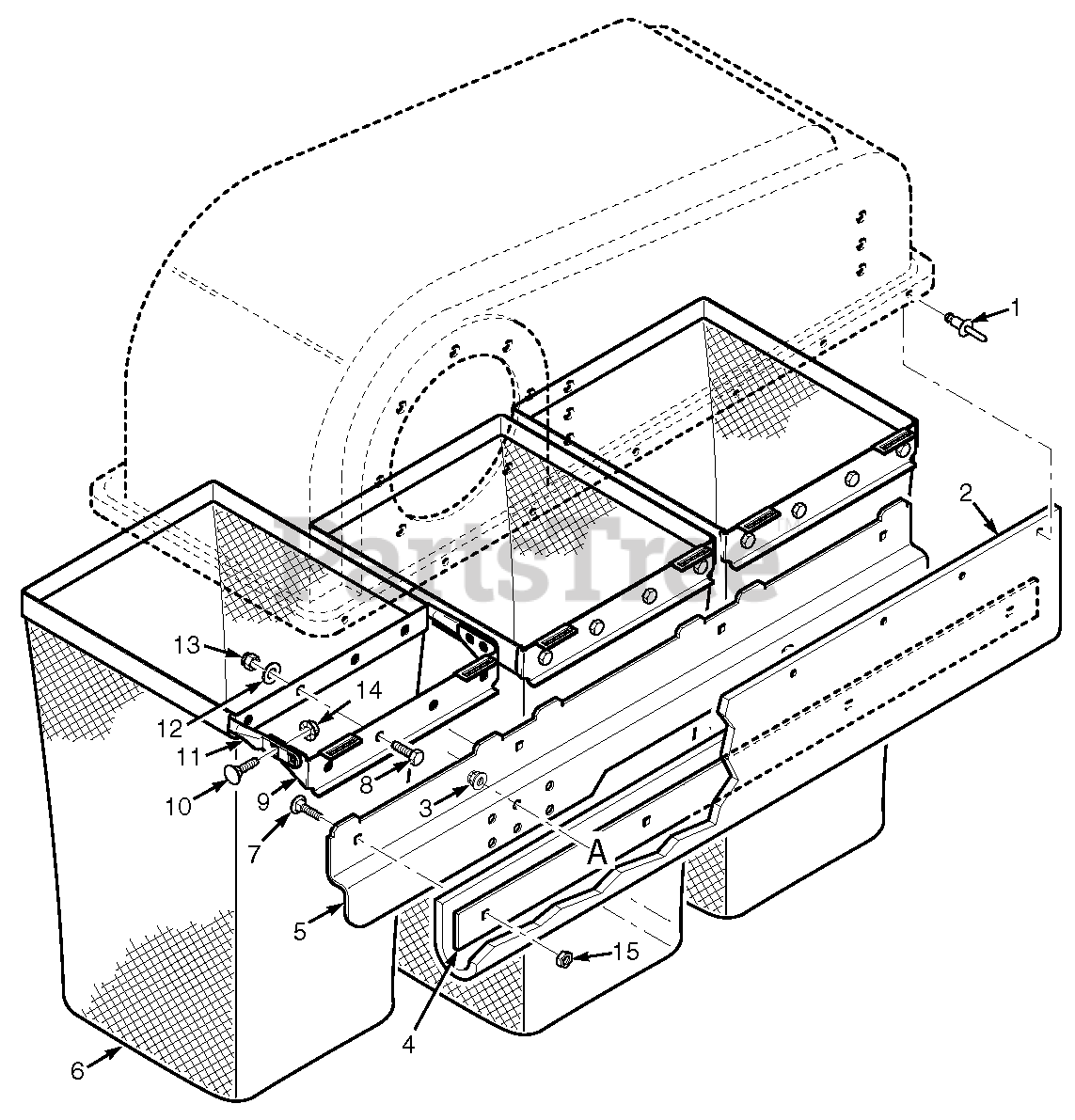

GC-3B Bag Support Components Parts Diagram

  • Title

1

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

2

Scag 482321

Seal, Hood

$23.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Elastic Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 423312

Retainer, Seal

$24.99

$

In Stock, only 3 left!

0

5

Scag 452385

Support, Bag Frame
(Superseded to 453120)

$267.99

$

Usually ships in 2-12 days

0

6

Scag 482569

Bag Assembly
(Superseded to 462968)

$125.99

$

In Stock, only 3 left!

0

7

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 423198

Mount, Bag Frame Tube

$46.99

$

In Stock, only 1 left!

0

10

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 423197

Tube, Bag Support

$88.99

$

Usually ships in 2-12 days

0

12

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
