GC-3B (06377) - Scag Fabric 3-Bag Grass Catcher (SN: T0600001 - T0699999) SCZ-61" / SCZII-61" STT 52"/61" & STTII 52"/61" BLOWER MOUNTING COMPONENTS Parts Diagram

Fabric 3-Bag Grass Catcher

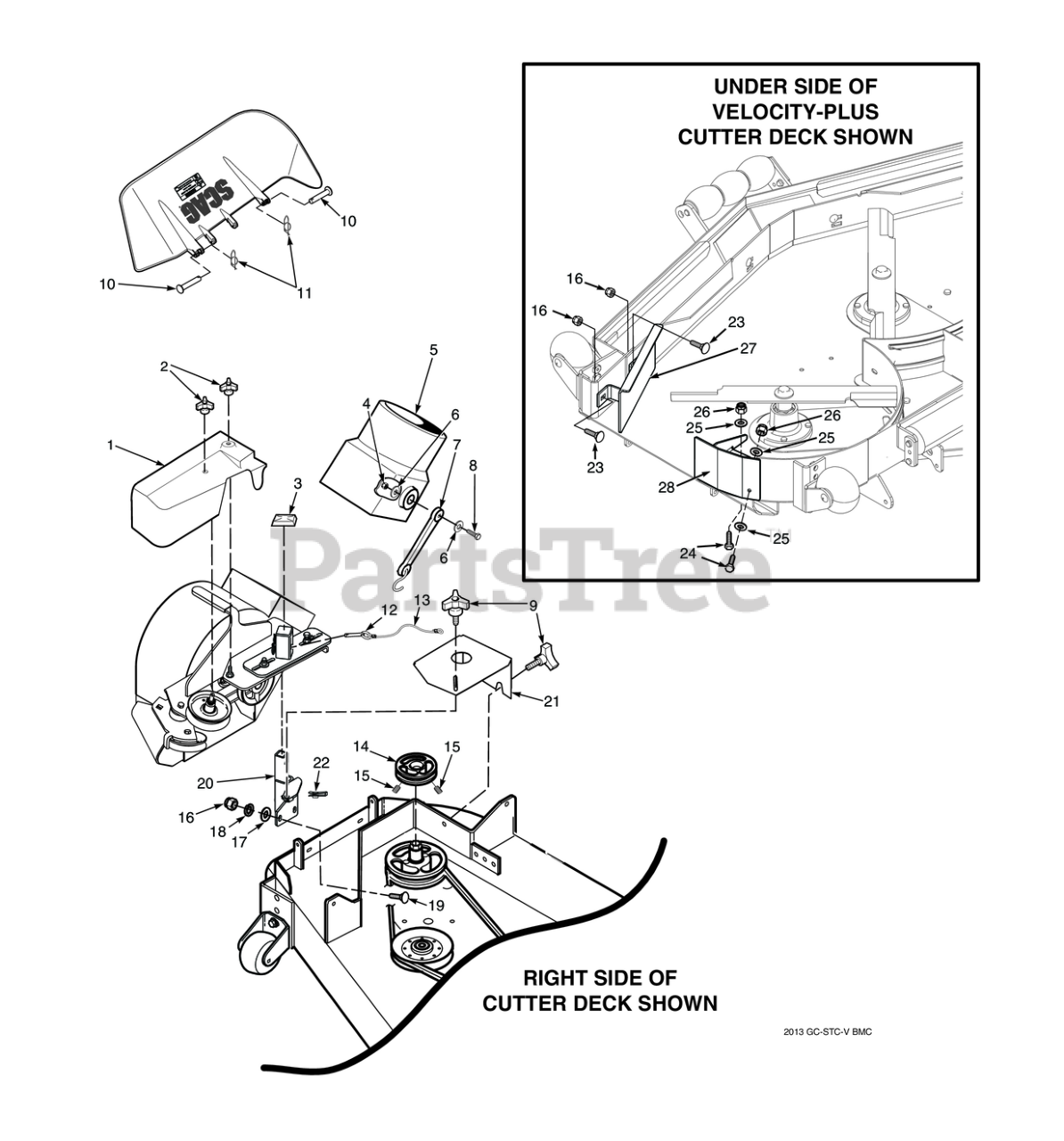

SCZ-61" / SCZII-61" STT 52"/61" & STTII 52"/61" BLOWER MOUNTING COMPONENTS Parts Diagram

  • Title

1

Scag 483227

Belt Cover, GC-STT - 61"

$

$

Not available

1

Scag 485715

Belt Cover, (STT-52 & STTII-52)

Note: (STT-52 & STTII-52)

$245.99

$

Usually ships in 2-12 days

0

2

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 20+

0

3

Scag 483223

Cap, Square Vinyl

$1.99

$

Usually ships in 2-12 days

0

4

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

5

Scag 461723

Adapter, Blower GC-STC,

$165.99

$

Usually ships in 2-12 days

0

6

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

7

Scag 48137-04

Rubber Strap 7-3/4"

$9.99

$

In Stock, only 3 left!

0

8

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

9

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

10

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 11

0

11

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 3 left!

0

12

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"

$8.49

$

Usually ships in 2-12 days

0

13

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

0

14

Scag 482377

Pulley, 5-1/2" Dia. - 1.125" Bore, (61")

$81.99

$

Usually ships in 2-12 days

0

Scag 482587

Pulley, 4.0" Dia. - 1.125" Bore, (STT-52 & STTII-52)

Note: (STT-52 & STTII-52)

$66.99

$

In Stock, only 1 left!

0

15

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16 - 18 (nylock)

$0.99

$

In Stock, Qty 20+

0

16

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

Note: (STT-52 & STTII-52)

$1.49

$

In Stock, only 2 left!

0

17

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

18

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

19

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

19

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2", (STT-52 & STTII-52)

Note: (STT-52 & STTII-52)

$1.49

$

In Stock, only 4 left!

0

20

Scag 461894

Mounting Post Weldment, Blower, (61")

$125.99

$

Usually ships in 2-12 days

0

Scag 463219

Mounting Post Weldment, Blower, (STT-52 & STTII-52)

Note: (STT-52 & STTII-52)

$167.99

$

Usually ships in 2-12 days

0

21

Scag 462418

Belt Cover Assembly, GC-STT-61V w/Cap

$65.99

$

In Stock, only 1 left!

0

Scag 484368

Cap, Spindle (not shown) 61" Only

Note: (not shown)

$4.99

$

In Stock, Qty 20+

0

Scag 428278

Belt Cover, (STT-52 & STTII-52)

$60.99

$

Usually ships in 2-12 days

0

22

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

23

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

24

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

25

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

26

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 452384

Baffle Weldment - 61" Deck

$75.99

$

In Stock, only 1 left!

0

Scag 452383

Baffle Weldment, 52V Deck
(Superseded to 453056)

$57.99

$

Usually ships in 2-12 days

0

28

Scag 424212

Baffle, Turbo - 61" Deck

$70.99

$

In Stock, only 2 left!

0

Scag 424211

Baffle, Turbo 52" Deck

$70.99

$

Usually ships in 2-12 days

0

Scag 428249

Mounting Post Drill Template (STT & STTII-52V)

Note: Not shown

$

$

Currently unavailable
