GC-3B (06349) - Scag Fabric 3-Bag Grass Catcher (SN: R3900001 - R3999999) SCZ 48"/52" STCII 48"/52"/61" BAG SUPPORT COMPONENTS (LOWER) Parts Diagram

Fabric 3-Bag Grass Catcher

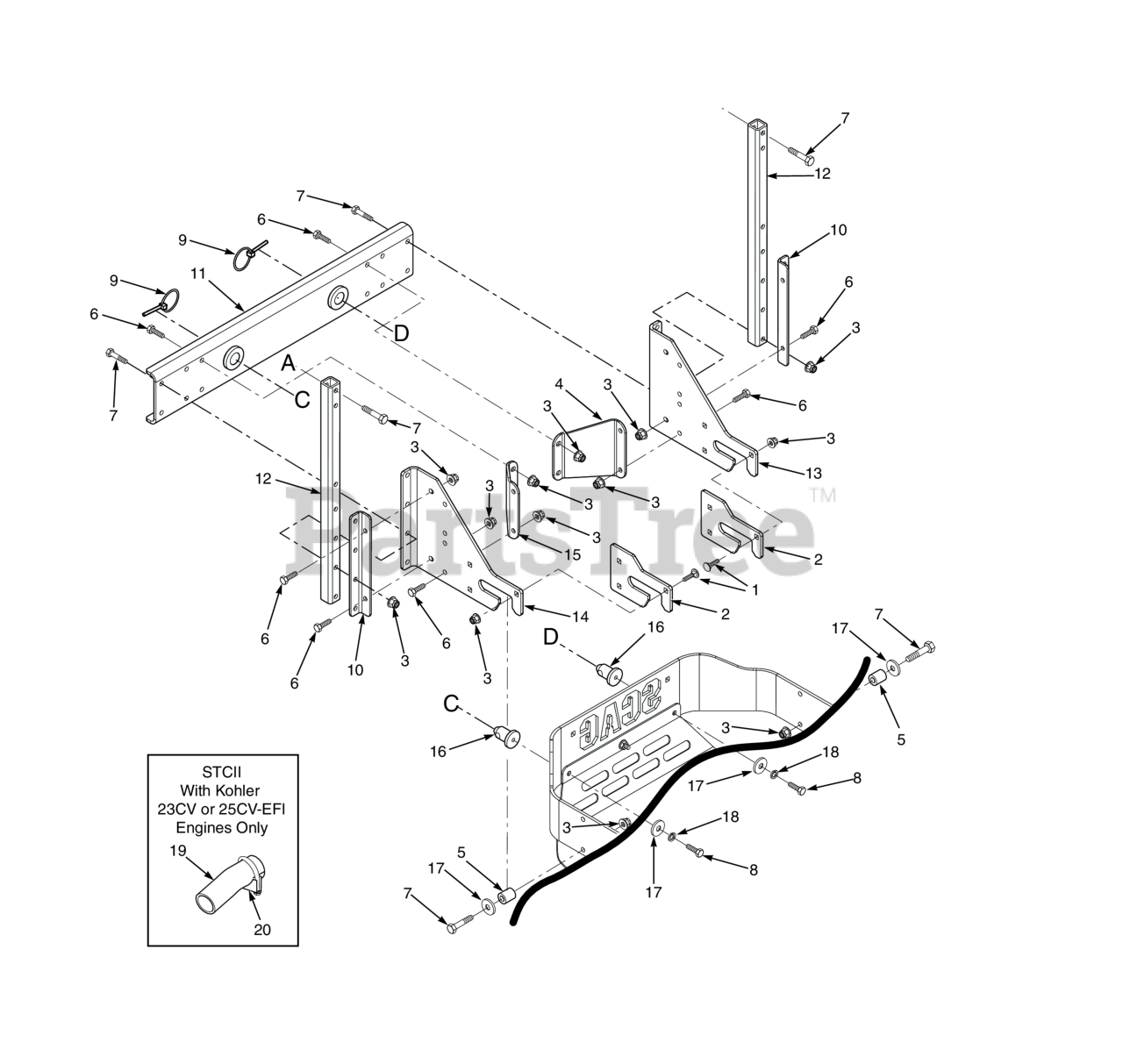

SCZ 48"/52" STCII 48"/52"/61" BAG SUPPORT COMPONENTS (LOWER) Parts Diagram

  • Title

1

Scag 04003-22

Carriage Bolt, 3/8-16 x 1-1/4"

$1.99

$

In Stock, Qty 7

0

2

Scag 426024

Wear Plate, GC

$22.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 426016

Angle Bracket, GC

$78.99

$

Usually ships in 2-12 days

0

5

Scag 43886

Spacer

$7.99

$

In Stock, only 4 left!

0

6

Scag 04001-16

Bolt, Hex Head 3/8-16 x 1"

$

$

Currently unavailable

7

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8

$0.99

$

In Stock, Qty 9

0

9

Scag 04066-04

Quick Pin, 5/16" Dia.

$7.49

$

In Stock, Qty 8

0

10

Scag 426012

Mounting Bracket, Tube

$20.99

$

Usually ships in 2-12 days

0

11

Scag 452382

Mounting Bracket Weldment

$

$

Not available

12

Scag 426015

Tube, Upright

$60.99

$

Usually ships in 2-12 days

0

13

Scag 426011

Mounting Bracket, GC R.H.

$89.99

$

Usually ships in 2-12 days

0

14

Scag 426010

Mounting Bracket, GC L.H.

$57.99

$

Usually ships in 2-12 days

0

15

Scag 426017

Angle Bracket, GC

$78.99

$

Usually ships in 2-12 days

0

16

Scag 43884

Pin, GC Locator

$30.99

$

Usually ships in 2-12 days

0

17

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 5

0

18

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

19

Scag 485784

TUBE, EXHAUST

$16.99

$

Usually ships in 2-12 days

0

20

Scag 48633

Clamp, Muffler (Clamp Only)

$6.49

$

In Stock, only 1 left!

0
