GC-3B (06349) - Scag Fabric 3-Bag Grass Catcher (SN: R3900001 - R3999999) GC-3B HOOD COMPONENTS Parts Diagram

Fabric 3-Bag Grass Catcher

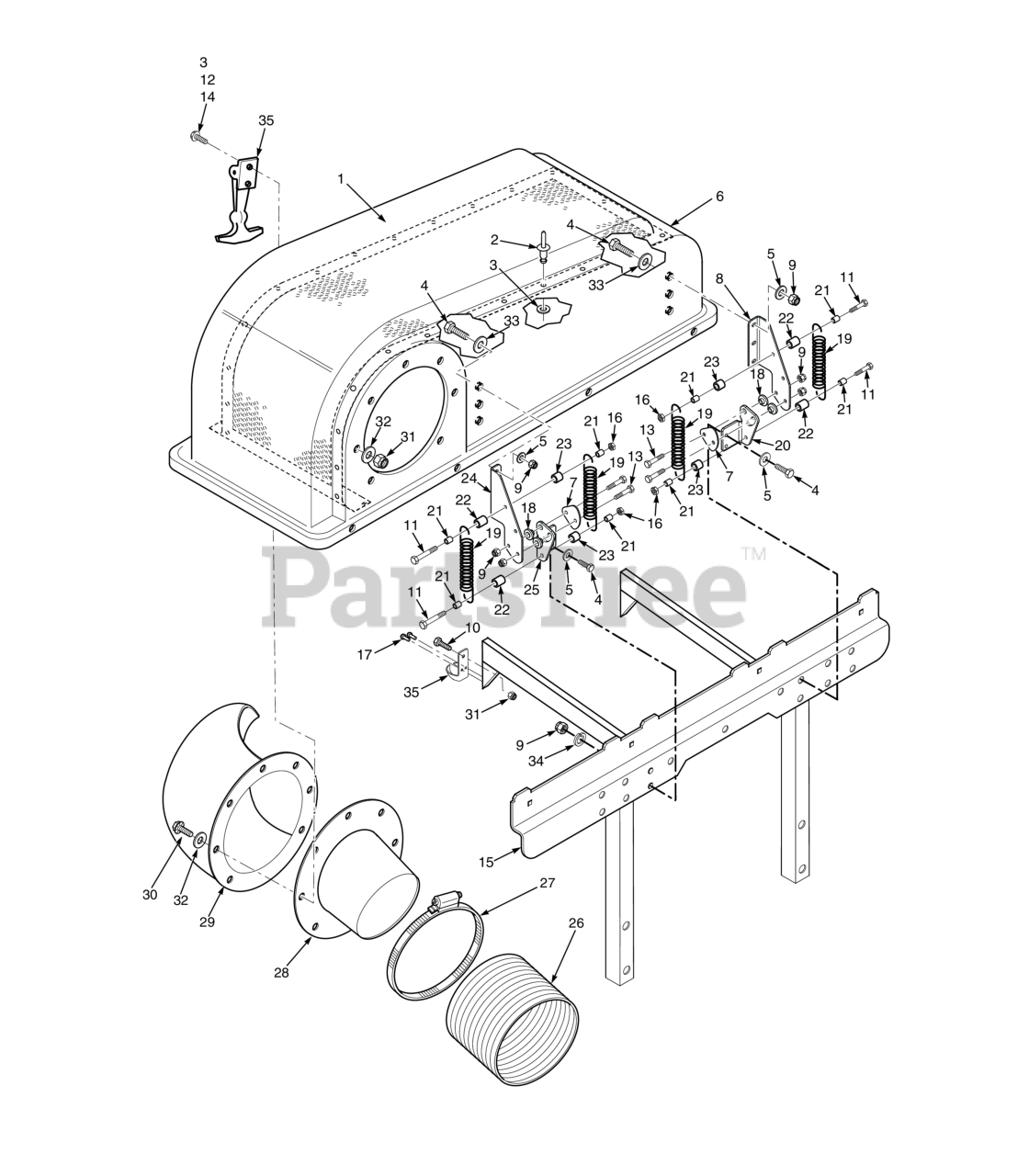

GC-3B HOOD COMPONENTS Parts Diagram

  • Title

1

Scag 423302

Screen, Catcher Hood

$200.99

$

Usually ships in 2-12 days

0

2

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

3

Scag 04041-19

Flatwasher, 3/16 (.196 x .469 x .048)

$0.99

$

In Stock, Qty 5

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 12

0

5

Scag 04041-01

Flatwasher, 3/8-.391 x .938 x .105

$

$

Currently unavailable

6

Scag 461408

Hood Assembly, GC-STT

Note: (includes items 1, 2 & 3 and items 2 & 4 on page 34)

$680.99

$

Usually ships in 2-12 days

0

7

Scag 425832

Guard, GC Hinge

$6.49

$

Usually ships in 2-12 days

0

8

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

9

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

12

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

13

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

14

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

15

Scag 453120

Support Weldment, Bag Frame

$267.99

$

Usually ships in 2-12 days

0

16

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

17

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

18

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

19

Scag 482304

Spring, Hood Hinge

$52.99

$

In Stock, only 2 left!

0

20

Scag 426041

HINGE, LOWER LH

$22.99

$

Usually ships in 2-12 days

0

21

Scag 43212

Spacer, Deck Assist

$4.49

$

In Stock, Qty 5

0

22

Scag 43886

Spacer

$7.49

$

In Stock, only 3 left!

0

23

Scag 43277

SPACER, J-PULL ROD

$6.49

$

In Stock, only 1 left!

0

24

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

25

Scag 426042

HINGE, LOWER RH

$22.99

$

Usually ships in 2-12 days

0

26

Scag 462536

Hose, 8.00" Dia. x 53" Long

$207.99

$

Usually ships in 2-12 days

0

27

Scag 48136-02

Clamp, 8-5/8" Max Dia. (61")

$9.99

$

In Stock, only 2 left!

0

28

Scag 482422

Tube, Filler (8" Hose)

$106.99

$

Usually ships in 2-12 days

0

29

Scag 482421

Elbow (8" Hose)

$124.99

$

Usually ships in 2-12 days

0

30

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

31

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

33

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 4 left!

0

34

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

35

Scag 482409

Latch, Hopper

$74.99

$

In Stock, only 2 left!

0
