GC-3B (06334) - Scag Fabric 3-Bag Grass Catcher (SN: P3500001 - P3599999) STT-52" / STTII-52" BLOWER HOUSING ASSEMBLY Parts Diagram

Fabric 3-Bag Grass Catcher

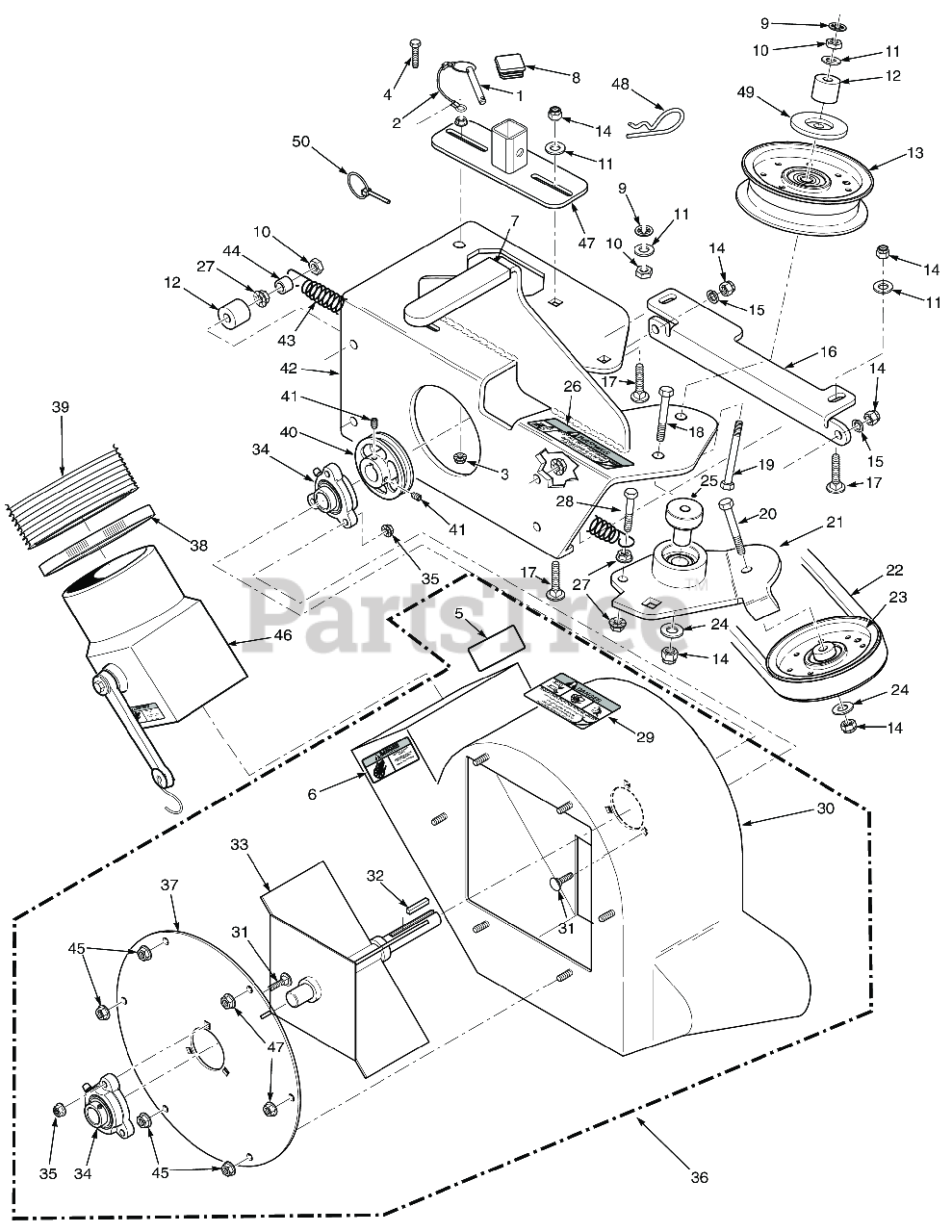

STT-52" / STTII-52" BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"

$8.49

$

Usually ships in 2-12 days

0

2

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

0

3

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

5

Scag 483392

Decal, Blower

$

$

Not available

6

Scag 483393

Decal, Rotating Blower

$

$

Not available

7

Scag 481428

Grip, Deck Latch Lever

$4.49

$

Usually ships in 2-12 days

0

8

Scag 483223

Cap, Square Vinyl

$1.99

$

Usually ships in 2-12 days

0

9

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

10

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

11

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

12

Scag 43277

SPACER, J-PULL ROD

$6.49

$

In Stock, Qty 11

0

13

Scag 483173

Pulley, Idler 3-1/2" Dia. - 52"

$56.99

$

In Stock, only 1 left!

0

14

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

16

Scag 424361

Plate, Catcher Mounting

$44.99

$

Usually ships in 2-12 days

0

17

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

18

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2" Full Thread

$2.49

$

In Stock, only 1 left!

0

20

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

21

Scag 461939

Idler Arm Assembly - 52"

$74.99

$

Usually ships in 2-12 days

0

22

Scag 483327

Belt, GC-SCZ-48V / STCII-48V

$39.99

$

In Stock, only 3 left!

0

23

Scag 483189

Pulley, 3-1/2" O.D., GC-STT 52"

$46.99

$

In Stock, only 4 left!

0

24

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

25

Scag 43504

Pivot, Idler Long - 52"

$28.99

$

In Stock, only 1 left!

0

26

Scag 483402

Decal, Warning - Belt Cover

$3.99

$

In Stock, Qty 5

0

27

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

29

Scag 483391

Decal, Danger

$

$

Not available

30

Scag 461931

Blower Housing Weldment w/Decals

$306.99

$

Usually ships in 2-12 days

0

31

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

32

Scag 04063-06

KEY 1/4 X 1/4 X 1 1/2"(FOR 1" CRANKSHAFT

$1.49

$

In Stock, Qty 12

0

33

Scag 461796

Fan Weldment

$174.99

$

Usually ships in 2-12 days

0

34

Scag 483034

Bearing Assembly

$38.99

$

In Stock, Qty 9

0

35

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

36

Scag 461930

Blower Housing Assembly, GC-STT

$542.99

$

Usually ships in 2-12 days

0

37

Scag 421319

COVER, BLOWER HOUSING

$50.99

$

In Stock, only 1 left!

0

38

Scag 48136-02

Clamp, 8-5/8" Max Dia. (61")

$9.99

$

Usually ships in 2-12 days

0

39

Scag 462538

Hose, 8.00" Dia. x 68" Long

$243.99

$

In Stock, only 1 left!

0

40

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

$62.99

$

In Stock, Qty 5

0

41

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16 - 18 (nylock)

$0.99

$

In Stock, Qty 20+

0

42

Scag 461932

Frame, Blower Mount

$173.99

$

Usually ships in 2-12 days

0

43

Scag 481522

Spring, Helper (61" Cutter Deck Only)

$32.99

$

In Stock, Qty 6

0

44

Scag 43212

Spacer, Deck Assist

$4.49

$

In Stock, Qty 5

0

45

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

46

Scag 461723

Adapter, Blower GC-STC,

$165.99

$

Usually ships in 2-12 days

0

47

Scag 451822

Receiver Weldment, Mount Post - 52"

$44.99

$

Usually ships in 2-12 days

0

48

Scag 04062-04

Hair Pin Cotter, .177" x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

49

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 20+

0

50

Scag 04066-04

Quick Pin, 5/16" Dia.

$6.99

$

In Stock, Qty 8

0
