GC-3B (06279) - Scag Fabric 3-Bag Grass Catcher (SN: K3300001 - K3399999) (Rev 03) FRONT WEIGHT COMPONENTS Parts Diagram

Fabric 3-Bag Grass Catcher

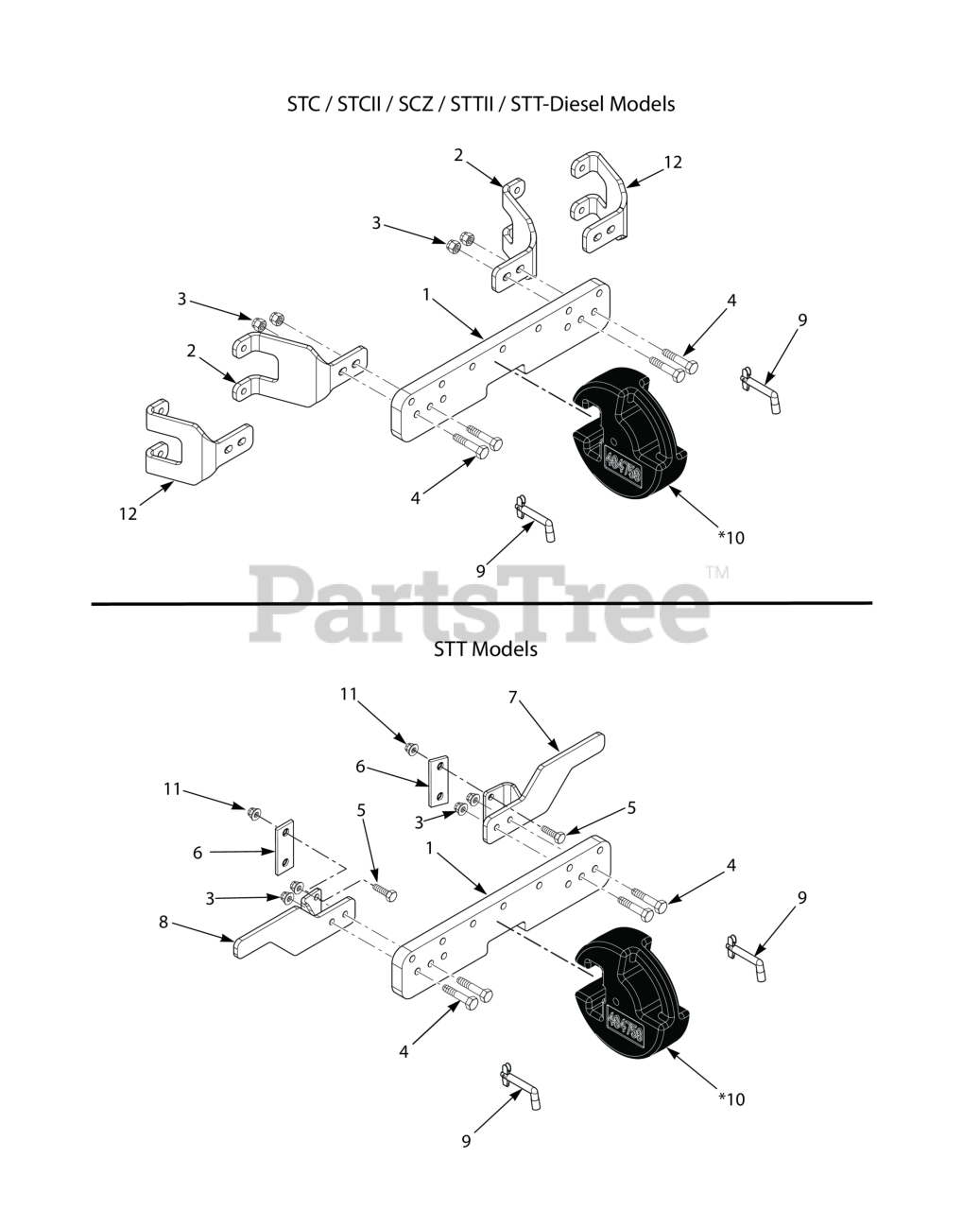

FRONT WEIGHT COMPONENTS Parts Diagram

  • Title

1

Scag 426093

Weight Bar

$201.99

$

Usually ships in 2-12 days

0

2

Scag 426091

Bracket, LH Weight Bar (STC / STCII & SCZ48/52)

$41.99

$

Usually ships in 2-12 days

0

Scag 426092

Bracket, RH Weight Bar (STC / STCII & SCZ48/52)

$39.99

$

Usually ships in 2-12 days

0

3

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, only 2 left!

0

4

Scag 04001-34

HEX HD. BOLT 1/2-20 X 2 SPECIAL

$

$

Currently unavailable

5

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

6

Scag 422586

Clamp, Bar

$14.99

$

In Stock, only 2 left!

0

7

Scag 452417

Mounting Bracket Weldment, LH Weight Bar

$60.99

$

In Stock, only 1 left!

0

8

Scag 452418

Mounting Bracket Weldment, RH Weight Bar

$60.99

$

In Stock, only 1 left!

0

9

Scag 485172

Pin, Weight Retention

$16.99

$

Usually ships in 2-12 days

0

10

Scag 484758

Weight

Note: Weights Required: Model STC 48/52 Qty. 5 |Model STC 61 Qty. 5 |Model STCII 48/52 Qty. 6 |Model STCII 61 Qty. 5 |Model SCZ 48/52 Qty. 6 |Model SCZ 61 Qty. 5 |Model STT 52 Qty. 4 |Model STT 61 Qty. 5 |Model STTII 52 Qty. 4 |Model STTII 61 Qty. 5

$189.99

$

Usually ships in 2-12 days

0

11

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 427351

BRKT, WEIGHT BAR

Note: (LH & RH for STT-Diesel, STTII52/61 & SCZ61)

$90.99

$

In Stock, only 2 left!

0
