GC 300 (5708-1703) - Husqvarna Grass Catcher (1993-01) Rear Mounted, Side Discharge Grass Catcher Parts Diagram

Grass Catcher

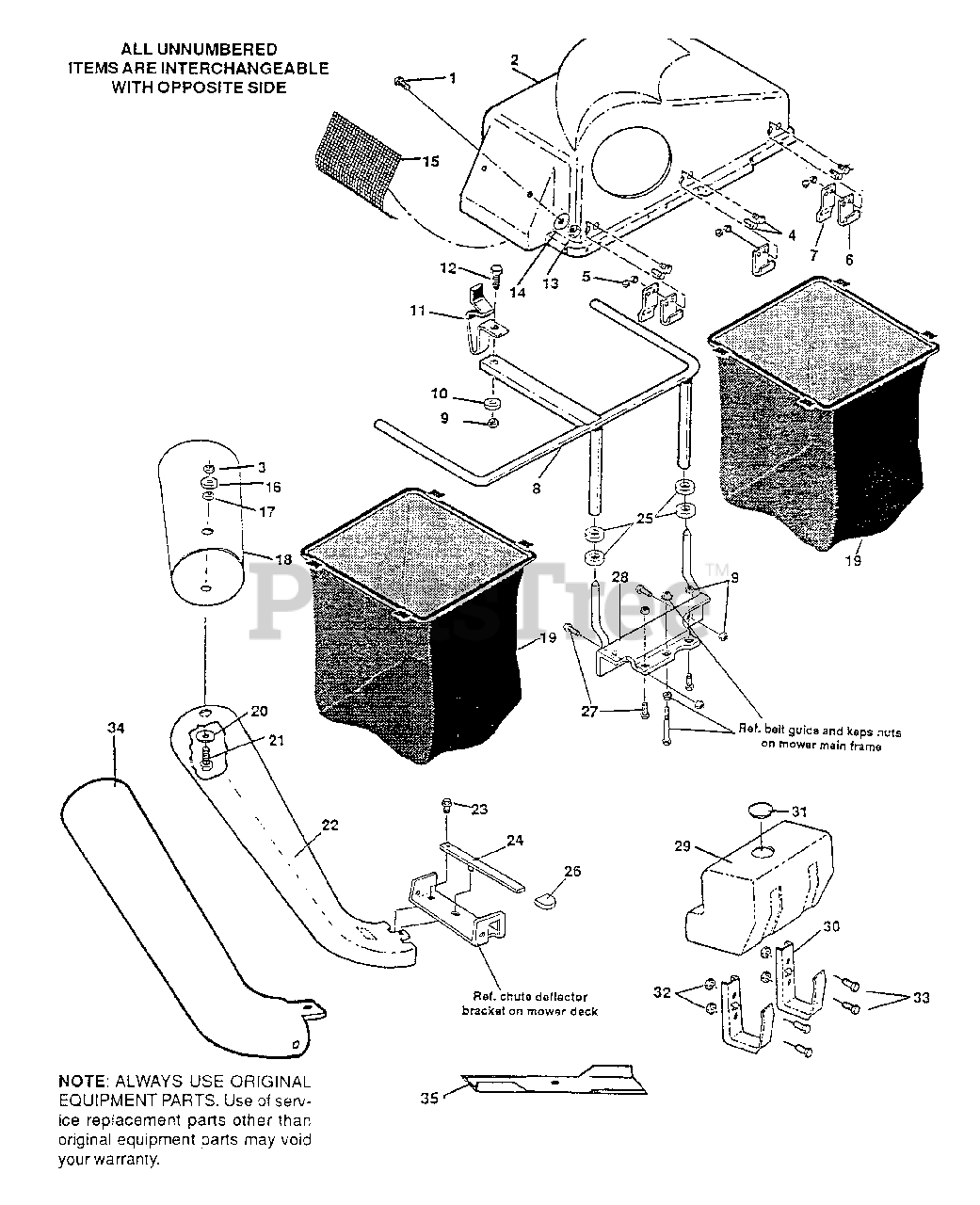

Rear Mounted, Side Discharge Grass Catcher Parts Diagram

  • Title

1

Husqvarna 57034

Screw, Sl Fl Hd, No. 10-24 x 5/8 In.

$

$

Currently unavailable

2

Husqvarna 306943

Cover

$

$

Currently unavailable

3

Husqvarna 1502

Locknut, 1/4-20 Thd.

$

$

Currently unavailable

4

Husqvarna 55686

Screw, Sl Rd Hd, 1/4-20 x 5/8 In.

$

$

Currently unavailable

5

Husqvarna 271172

Nut, Keps, 1/4-20 Thd.

Note: Standard Hardware Item - May be Purchased Locally.

$

$

Currently unavailable

6

Husqvarna 315449

Hinge, Cover

$

$

Currently unavailable

7

Husqvarna 300624

Strap, Retainer

$

$

Currently unavailable

8

Husqvarna 304976

Support Assembly

$

$

Currently unavailable

9

Husqvarna 1498

Locknut, 5/16-18 Thd.

$

$

Currently unavailable

10

Husqvarna 120393

Flatwasher, 11/32 In.

$

$

Currently unavailable

11

Husqvarna 12346

Latch, Bagger

$

$

Currently unavailable

12

Husqvarna 120834

Screw, Hex Hd, 5/16-18 x 1 /2 In.

$

$

Currently unavailable

13

Husqvarna 271166

Nut, Keps, No. 10-24 Thd.

$

$

Currently unavailable

14

Husqvarna 1501

Flatwasher, 13/64 In.

$

$

Currently unavailable

15

Husqvarna 300115

Screen

$

$

Currently unavailable

16

Husqvarna 57626

Flatwasher, 9/32 In.

$

$

Currently unavailable

17

Husqvarna 57506

Rubber Grommet

$

$

Currently unavailable

18

Husqvarna 306783

Upper Tube Assembly

$

$

Currently unavailable

19

Husqvarna 58283

Bag

$

$

Currently unavailable

20

Husqvarna 120386

Flatwasher, 5/16 In.

Note: Standard Hardware Item - May be Purchased Locally.

$

$

Currently unavailable

21

Husqvarna 180020

Screw, Hex Hd, 1/4-20 x 3/4 In.
(Superseded to 583098101)

Note: Standard Hardware Item - May be Purchased Locally.

$141.99

$

Usually ships in 3-10 days

0

22

Husqvarna 57786

Chute, Transition

Note: (For 36" deck models)

$

$

Currently unavailable

23

Husqvarna 35497

Screw, Taptite, 5/16-18 x 1/2 In.

Note: (For 36" deck models)

$

$

Currently unavailable

24

Husqvarna 9137

Lever, Latch

$

$

Currently unavailable

25

Husqvarna 302131

Spacer

Note: (For 30" deck models)

$

$

Currently unavailable

26

Husqvarna 42348

Grip

$

$

Currently unavailable

27

Husqvarna 122028

Screw, Hex Hd, 5/16-18 x 5/8 In.

Note: Standard Hardware Item - May be Purchased Locally.

$

$

Currently unavailable

28

Husqvarna 304949

Lower Support

$

$

Currently unavailable

29

Husqvarna 304263

Tank, Weight

$

$

Currently unavailable

30

Husqvarna 304952

Bracket, Weight

$

$

Currently unavailable

31

Husqvarna 53383

Plug, Weight Tank

$

$

Currently unavailable

32

Husqvarna 45174

Nut, Hex Hd Wide Flange, 5/16-18 Thd.

$

$

Currently unavailable

33

Husqvarna 122017

Screw, Hex Hd, 5/16-18 x 1 In.

$

$

Currently unavailable

34

Husqvarna 314524

Chute, Transition

Note: (For 30" deck models)

$

$

Currently unavailable

35

Husqvarna 323469

Blade, Hi-Lift

Note: (For 30" deck models)

$

$

Currently unavailable

35

Husqvarna 323113

Owner's Manual

Note: (Not Illustrated)

$

$

Currently unavailable
