GC-2B (06376) - Scag Fabric 2-Bag Grass Catcher (SN: T0300001 - T0399999) GC-2B BAG SUPPORT COMPONENTS Parts Diagram

Fabric 2-Bag Grass Catcher

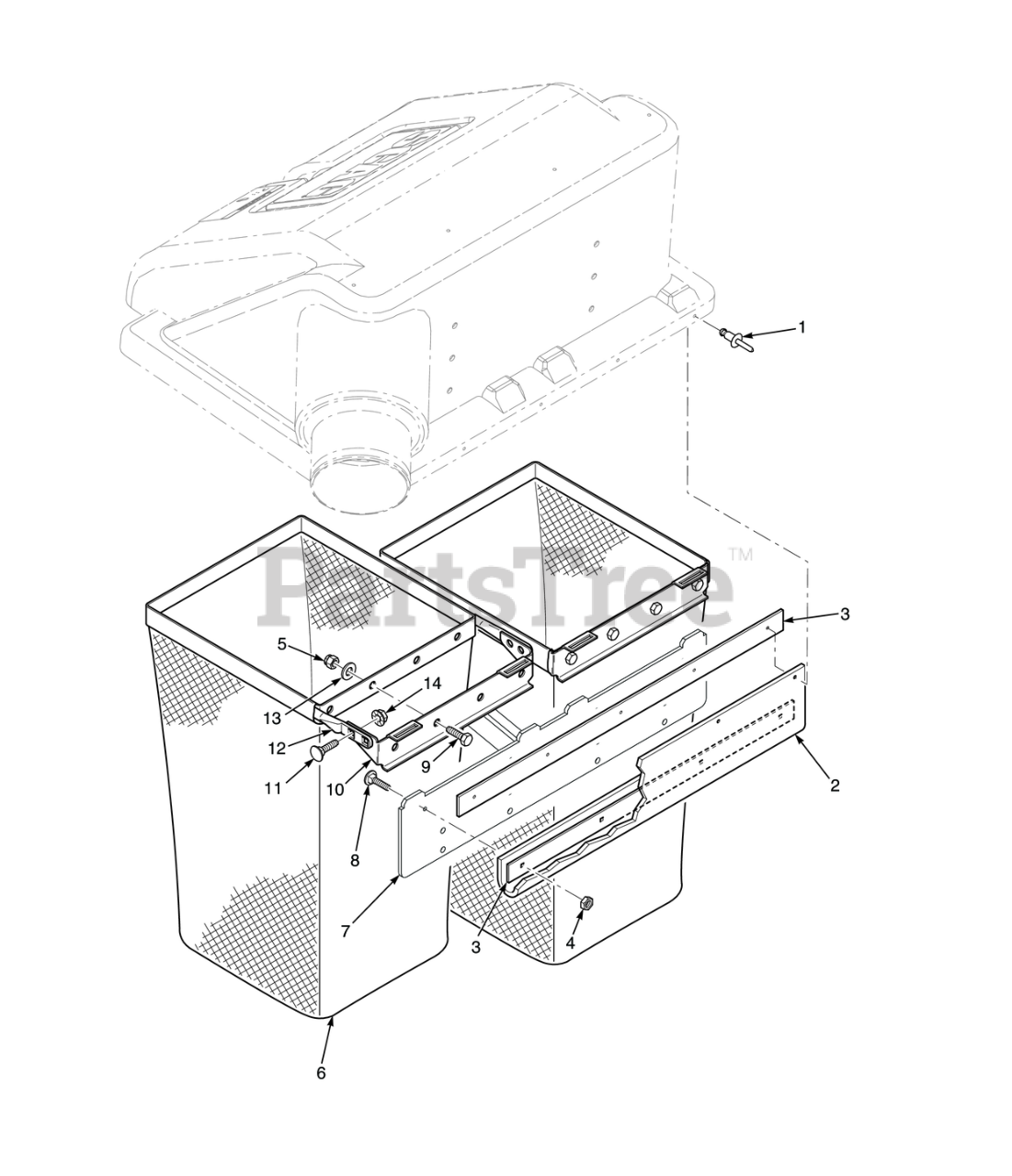

GC-2B BAG SUPPORT COMPONENTS Parts Diagram

  • Title

1

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

2

Scag 483589

Diode (part of wire harness)

$40.99

$

Usually ships in 2-12 days

0

3

Scag 424753

Retainer, Seal

$16.99

$

Usually ships in 2-12 days

0

4

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 5

0

5

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 462966

Bag Assembly

$180.99

$

Usually ships in 2-12 days

0

7

Scag 451959

Frame Weldment, Bag Support
(Superseded to 452675)

$156.99

$

Usually ships in 2-12 days

0

8

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 423198

Mount, Bag Frame Tube

$46.99

$

Usually ships in 2-12 days

0

11

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

12

Scag 423197

Tube, Bag Support

$88.99

$

Usually ships in 2-12 days

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0
