GC-2B (06309) - Scag Fabric 2-Bag Grass Catcher (SN: M6300001 - M6399999) GC-2B Hood And Discharge Assembly Parts Diagram

Fabric 2-Bag Grass Catcher

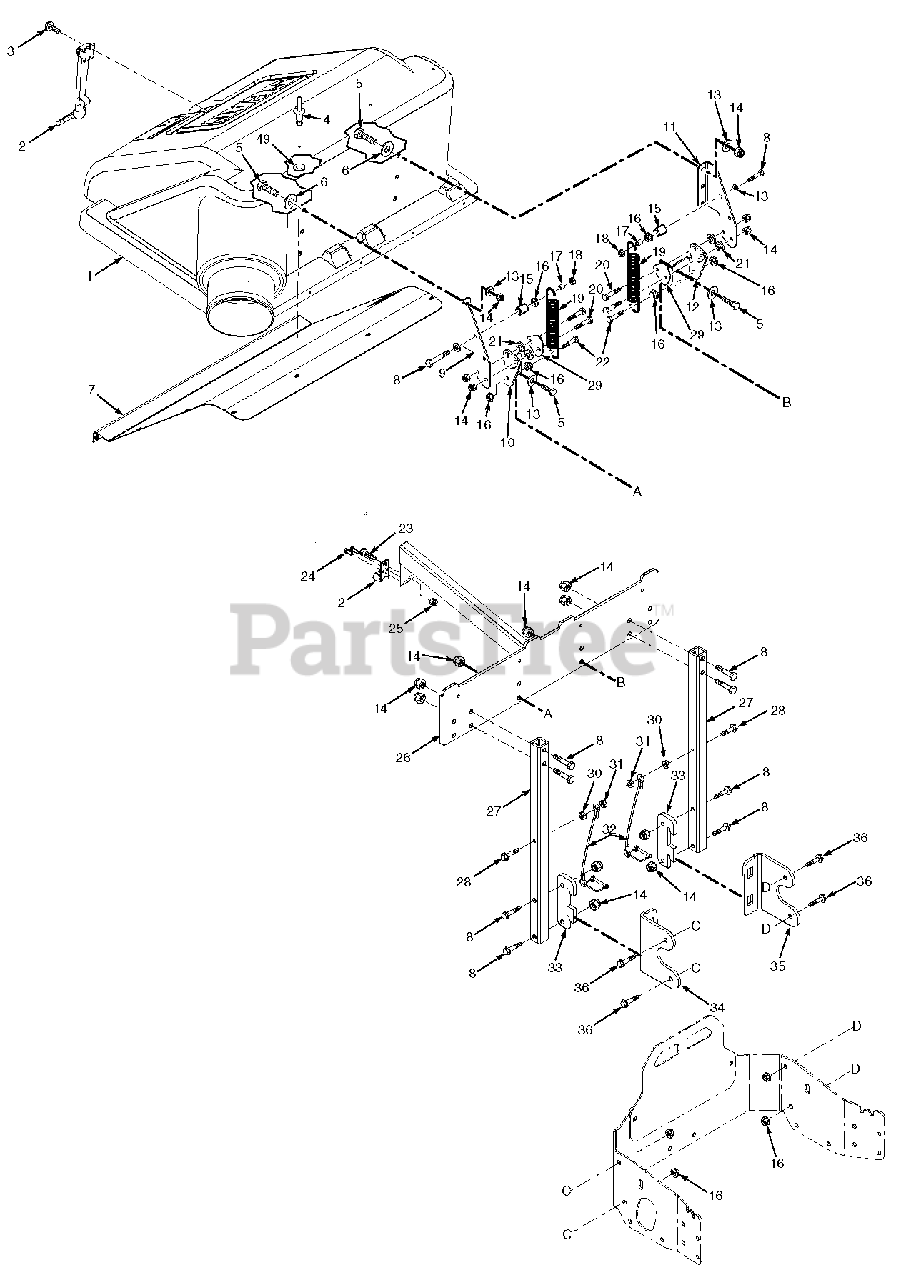

GC-2B Hood And Discharge Assembly Parts Diagram

  • Title

1

Scag 462932

Hood Assembly

Note: (incl. screen & seal)

$724.99

$

Usually ships in 2-12 days

0

2

Scag 482409

Latch

$74.99

$

In Stock, Qty 7

0

3

Scag 04010-25

Screw, #10-32 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 04041-09

Flatwasher, 3/8-.193 x .496 x .048

$2.99

$

Usually ships in 2-12 days

0

3

Scag 04021-01

Nut, Elastic Stop #10-32

$0.99

$

In Stock, Qty 10

0

4

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

6

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x 7 Ga.

$1.99

$

In Stock, Qty 20+

0

7

Scag 424731

Screen, GC Hood

$192.99

$

Usually ships in 2-12 days

0

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

10

Scag 425829

Hinge, Lower RH

$

$

Currently unavailable

11

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

12

Scag 425828

Hinge, Lower LH

$

$

Currently unavailable

13

Scag 04041-01

Flatwasher, 3/8-391 x .938 x .105

$

$

Currently unavailable

14

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 43277

Spacer

$6.49

$

In Stock, Qty 11

0

16

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

18

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 482304

Spring

$52.99

$

In Stock, only 2 left!

0

20

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

21

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

22

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, only 4 left!

0

23

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04090-03

Pop Rivet, 3/16 x .402

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 451959

Frame Weldment, Bag Support
(Superseded to 452675)

$156.99

$

Usually ships in 2-12 days

0

27

Scag 424750

Tube, Grass Catcher Mount

$83.99

$

Usually ships in 2-12 days

0

28

Scag 04001-03

Bolt, Hex Head 1/4-20 x 2"

$0.99

$

In Stock, Qty 8

0

29

Scag 425832

Guard, Hinge

$6.49

$

Usually ships in 2-12 days

0

30

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

31

Scag 04021-02

Nut, Center Lock 1/4-20

$0.99

$

In Stock, Qty 5

0

32

Scag 485859

Snap Pin Assembly

$24.99

$

Usually ships in 2-12 days

0

33

Scag 424752

Latch, GC

$12.99

$

In Stock, Qty 6

0

34

Scag 424751

Bracket, GC Mount RH

$22.99

$

Usually ships in 2-12 days

0

35

Scag 424749

Bracket, GC Mount LH

$27.99

$

Usually ships in 2-12 days

0

36

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

37

Scag 04041-19

Flatwasher, 3/16-.196 x .469 x .048

$0.99

$

In Stock, Qty 5

0
