GC-2B (06309) - Scag Fabric 2-Bag Grass Catcher (SN: M6300001 - M6399999) GC-2B Bag Support Components Parts Diagram

Fabric 2-Bag Grass Catcher

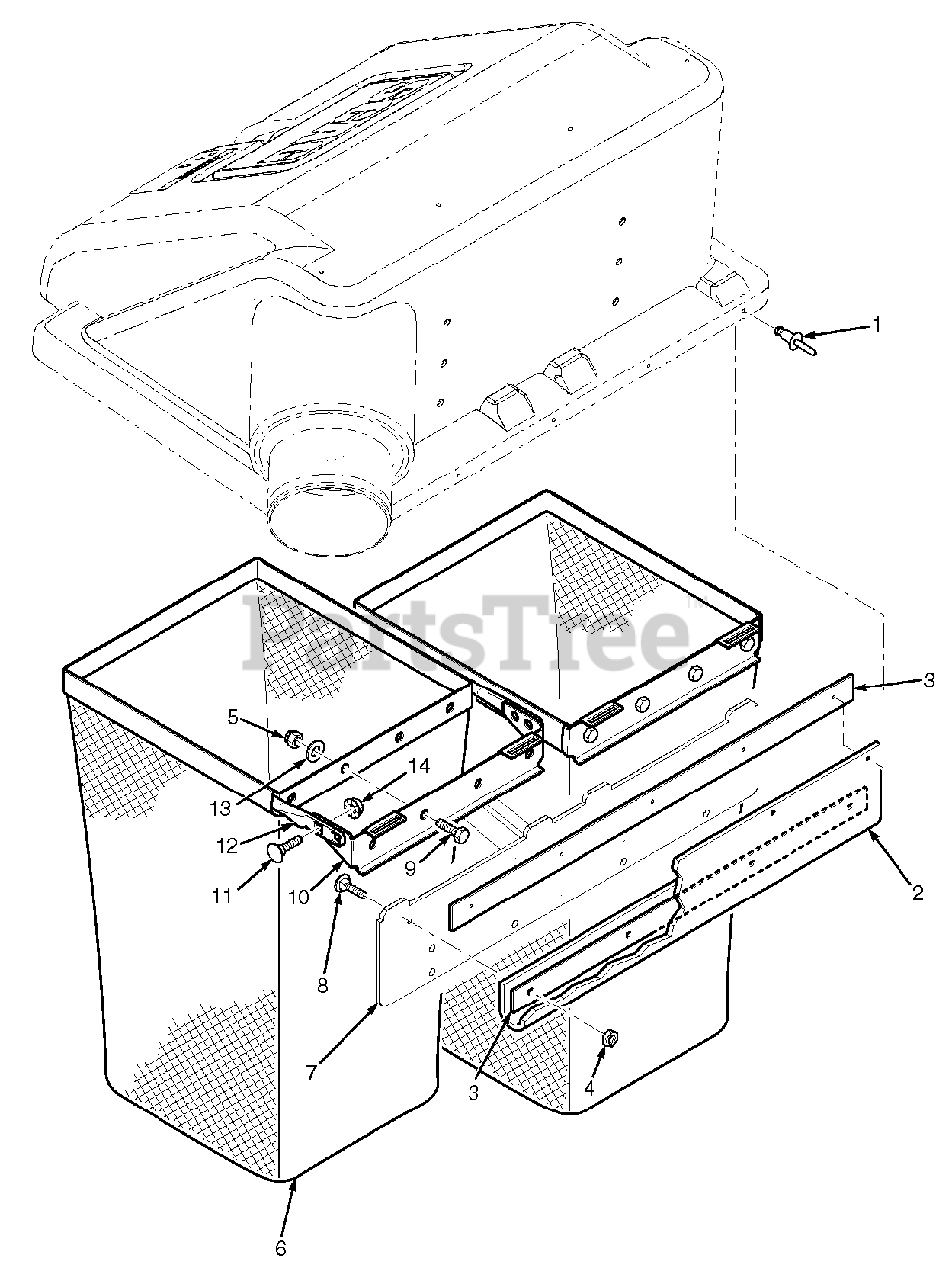

GC-2B Bag Support Components Parts Diagram

  • Title

1

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

2

Scag 483589

Seal, GC Hood

$40.99

$

Usually ships in 2-12 days

0

3

Scag 424753

Retainer, Seal

$16.99

$

Usually ships in 2-12 days

0

4

Scag 04021-02

Nut, Center Lock 1/4-20

$0.99

$

In Stock, Qty 5

0

5

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 482567

Bag Assembly
(Superseded to 462966)

$180.99

$

Usually ships in 2-12 days

0

7

Scag 451959

Frame Weldment, Bag Support
(Superseded to 452675)

$156.99

$

Usually ships in 2-12 days

0

8

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 423198

Mount, Bag Frame Tube

$46.99

$

Usually ships in 2-12 days

0

11

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 423197

Tube, Bag Support

$88.99

$

Usually ships in 2-12 days

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
