GC-2B (06309) - Scag Fabric 2-Bag Grass Catcher (SN: M6300001 - M6399999) (Rev 01) SPZ 52"/61" Blower Housing Assembly Parts Diagram

Fabric 2-Bag Grass Catcher

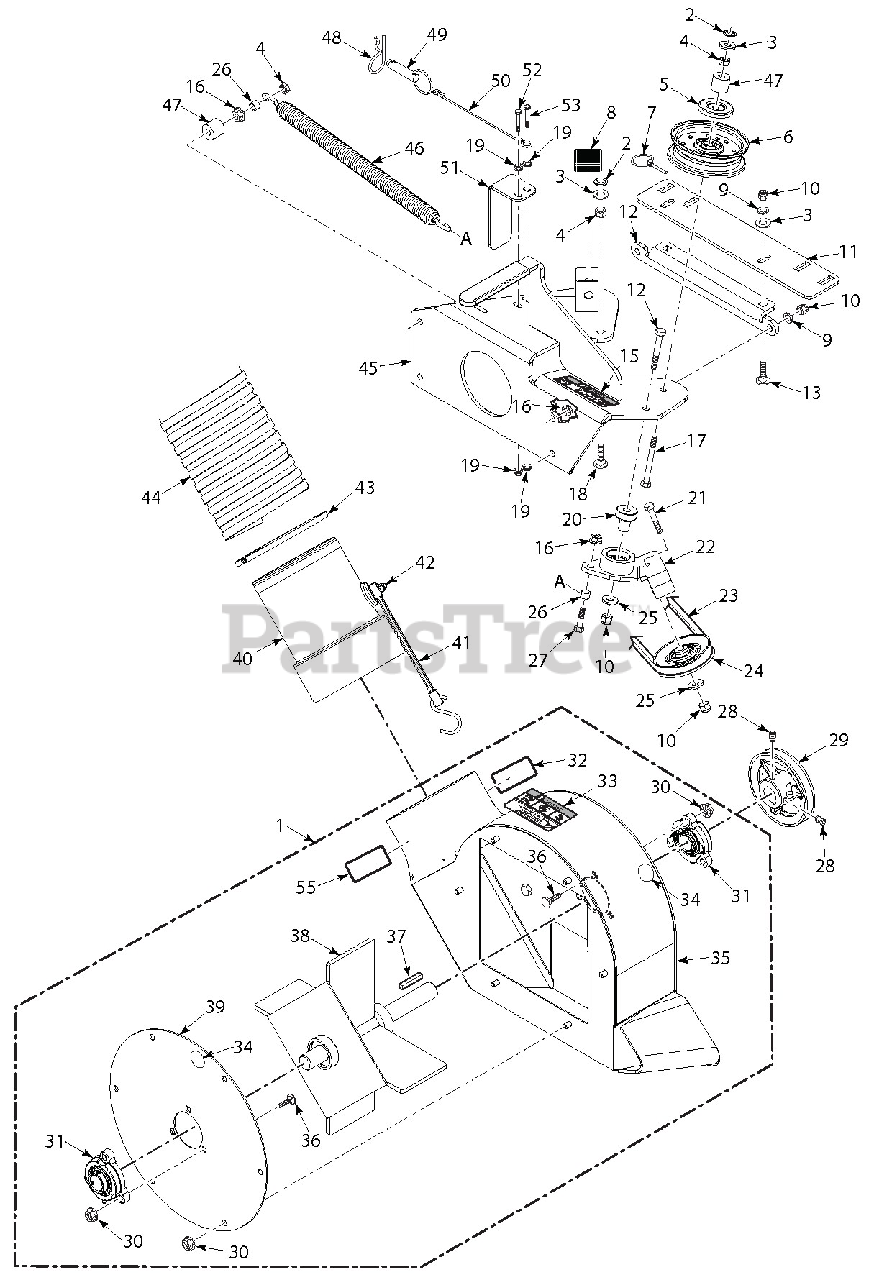

SPZ 52"/61" Blower Housing Assembly Parts Diagram

  • Title

1

Scag 461778

Blowing Housing Assembly w/Fan

$490.99

$

Usually ships in 2-12 days

0

2

Scag 04024-02

Nut, Push-On

$1.49

$

In Stock, Qty 5

0

3

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

4

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

6

Scag 483209

Pulley, 4" Idler

$52.99

$

In Stock, only 1 left!

0

7

Scag 04066-04

Quick Pin

$6.99

$

In Stock, Qty 8

0

8

Scag 482300

Cap

$3.49

$

In Stock, only 1 left!

0

9

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

10

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 427387

Plate, Blower Catch

$4.99

$

Usually ships in 2-12 days

0

12

Scag 423296

Plate, Catch Mounting

$25.99

$

Usually ships in 2-12 days

0

13

Scag 04003-11

Bolt, Carriage 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

14

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 483402

Decal, Belt Cover

$3.99

$

In Stock, Qty 5

0

16

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2" Full Thread

$2.49

$

In Stock, only 1 left!

0

18

Scag 04003-05

Bolt, Carriage 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 18

0

19

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

20

Scag 43575

Pivot, Idler

$26.99

$

In Stock, only 2 left!

0

21

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

22

Scag 462931

Idler Arm Assembly

Note: (incl. bearings)

$53.99

$

Usually ships in 2-12 days

0

22

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

23

Scag 485829

Belt (52)

$42.99

$

Usually ships in 2-12 days

0

23

Scag 482831

Belt (61)

$56.99

$

Usually ships in 2-12 days

0

24

Scag 483189

Pulley, 3-1/2" V-Groove

$46.99

$

In Stock, only 1 left!

0

25

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

26

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

27

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4"

Note: Grade 8

$0.99

$

In Stock, Qty 9

0

28

Scag 04012-04

Set Screw

$0.99

$

In Stock, Qty 14

0

29

Scag 482298

Pulley, 4-3/4" Dia.

Note: (incl. #28)

$62.99

$

In Stock, only 4 left!

0

30

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

31

Scag 483034

Bearing Assembly

$38.99

$

In Stock, only 4 left!

0

32

Scag 483392

Decal, Blower

$

$

Not available

33

Scag 483391

Decal, Danger

$

$

Not available

34

Scag 484696

Decal, Grease Point

$

$

Not available

35

Scag 461342

Blower Housing Weldment w/Decals

$380.99

$

Usually ships in 2-12 days

0

36

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

37

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

38

Scag 451694

Fan Weldment, Narrow

$

$

Currently unavailable

39

Scag 421319

Cover, Blower Housing

$50.99

$

In Stock, only 1 left!

0

40

Scag 461387

Adapter w/Strap

$117.99

$

Usually ships in 2-12 days

0

41

Scag 48137-04

Rubber Strap

$9.99

$

In Stock, only 1 left!

0

42

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

42

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

42

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

43

Scag 48136-18

Clamp, 6-1/2"

$11.99

$

Usually ships in 2-12 days

0

44

Scag 48135-12

Hose, 6" x 56"

$220.99

$

Usually ships in 2-12 days

0

45

Scag 461682

Blower Mounting Frame w/ Decal

Note: (incl. #8, 54)

$232.99

$

Usually ships in 2-12 days

0

46

Scag 481522

Spring

$32.99

$

In Stock, only 1 left!

0

47

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

48

Scag 04062-05

Hair Pin

$4.99

$

Usually ships in 2-12 days

0

49

Scag 04067-10

Pin, Ring

$6.99

$

In Stock, only 3 left!

0

50

Scag 481547

Lanyard

$16.99

$

In Stock, only 1 left!

0

51

Scag 427331

Belt Cover

$15.99

$

Usually ships in 2-12 days

0

52

Scag 04001-04

Bolt, Hex Head 1/4-20 X 1-1/2"

$0.99

$

In Stock, Qty 16

0

53

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

54

Scag 481428

Grip

$4.49

$

Usually ships in 2-12 days

0

55

Scag 483393

Decal, Rotating Blades

$

$

Not available
