GC 2236 - Jonsered String Trimmer (2011-02) CYLINDER PISTON Parts Diagram

String Trimmer

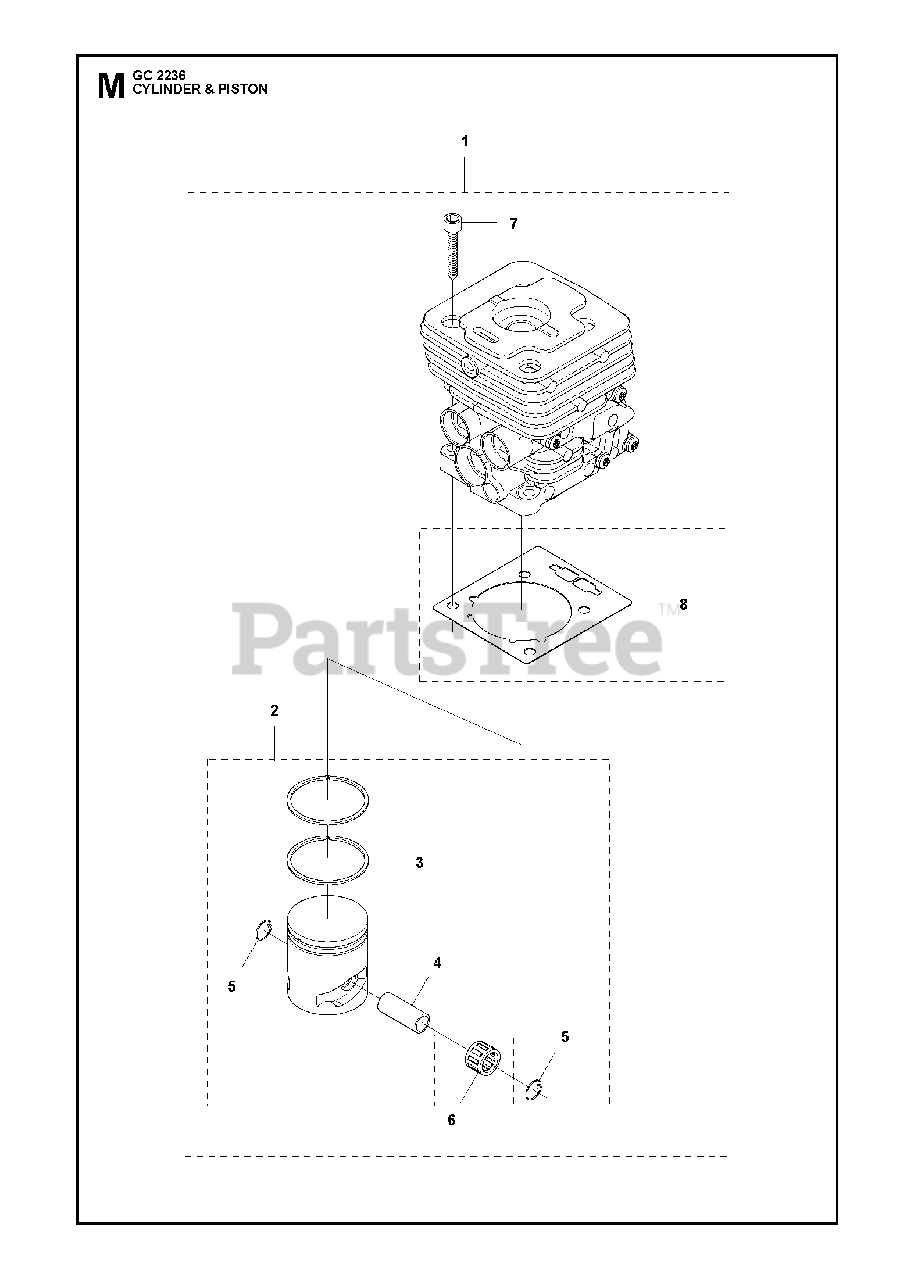

CYLINDER PISTON Parts Diagram

  • Title

1

Jonsered 544400601

%CYLINDER CPL
(Superseded to 574364301)

Note: 38 mm

$182.99

$

Usually ships in 3-10 days

0

2

Jonsered 537312802

PISTON CPL
(Superseded to 585998302)

Note: . 1

$121.99

$

Usually ships in 3-10 days

0

3

Jonsered 503289054

PISTON RING

Note: . 1 2

$27.99

$

Usually ships in 3-10 days

0

4

Jonsered 503289119

PISTON BOLT

Note: . 1 2

$

$

Not available

5

Jonsered 737441000

LOCKING RING

Note: . 1 2

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 503414101

SUPPORT BUSHING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

7

Jonsered 503200823

SCREW
(Superseded to 725533355)

Note: . 1

$6.49

$

In Stock, Qty 19

0

8

Jonsered 537333001

GASKET CYLINDER
(Superseded to 537333002)

$8.99

$

Usually ships in 3-10 days

0
