GC 2126 - Jonsered String Trimmer (2009-09) SHAFT HANDLE Parts Diagram

String Trimmer

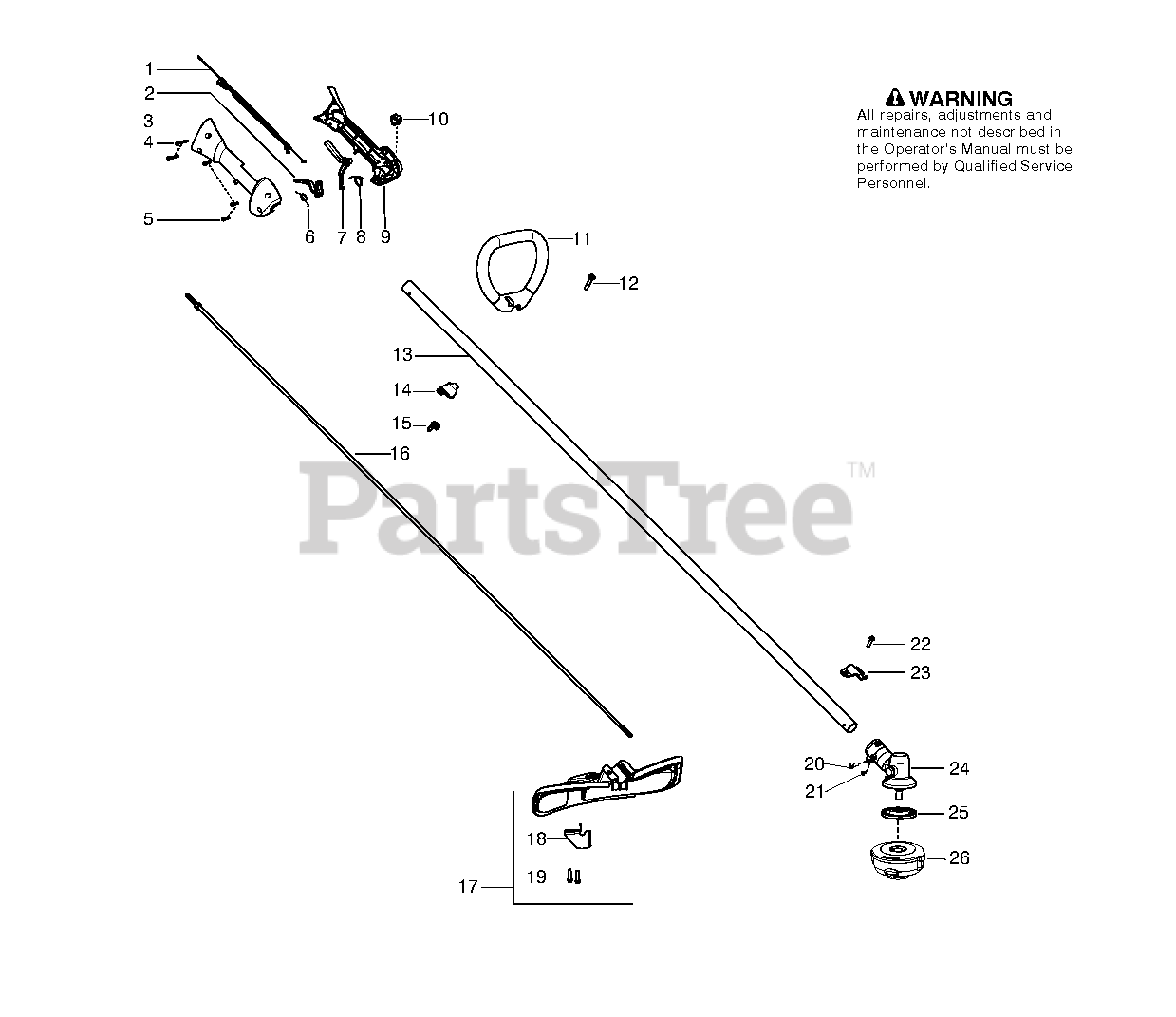

SHAFT HANDLE Parts Diagram

  • Title

1

Jonsered 545125301

No Description Available

$37.99

$

In Stock, only 4 left!

0

2

Jonsered 545072001

No Description Available

$

$

Not available

3

Jonsered 545024202

No Description Available

Note: RH

$

$

Not available

4

Jonsered 530016448

SCREW

$6.49

$

In Stock, Qty 7

0

5

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 4 left!

0

6

Jonsered 530016454

SPRING TRIGGER

$6.49

$

In Stock, Qty 18

0

7

Jonsered 545072102

No Description Available

$

$

Not available

8

Jonsered 545045601

SPRING LOCKOUT

$6.49

$

Usually ships in 3-10 days

0

9

Jonsered 545071801

No Description Available

Note: LH

$

$

Not available

10

Jonsered 545030601

KIT SWITCH
(Superseded to 545049301)

Note: KIT-SWITCH

$10.99

$

In Stock, Qty 11

0

11

Jonsered 545074201

HANDLE ASSIST

$21.99

$

Usually ships in 3-10 days

0

12

Jonsered 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

13

Jonsered 545180807

KIT DRIVESHAFT SST

Note: . 20 21 23 24

$72.99

$

Usually ships in 3-10 days

0

14

Jonsered 530059185

CLAMP ASSIST HANDLE

$6.49

$

In Stock, only 1 left!

0

15

Jonsered 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$

$

Not available

16

Jonsered 545007507

FLEXSHAFT 57"

$34.99

$

In Stock, only 1 left!

0

17

Jonsered 545081703

KIT SHIELD

Note: . 18 19 22

$34.99

$

Usually ships in 3-10 days

0

18

Jonsered 530052286

LINE CUTTER

$

$

Not available

19

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 19

0

20

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

21

Jonsered 545003902

SCREW

$4.99

$

In Stock, Qty 7

0

22

Jonsered 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

23

Jonsered 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, only 2 left!

0

24

Jonsered 530096295

ASSY GEARBOX

$80.99

$

In Stock, only 4 left!

0

25

Jonsered 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0

26

Jonsered 537338302

T25 10MM LH TRIMMER HEAD
(Superseded to 537338306)

$31.99

$

In Stock, Qty 12

0
