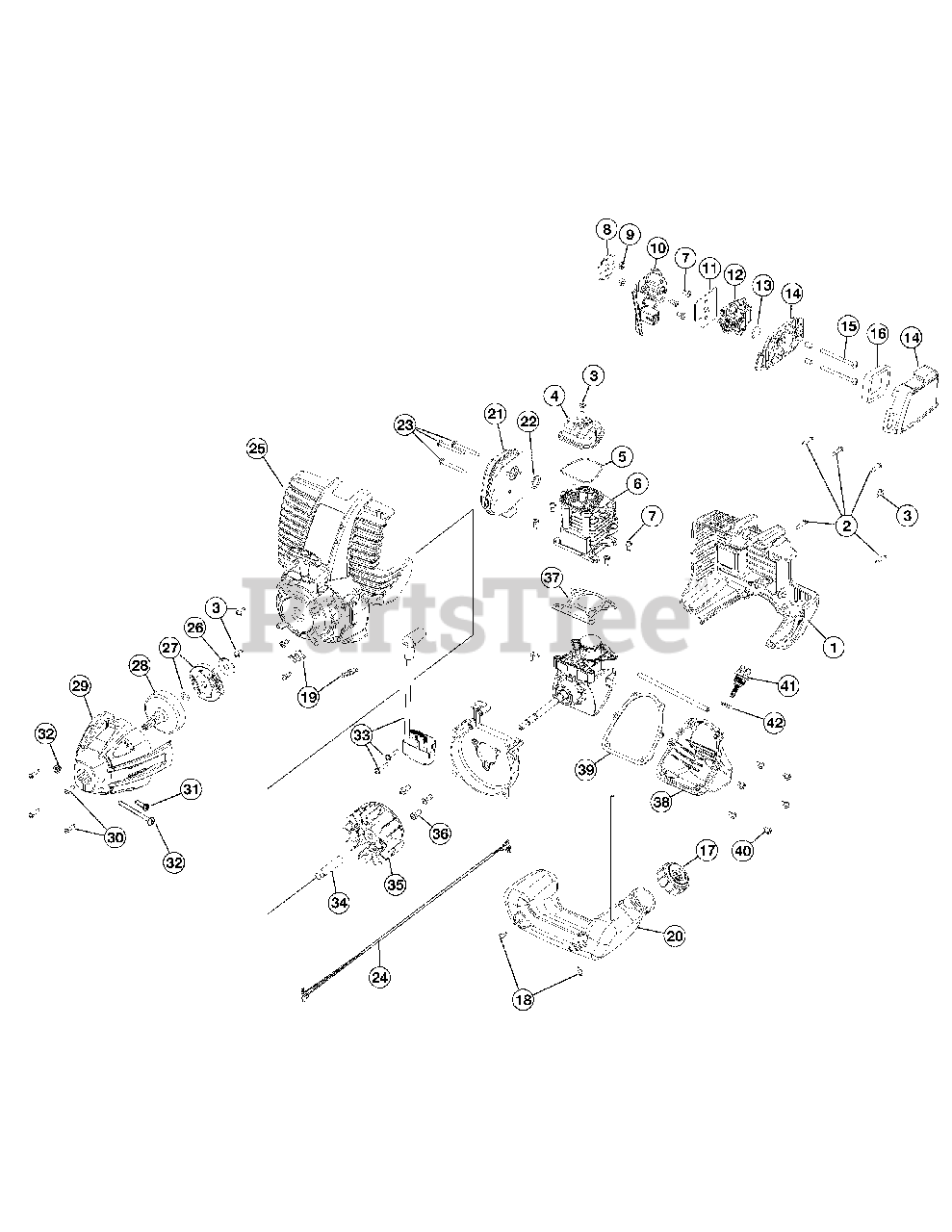

GC-145 (21BK145G912) - Cub Cadet Garden Cultivator (2010) Engine Assembly Parts Diagram

Garden Cultivator

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05998

Engine Cover

$24.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 753-05209

Valve Cover

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 721-04132

Valve Cover Gasket

$9.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05438

Cylinder Assembly (Incl. Ref No. 5, 7 & 37)

$114.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

8

Cub Cadet 753-05247

Insulator Gasket

$

$

Not available

9

Cub Cadet 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-05452

Insulator (Incl. Ref No. 11)

$17.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05439

Carburetor Gasket

$

$

Not available

12

Cub Cadet 753-1225

Carburetor w/Primer

$71.99

$

In Stock, Qty 13

0

13

Cub Cadet 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 753-05995

Air Filter Cover Assembly (Incl. Ref No. 16)
(Superseded to 753-06020)

$9.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-04517

Air Filter Mounting Screw

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 753-05996

Air Filter

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

18

Cub Cadet 791-181930

Screw

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 791-182366

Clip Nut

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-05443

Fuel Tank Assembly (Incl. Ref No. 17)

$

$

Not available

21

Cub Cadet 753-05997

Muffler Assembly (Incl. Ref No. 22 & 23)

$

$

Not available

22

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 9

0

23

Cub Cadet 710-04487

Muffler Mounting Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

24

Cub Cadet 753-05785

Lead Wire

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 753-06273

Starter Housing Assembly (Incl. Ref No. 3)

$28.99

$

In Stock, only 2 left!

0

26

Cub Cadet 9162-1

Washer

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet 753-1238

Clutch Assembly

$45.99

$

In Stock, Qty 13

0

28

Cub Cadet 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

29

Cub Cadet 753-05446

Clutch Cover Assembly (Incl. Ref No. 30-32)

$

$

Not available

30

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 753-04466

Anti-Rotation Screw

$

$

Not available

32

Cub Cadet 753-04291

Clamping Screw Assembly

$

$

Not available

33

Cub Cadet 753-05243

Ignition Module Assembly
(Superseded to 753-05301)

$113.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-04434

Spacer

$6.99

$

In Stock, Qty 14

0

35

Cub Cadet 753-05240

Flywheel

$76.99

$

In Stock, only 2 left!

0

36

Cub Cadet 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 791-182374

Cylinder Gasket

$

$

Not available

38

Cub Cadet 791-182377

Oil Pan (Incl. Ref No. 39 & 40)

$

$

Not available

39

Cub Cadet 791-181018

Oil Pan Gasket

$

$

Not available

40

Cub Cadet 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

41

Cub Cadet 791-182378

Dipstick Assembly (Incl. Ref No. 42)

$10.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 791-182290

O-Ring

$4.99

$

In Stock, Qty 9

0

43

Cub Cadet 791-182651

Rope Guide w/Cap

$

$

Not available

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

Note: Not Shown

$7.49

$

In Stock, Qty 6

0

Cub Cadet 753-05450

Shortblock Assembly

Note: Not Shown (Incl. Ref No. 3-7 & 32-42)

$305.99

$

Usually ships in 3-6 days

0
